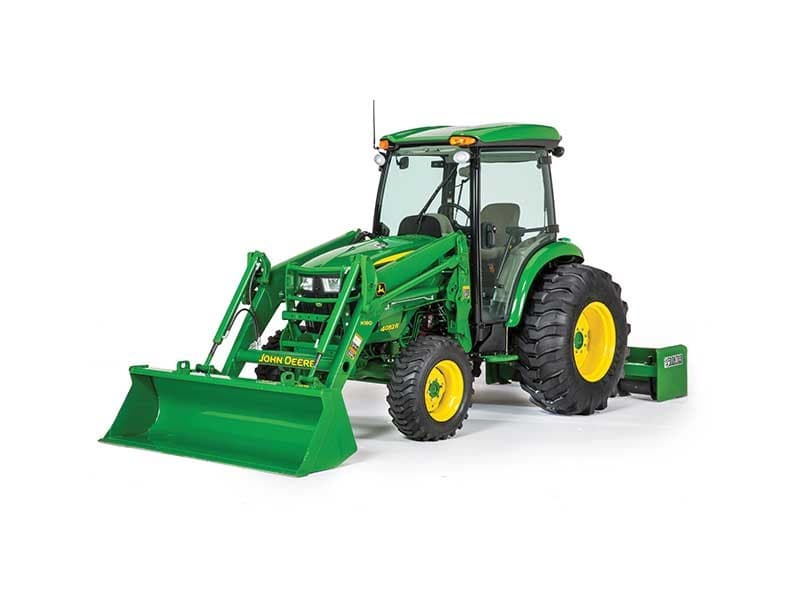

John Deere 4049M

Last Updated: June 2024

Overview

The John Deere 4049M is a compact utility tractor known for its versatility and power. This model features a 4x4 MFWD 4WD chassis, providing excellent traction for various ground conditions. It is equipped with a durable Yanmar 4TNV84T turbocharged diesel engine, which has a 121.7 cubic inch displacement and produces 49 horsepower at 2600 RPM. Available with either a 12-speed power shuttle transmission or an eHydro hydrostatic transmission, it offers flexibility for different operational needs. The tractor's liquid-cooled engine ensures it runs efficiently even under demanding use. With a power steering system, the John Deere 4049M allows for smooth operation and easy handling. The 73-inch wheelbase contributes to the stability of the tractor, while its weight of 3770 lbs provides a solid foundation for various attachments and tasks. The utility tractor is offered with different tire options for agricultural or lawn and turf applications, making it a versatile choice for a range of tasks. Height measurements vary depending on whether the tractor is equipped with ROPS or a cab. With an open center hydraulic system, this tractor is designed to accommodate a variety of implements, enhancing its functionality in different working environments.
Show more...

Key Specifications

Category: Utility

Power Output: 49

Transmission: Power shuttle, Hydrostatic

Drive Type: 4WD

Operating Weight: 3770

Fuel Type: Diesel

John Deere 4049M vs. Similar Tractors

Power Output
Average
Greater than 47% of similar tractors.
Operating Weight
Average
Greater than 33% of similar tractors.

Technical Specifications

Engine

Manufacturer
Yanmar
Model
4TNV84T
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
121.7
Bore (in)
3.31
Stroke (in)
3.54
Rated RPM
2600
Power Output (hp)
49

Transmission

Type
Power shuttle, Hydrostatic
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
130.6
Width (in)
-
Height (in)
100.2 (ROPS), 97.4 (cab)
Operating Weight (lb)
3770

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag, Lawn/Turf
Manufacture - End Year
-
Hitch Type
Category 3
Hitch Category
I
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
