John Deere 4030

Last Updated: June 2024

Overview

The John Deere 4030 is a versatile row-crop tractor that was produced between 1973 and 1977 in Waterloo, Iowa. It is known for its robust design and various engine and transmission configurations to suit diverse farming needs. The tractor could be fitted with either a 5.4L six-cylinder diesel engine or a 5.0L six-cylinder gasoline engine. Transmission options included an 8-speed partially synchronized or a 16-speed partial power shift setup. The 4030 was equipped with power steering, hydraulic wet disc brakes, and could have either an open operator station or a choice of cabins, including the four-post Roll-Gard ROPS or Sound-Gard cab. With a sturdy frame and powerful hydraulic system, the John Deere 4030 was suitable for various attachments and implements, making it a reliable asset for farming operations.

Key Specifications

Category: Row Crop

Power Output: 88

Transmission: Partially synchronized / Partial power shift

Drive Type: 2WD

Operating Weight: 9180

Fuel Type: Diesel / Gasoline (as both options are available)

Image Gallery

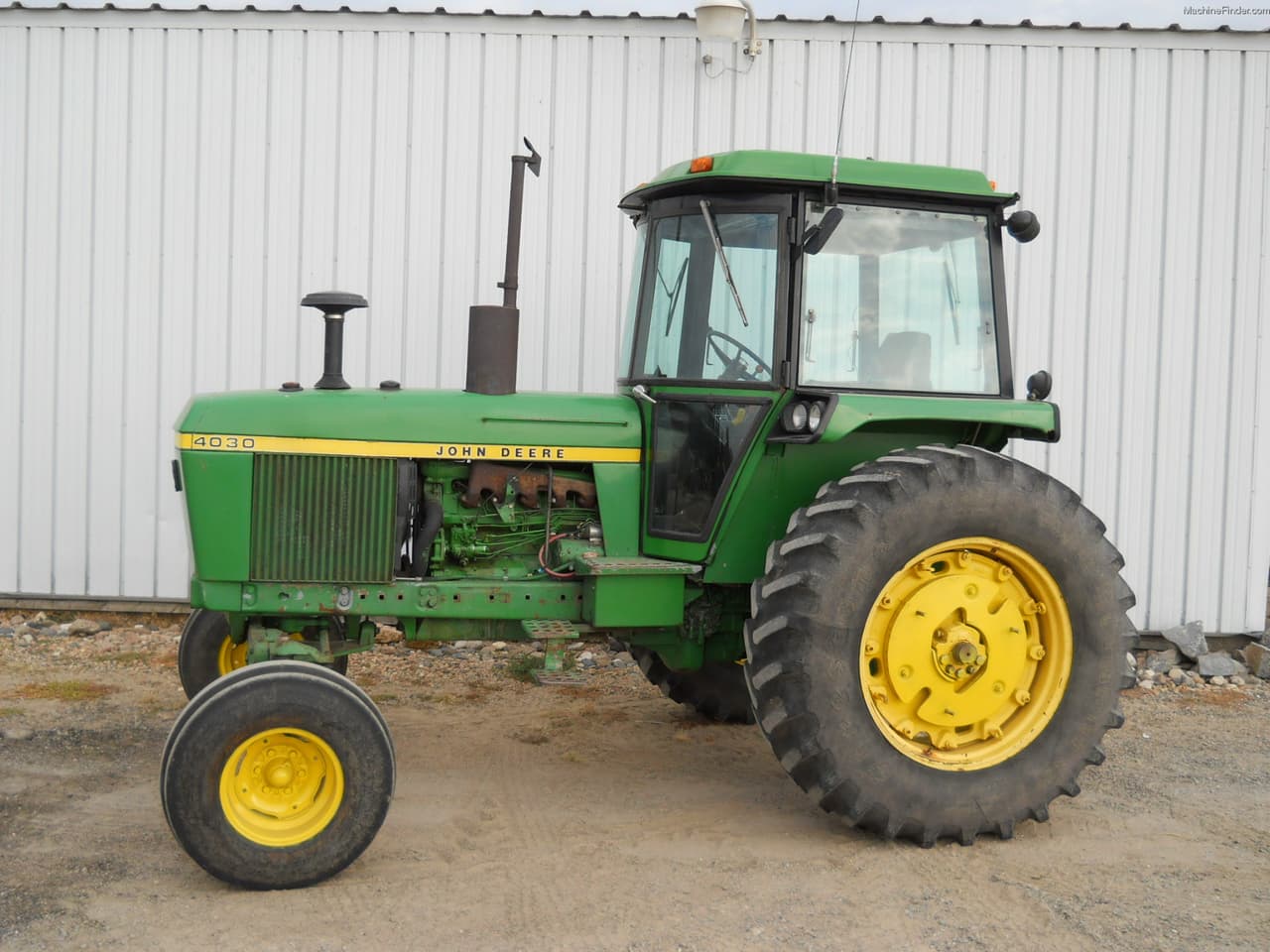

John Deere 4030 Tractor

John Deere 4030 vs. Similar Tractors

Power Output

Below Average

Greater than 14% of similar tractors.

Operating Weight

Average

Greater than 31% of similar tractors.

Technical Specifications

Engine

Manufacturer: John Deere
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel / Gasoline (as both options are available)
Induction Type: -
Cylinders: 6
Displacement (ci): 329 / 303 (as both diesel and gasoline options are available)
Bore (in): 4.02 / 3.86 (for diesel and gasoline respectively)
Stroke (in): 4.33
Rated RPM: 2500
Power Output (hp): 88

Transmission

Type: Partially synchronized / Partial power shift
Forward Gears: 8 / 16 (assuming the presence of two transmission options based on the data)
Reverse Gears: 2 / 6 (assuming the presence of two transmission options based on the data)
Total Gears: -

Dimensions

Length (in): 154.4
Width (in): -
Height (in): 107.7 (highest point, assuming the cab height)
Operating Weight (lb): 9180

Power Take-Off (PTO)

PTO Type: Independent
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): 1000
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Power
Coolant Capacity (qts): 22
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: 1977
Hitch Type: -
Hitch Category: Category 3 (implied by Rear Type II)
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: Open / Cab (as both options are mentioned)
Starter Type: Electric
Brake Type: Differential hydraulic wet disc
Hydraulic System Type: Closed center
