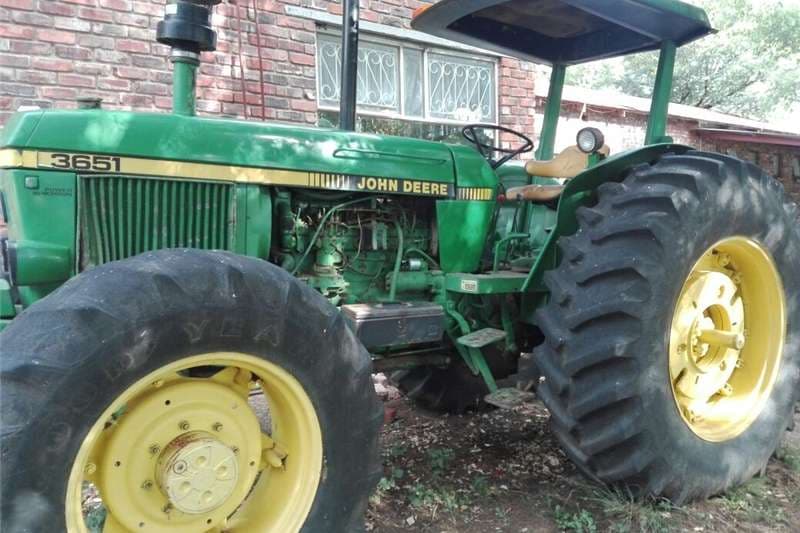

John Deere 3651

Last Updated: June 2024

Overview

The John Deere 3651 is a utility tractor that offers a powerful solution for a variety of agricultural tasks. Its heart is a robust 354 cubic inch, 6-cylinder liquid-cooled diesel ADE engine that produces a solid 110 horsepower, ensuring strong performance in various conditions. The tractor is set up with a four-wheel drive (4x4 MFWD 4WD) chassis providing excellent traction on diverse terrains. Its hydrostatic power steering ensures smooth maneuverability. This model is equipped with a 16-speed, Top-Shaft Synchronized transmission, providing a suitable range of speed options for different operations. The John Deere 3651 has substantial weight at 13,510 pounds, which contributes to its stability and capability in pulling and lifting tasks. As a utility tractor, it is designed to handle a broad spectrum of jobs from field work to loader work, demonstrating adaptability and power.
Show more...

Key Specifications

Category: Utility

Power Output: 110 hp

Transmission: Top-Shaft Synchronized

Drive Type: 4WD

Operating Weight: 13,510 lbs

Fuel Type: diesel

John Deere 3651 vs. Similar Tractors

Power Output
Above Average
Greater than 85% of similar tractors.
Operating Weight
Poor
Greater than 5% of similar tractors.

Technical Specifications

Engine

Manufacturer
John Deere
Model
ADE
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
diesel
Induction Type
-
Cylinders
6
Displacement (ci)
354 ci
Bore (in)
3.875
Stroke (in)
5
Rated RPM
2300
Power Output (hp)
110 hp

Transmission

Type
Top-Shaft Synchronized
Forward Gears
16
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
13,510 lbs

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric Starter
Brake Type
-
Hydraulic System Type
-
