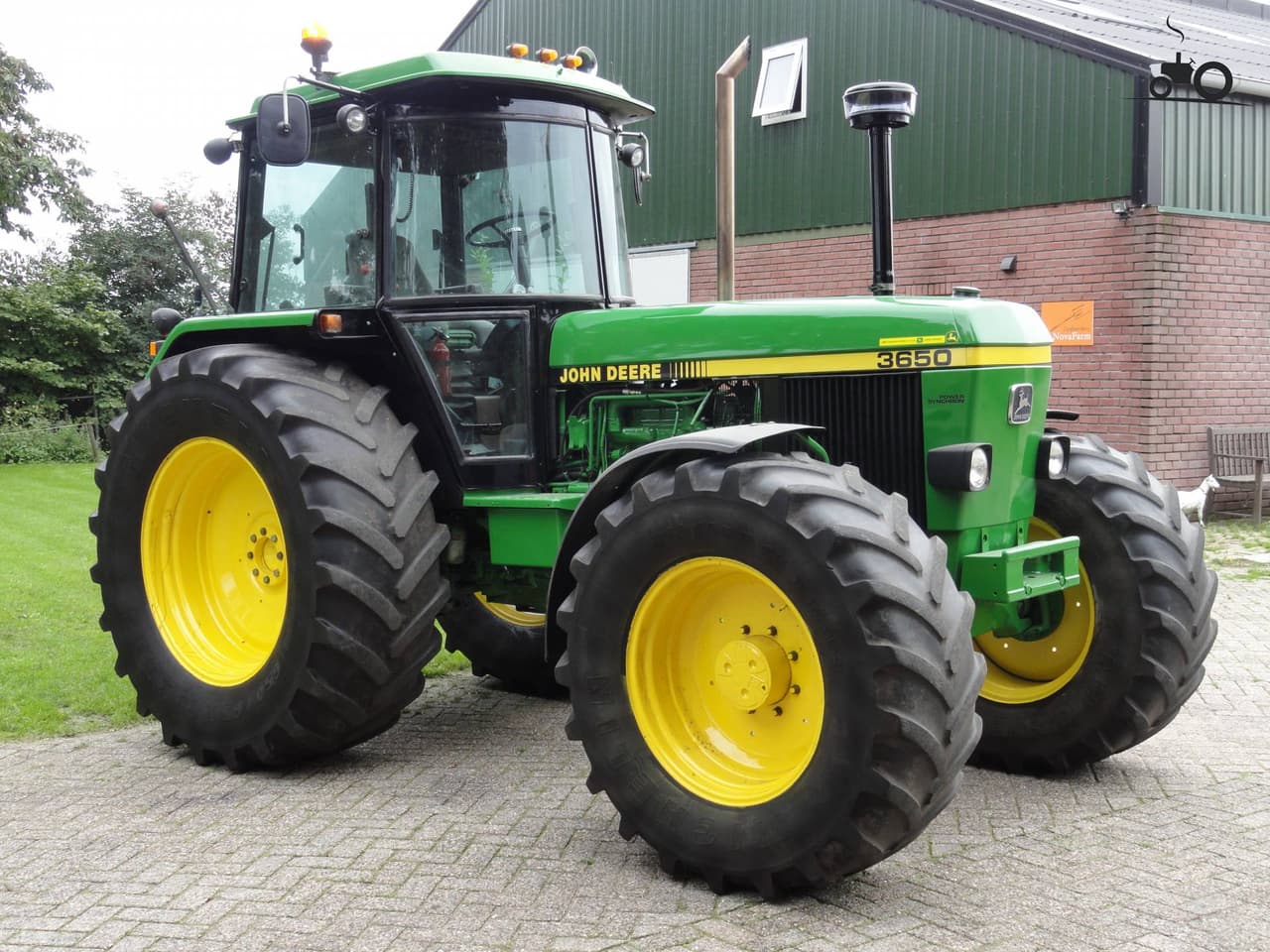

John Deere 3650

Last Updated: June 2024

Overview

The John Deere 3650 is a utility tractor equipped with a powerful 359 ci, 6-cylinder, turbocharged diesel engine that produces 114.4 horsepower. Designed for various tasks, this model is defined by its 4x4 MFWD 4WD chassis, providing excellent traction for operations on different terrains. The tractor features a hydrostatic power steering system for ease of handling and a Power Synchron transmission with 16 forward and 8 reverse gears, giving the operator the flexibility to choose the optimal speed for various tasks. With a 101.8-inch wheelbase, the tractor has good stability, and the substantial operating weight of 13,510 lbs ensures it can handle heavy-duty applications. The 3650 model has a liquid-cooled engine with a rated RPM of 2400, it uses a 12-volt starter system, and has coolant and oil capacities of 20.1 qts and 13.21 qts, respectively. Although specific details such as the hitch lift capacity and PTO specs are not provided, the hydraulic system is described as a closed center constant pressure type, indicating its suitability for performing with hydraulic implements.
Show more...

Key Specifications

Category: Utility

Power Output: 114.4

Transmission: Power Synchron

Drive Type: 4WD

Operating Weight: 13510

Fuel Type: Diesel

John Deere 3650 vs. Similar Tractors

Power Output
Above Average
Greater than 86% of similar tractors.
Operating Weight
Average
Greater than 67% of similar tractors.

Technical Specifications

Engine

Manufacturer
John Deere
Model
6359TL007
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
359
Bore (in)
4.193
Stroke (in)
4.331
Rated RPM
2400
Power Output (hp)
114.4

Transmission

Type
Power Synchron
Forward Gears
16
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
192.9
Width (in)
89.37
Height (in)
113.4
Operating Weight (lb)
13510

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
20.1
Front Tire Diameter (in)
24
Front Tire Width (in)
16.9
Rear Tire Diameter (in)
38
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
Three-Point Hitch
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
Closed center constant pressure
