John Deere 3640

Last Updated: June 2024

Overview

The John Deere 3640 is a utility tractor, featuring a 4-wheel drive chassis with MFWD. It has a power steering system and is equipped with a 16-speed partial power shift transmission. The John Deere 3640 operates on a 6-cylinder, liquid-cooled, direct-injection diesel engine with a displacement of 359 cubic inches, delivering a gross power of 117 hp at 2400 RPM. It has a hefty operating weight of 12,929 pounds, accommodating demanding tasks on the field. The three-point hitch and hydraulic system further enhance its capabilities, allowing use of various attachments for diverse agricultural needs. Its durability and performance, along with the comfort of a cab operator station, make it a valuable workhorse for farmers.

Key Specifications

Category: Utility

Power Output: 117

Transmission: Partial power shift

Drive Type: 4WD

Operating Weight: 12929

Fuel Type: Diesel

Image Gallery

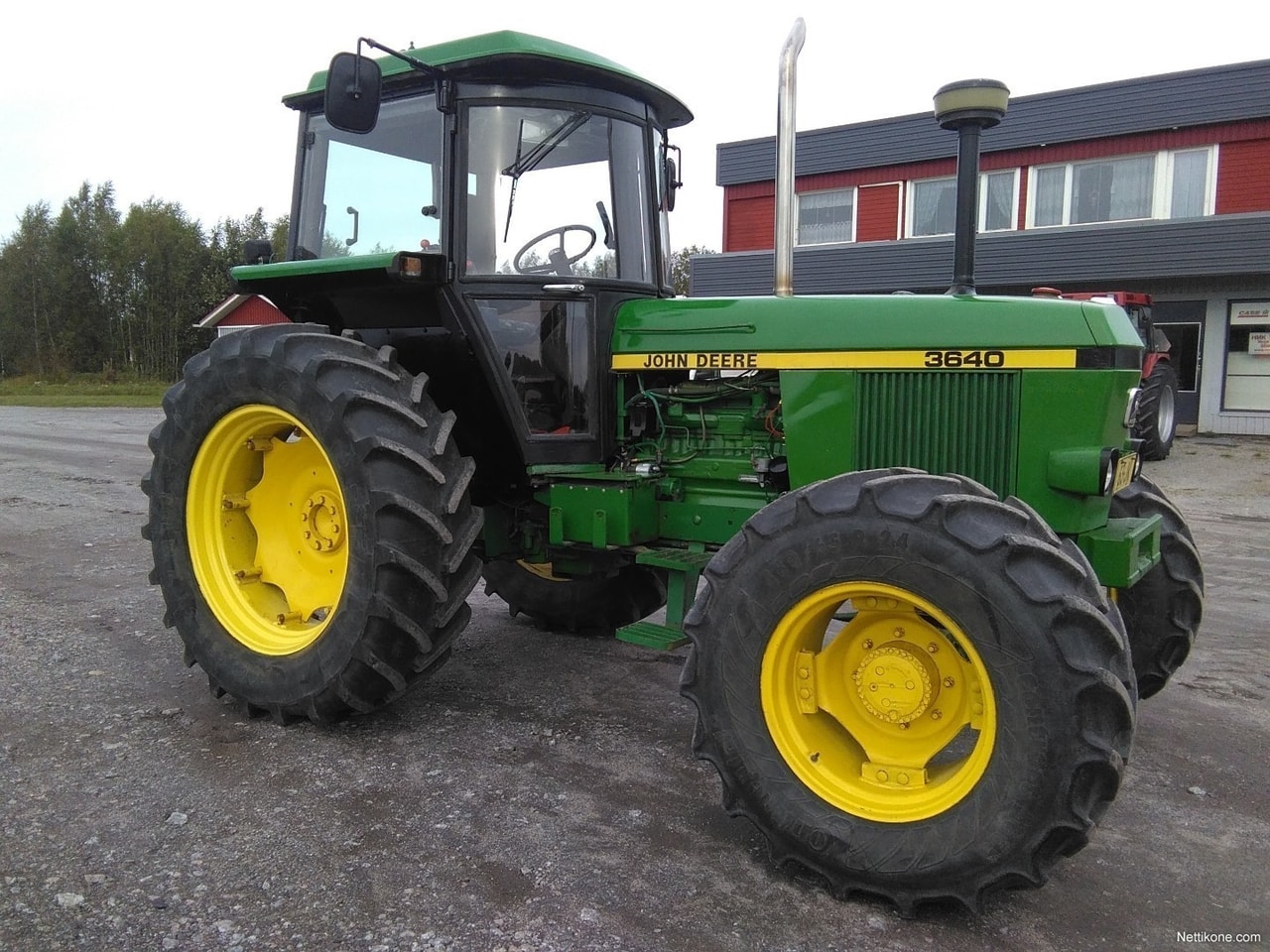

John Deere 3640 Tractor

John Deere 3640 vs. Similar Tractors

Power Output

Above Average

Greater than 87% of similar tractors.

Hitch Capacity

Excellent

Greater than 91% of similar tractors.

Operating Weight

Average

Greater than 66% of similar tractors.

Technical Specifications

Engine

Manufacturer: John Deere
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Direct injection
Cylinders: 6
Displacement (ci): 359
Bore (in): 4.19
Stroke (in): 4.33
Rated RPM: 2400
Power Output (hp): 117

Transmission

Type: Partial power shift
Forward Gears: 16
Reverse Gears: 8
Total Gears: -

Dimensions

Length (in): 189
Width (in): 85
Height (in): 111 (cab), 117 (exhaust), the taller height should be used
Operating Weight (lb): 12929

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Power
Coolant Capacity (qts): 20.1
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: -
Hitch Type: Three-point hitch (implied by Rear Type: II/III)
Hitch Category: Category 3
Hitch Position: Rear
Hitch Capacity (lb): 17680 lbs (max capacity assumed to be related to lift capacity; confirmation needed)
Operator Station Type: Cab
Starter Type: 12 volt electric starter (implied from Engine - Starter volts)
Brake Type: -
Hydraulic System Type: Closed center constant pressure
