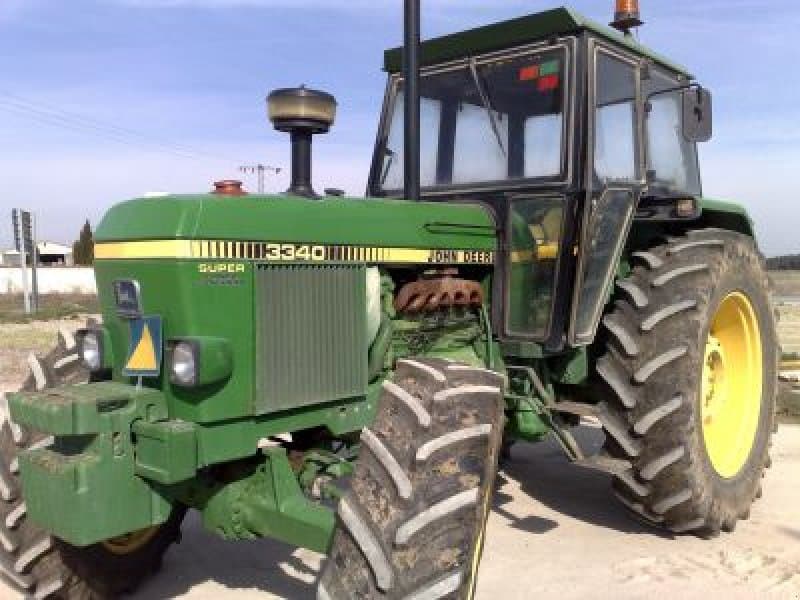

John Deere 3340

Last Updated: June 2024

Overview

The John Deere 3340 is a utility tractor that was produced from 1980 to 1987. Depending on the specific configuration, it could be equipped with either two-wheel drive (2WD) or four-wheel drive (4WD). It features a turbocharged six-cylinder diesel engine manufactured by John Deere, producing 110 hp. The liquid-cooled inline engine has a displacement of 359 cubic inches with a 4.17-inch bore and a 4.33-inch stroke. This tractor comes with power steering, wet disc brakes, and the option of a four-post ROPS or the Sound-Gard cab. The transmission includes 16 forward gears and 8 reverse gears. The tractor also features an independent power take-off (PTO) with speeds of 540 and 1,000 rpm. The tractor's chassis allows for different tire configurations and the hitch system is a Category 2.
Show more...

Key Specifications

Category: Utility

Power Output: 110

Drive Type: 2WD / 4WD

Fuel Type: Diesel

John Deere 3340 vs. Similar Tractors

Power Output
Above Average
Greater than 85% of similar tractors.

Technical Specifications

Engine

Manufacturer
John Deere
Model
John Deere
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
359
Bore (in)
4.17
Stroke (in)
4.33
Rated RPM
-
Power Output (hp)
110

Transmission

Type
-
Forward Gears
16
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
-

Power Take-Off (PTO)

PTO Type
Independent
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
1,000
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD or 4x4 MFWD 4WD
Drive Type
2WD / 4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
1987
Hitch Type
-
Hitch Category
Category 2
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Four-post ROPS or Sound-Gard cab (optional)
Starter Type
Electric
Brake Type
Wet disc
Hydraulic System Type
-
