John Deere 3320

Last Updated: June 2024

Overview

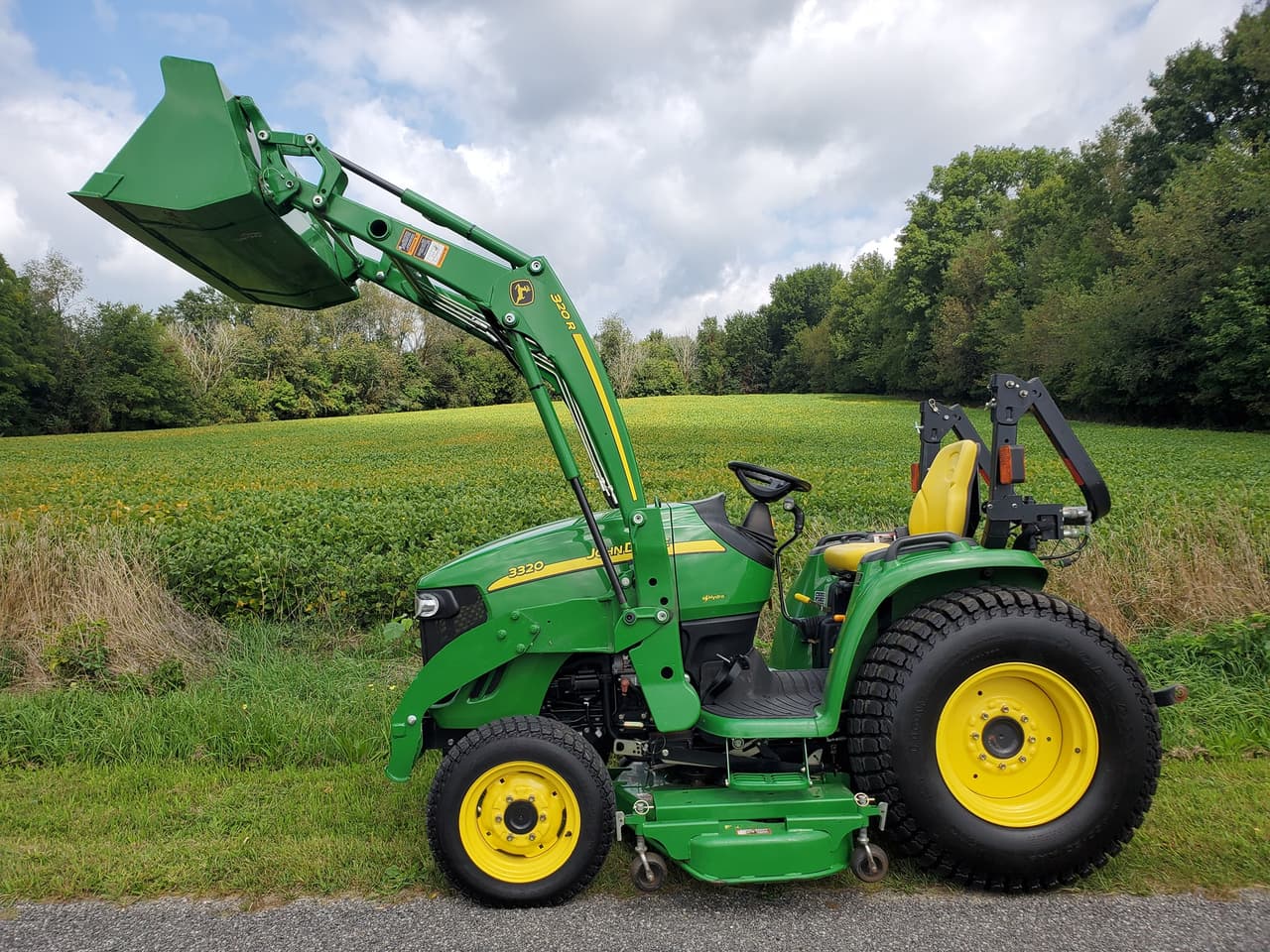

The John Deere 3320 is a 4WD compact utility tractor from the 3000 Twenty series, produced between 2005 to 2013 in Augusta, Georgia, USA. This tractor is powered by a 1.6 L Yanmar 3TNV88 three-cylinder diesel engine offering 32.5 horsepower at 2600 rpm and a torque of 73.8 ft-lb at 1560 rpm. It features a 12-speed partially synchronized transmission with a power shuttle or a choice of two hydrostatic transmissions with infinite (3-range) forward and reverse gears. The tractor has a coolant capacity of 5.6 quarts for the ROPS model and 7.4 quarts for the cab model. The chassis is built for durability with 4WD capabilities and power steering for easy handling. Standard wet disc brakes provide reliable stopping power. The 3320 offers versatile tire options, a two-post foldable ROPS or optional cab, and various attachments for a wide range of tasks. The John Deere 3320 is designed to be a powerful and efficient workhorse for a variety of utility tasks in a compact frame.
Show more...

Key Specifications

Category: Utility

Power Output: 32.5

Transmission: Partially synchronized with power shuttle / Hydrostatic

Drive Type: MFWD

Operating Weight: ROPS: 2900 Cab: 3570

Fuel Type: Diesel

John Deere 3320 vs. Similar Tractors

Power Output
Below Average
Greater than 27% of similar tractors.
Hitch Capacity
Average
Greater than 42% of similar tractors.
Operating Weight
Above Average
Greater than 84% of similar tractors.

Technical Specifications

Engine

Manufacturer
Yanmar
Model
3TNV88
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
3
Displacement (ci)
99.1
Bore (in)
3.46
Stroke (in)
3.54
Rated RPM
2600
Power Output (hp)
32.5

Transmission

Type
Partially synchronized with power shuttle / Hydrostatic
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
120.1
Width (in)
52.4
Height (in)
ROPS: 92.9 Cab: 89.4
Operating Weight (lb)
ROPS: 2900 Cab: 3570

Power Take-Off (PTO)

PTO Type
Independent / Optional Middle PTO
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
2100 (Middle PTO)
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
MFWD
Steering Type
Power
Coolant Capacity (qts)
ROPS: 5.6 Cab: 7.4
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
24
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag, Lawn/turf, Industrial
Manufacture - End Year
2013
Hitch Type
-
Hitch Category
I
Hitch Position
Rear
Hitch Capacity (lb)
2536
Operator Station Type
Two-post foldable ROPS or Cab (optional)
Starter Type
Electric
Brake Type
Wet disc
Hydraulic System Type
Open center
