John Deere 3310

Last Updated: June 2024

Overview

The John Deere 3310 is a utility tractor that was manufactured by Renault for John Deere in Le Mans, France from 1998 to 2002. It is equipped with a 4.5 L four-cylinder diesel engine and features both synchronized and power shift transmission variants, with 20 forward and reverse gears. The John Deere 3310 includes a hydrostatic power steering system, a wet disc braking system, and a cab with heating for operator comfort. With a lift capacity between 8,890 and 11,270 pounds on its category II three-point hitch and a 540 rpm PTO, this tractor is designed for a variety of tasks. Additionally, it has a fuel capacity of 30.4 US gallons and operates with a 12V electric starter. The tractor's wet disc brakes, position and draft control, and pump flow of 13.7 gallons per minute further enhance its capabilities for various agricultural operations.

Key Specifications

Category: Utility

Power Output: 75

Transmission: Synchronized / Power shift

Drive Type: MFWD 4WD

Operating Weight: 7550

Fuel Type: Diesel

Image Gallery

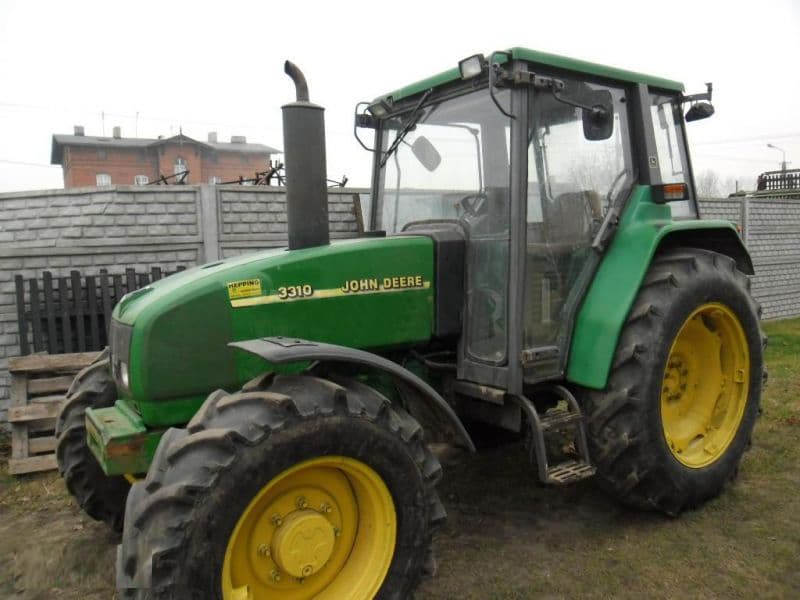

John Deere 3310 Tractor

John Deere 3310 vs. Similar Tractors

Power Output

Average

Greater than 68% of similar tractors.

Hitch Capacity

Excellent

Greater than 99% of similar tractors.

Operating Weight

Average

Greater than 55% of similar tractors.

Technical Specifications

Engine

Manufacturer: John Deere
Model: John Deere
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally aspirated
Cylinders: 4
Displacement (ci): 276
Bore (in): 4.19
Stroke (in): 5
Rated RPM: 2050
Power Output (hp): 75

Transmission

Type: Synchronized / Power shift
Forward Gears: 20
Reverse Gears: 20
Total Gears: -

Dimensions

Length (in): 159.8
Width (in): -
Height (in): 100
Operating Weight (lb): 7550

Power Take-Off (PTO)

PTO Type: Optional Transmission or Live PTO
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: MFWD 4WD
Steering Type: Hydrostatic power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural (Ag)
Manufacture - End Year: 2002
Hitch Type: Three-point
Hitch Category: II
Hitch Position: Rear
Hitch Capacity (lb): 8890 / 11270
Operator Station Type: Cab
Starter Type: Electric
Brake Type: Wet disc
Hydraulic System Type: -
