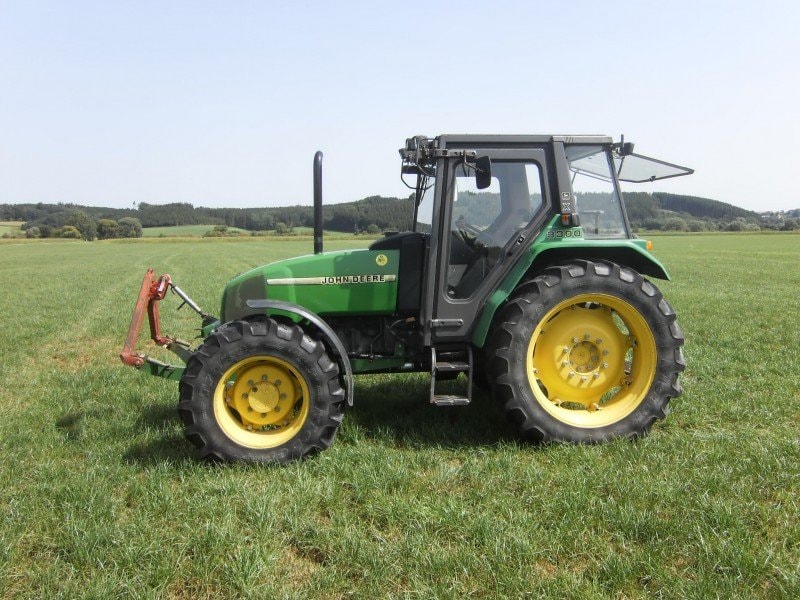

John Deere 3300

Last Updated: June 2024

Overview

The John Deere 3300 is a versatile utility tractor designed and built by Renault for John Deere in Le Mans, France, from 1995 to 1998. Featuring both two-wheel drive (2WD) and optional four-wheel drive (4WD) configurations, it caters to various agricultural tasks. Equipped with a robust John Deere 4045D liquid-cooled diesel engine with a displacement of 276 cubic inches, it delivers 75 horsepower at 2050 RPM. The engine's natural aspiration provides reliable performance without the complexity of forced induction systems. Transmission options include a 10-speed synchronized shuttle, 20-speed synchronized shuttle with mechanical splitter, and a 20-speed twinshift two-speed power shift, allowing for adaptable speed control for different farming operations. This model is also fitted with power steering, wet disc brakes, and a sizable 115-liter fuel tank. It features a rear Category 2 hitch with a lift capacity ranging between 8,430 and 10,070 pounds, accommodating substantial implements. Options for the tractor include a basic or deluxe cab with a heater, presenting a comfortable operating environment in various weather conditions.
Show more...

Key Specifications

Category: Utility

Power Output: 75

Transmission: Synchronized shuttle; Synchronized shuttle with mechanical splitter; Two-speed power shift

Drive Type: 2WD and 4WD

Operating Weight: 7672

Fuel Type: Diesel

John Deere 3300 vs. Similar Tractors

Power Output
Average
Greater than 68% of similar tractors.
Hitch Capacity
Excellent
Greater than 99% of similar tractors.
Operating Weight
Average
Greater than 55% of similar tractors.

Technical Specifications

Engine

Manufacturer
John Deere
Model
4045D
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural aspirated
Cylinders
4
Displacement (ci)
276
Bore (in)
4.17
Stroke (in)
5
Rated RPM
2050
Power Output (hp)
75

Transmission

Type
Synchronized shuttle; Synchronized shuttle with mechanical splitter; Two-speed power shift
Forward Gears
10; 20
Reverse Gears
10; 20
Total Gears
-

Dimensions

Length (in)
-
Width (in)
72.8
Height (in)
97.6; 104.9
Operating Weight (lb)
7672

Power Take-Off (PTO)

PTO Type
Independent with mechanical (3300) or hydraulic (3300X) clutch
PTO Speed 1 (rpm)
540; 540E
PTO Speed 2 (rpm)
1000
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD or 4x4 MFWD
Drive Type
2WD and 4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 2
Hitch Position
-
Hitch Capacity (lb)
8430; 10070
Operator Station Type
Cab with heater; deluxe X cab (optional)
Starter Type
Electric
Brake Type
Wet disc
Hydraulic System Type
Open center
