John Deere 3203

Last Updated: June 2024

Overview

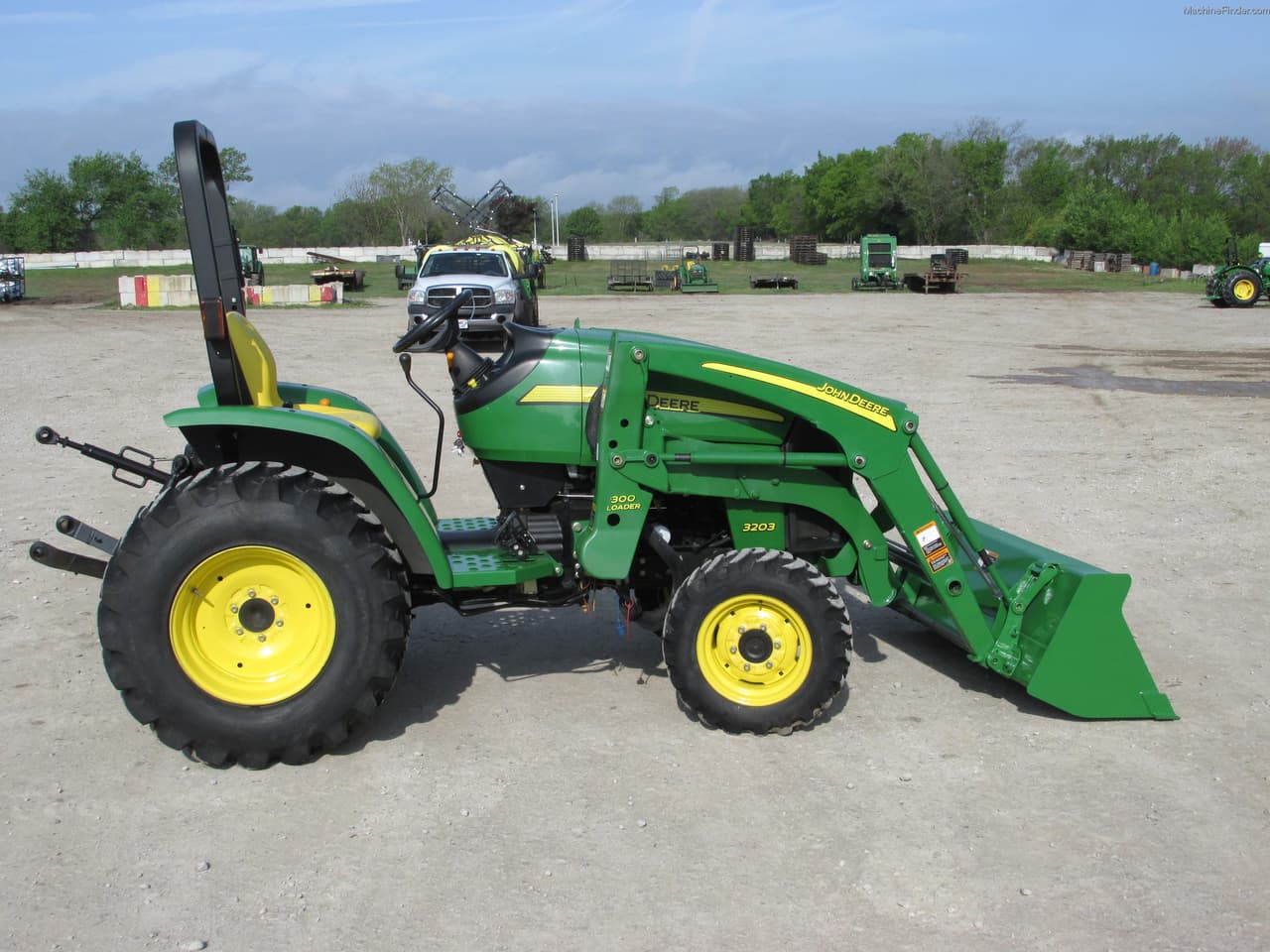

The John Deere 3203 is a robust and versatile compact utility tractor, manufactured by John Deere between 2006 and 2008. Designed for a variety of tasks, the JD 3203 combines power and efficiency in a compact size, making it a reliable workhorse for small acreage landowners. Equipped with a 32 horsepower Yanmar 3TNV84 liquid-cooled diesel engine, it offers substantial power for a wide range of utility tasks. This 4WD tractor features hydrostatic transmission with infinite forward and reverse gears, facilitating ease of use and precise speed control. The tractor supports a three-point hitch system for attaching a wide range of implements, and its independent PTO with a wet disc clutch provides reliable power transfer to the implements. Additional features like power steering, wet disc brakes, and an open operator station make the 3203 both comfortable and safe to operate. It’s a tractor designed to provide efficient performance in various general-purpose tasks, from mowing and landscaping to light soil work.
Show more...

Key Specifications

Category: Utility

Power Output: 32

Transmission: Hydrostatic

Drive Type: 4WD

Operating Weight: 2700

Fuel Type: Diesel

John Deere 3203 vs. Similar Tractors

Power Output
Below Average
Greater than 27% of similar tractors.
Hitch Capacity
Average
Greater than 37% of similar tractors.
Operating Weight
Below Average
Greater than 22% of similar tractors.

Technical Specifications

Engine

Manufacturer
Yanmar
Model
3TNV84
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural
Cylinders
3
Displacement (ci)
91.5
Bore (in)
3.31
Stroke (in)
3.54
Rated RPM
2800
Power Output (hp)
32

Transmission

Type
Hydrostatic
Forward Gears
Infinite (2-range)
Reverse Gears
Infinite (2-range)
Total Gears
-

Dimensions

Length (in)
120.1
Width (in)
68.9
Height (in)
82.7
Operating Weight (lb)
2700

Power Take-Off (PTO)

PTO Type
Independent with wet disc clutch
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
5.6
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
2008
Hitch Type
Three-Point Hitch
Hitch Category
I
Hitch Position
Rear
Hitch Capacity (lb)
2150
Operator Station Type
Open with two-post ROPS
Starter Type
Electric
Brake Type
Wet disc
Hydraulic System Type
Open center
