John Deere 320

Last Updated: June 2024

Overview

The John Deere 320 is a utility tractor, symbolizing a classic workhorse of its time. It features a 4x2 chassis and is powered by a 2-cylinder, 100.5 cubic inch, liquid-cooled, gasoline engine with a gear transmission offering 4 forward and 1 reverse gear. Running at a rated RPM of 1850, this model assures adherence to traditional John Deere reliability and performance standards. Its body dimensions exhibit practical design with a length of 119.25 inches and width of 55.5 inches, making it suitable for various agricultural tasks. Note that specifics such as PTO speeds, hitch capabilities, and tire dimensions, were not provided or identified during the analysis of the available data.

Key Specifications

Category: Utility

Transmission: Gear

Drive Type: 2WD (assuming based on Chassis 4x2)

Operating Weight: 2750

Fuel Type: Gasoline

Lift Capacity: Unknown

Image Gallery

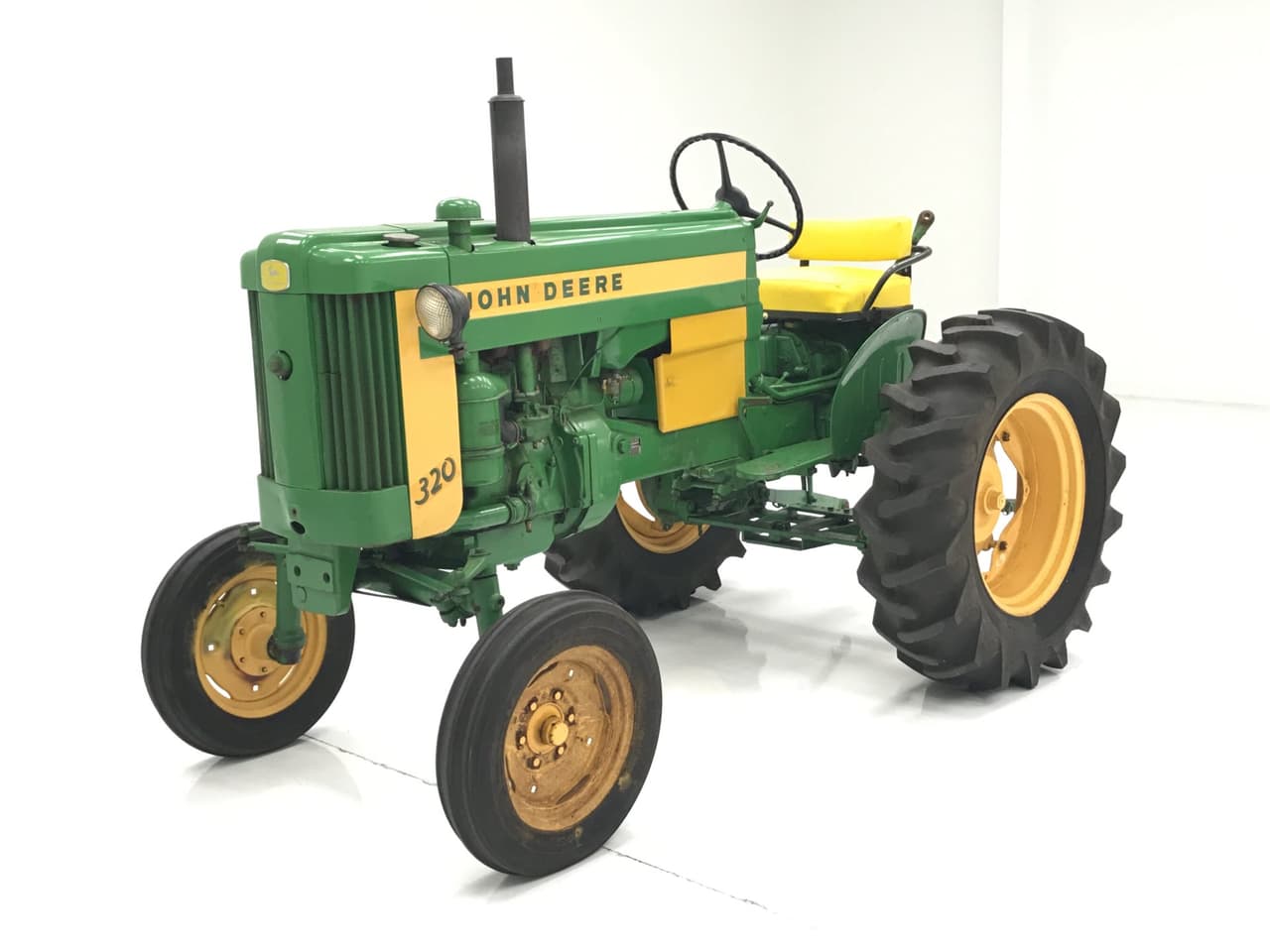

John Deere 320 Tractor

John Deere 320 vs. Similar Tractors

Operating Weight

Below Average

Greater than 22% of similar tractors.

Technical Specifications

Engine

Manufacturer: John Deere
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Gasoline
Induction Type: Naturally aspirated
Cylinders: 2
Displacement (ci): 100.5
Bore (in): 4
Stroke (in): 4
Rated RPM: 1850
Power Output (hp): -

Transmission

Type: Gear
Forward Gears: 4
Reverse Gears: 1
Total Gears: -

Dimensions

Length (in): 119.25 (taken from 320U which seems to be a variant of the Model 320)
Width (in): 55.5 (taken from 320U)
Height (in): 55.5 (height to exhaust for standard clearance; using non-U measurement)
Operating Weight (lb): 2750

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2
Drive Type: 2WD (assuming based on Chassis 4x2)
Steering Type: -
Coolant Capacity (qts): 14
Front Tire Diameter (in): Unknown (size given is not the diameter)
Front Tire Width (in): Unknown (size given is not the width)
Rear Tire Diameter (in): Unknown (size given is not the diameter)
Rear Tire Width (in): Unknown (size given is not the width)
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural (assuming based on "Ag front" & "Ag rear" tire details)
Manufacture - End Year: -
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): Unknown
Operator Station Type: -
Starter Type: -
Brake Type: -
Hydraulic System Type: -
