John Deere 3130

Last Updated: June 2024

Overview

The John Deere 3130 is a 2WD or 4WD utility tractor that was manufactured between 1973 and 1979 in Mannheim, Baden-Württemberg, Germany. It comes equipped with a 329 cubic inch six-cylinder diesel engine capable of producing 96.6 horsepower at 2500 RPM. With the possibility of being outfitted with an optional turbocharger for altitude compensation, this model shows versatility for different operational requirements. The tractor features power steering, wet disc brakes, and the option of an open operator station or a cab. It has a three-point hitch with a 7,450 lb lift capacity and an independent PTO with speeds of 540 or 1000 RPM. The hydraulic system is closed center with a 15-gallon capacity. This tractor could also be paired with the John Deere 148 loader, applicable for various tasks.

Key Specifications

Category: Utility

Power Output: 96.6

Transmission: Hi-Lo / Sliding gear

Drive Type: 2WD or optional MFWD 4WD

Operating Weight: 8200

Fuel Type: Diesel

Image Gallery

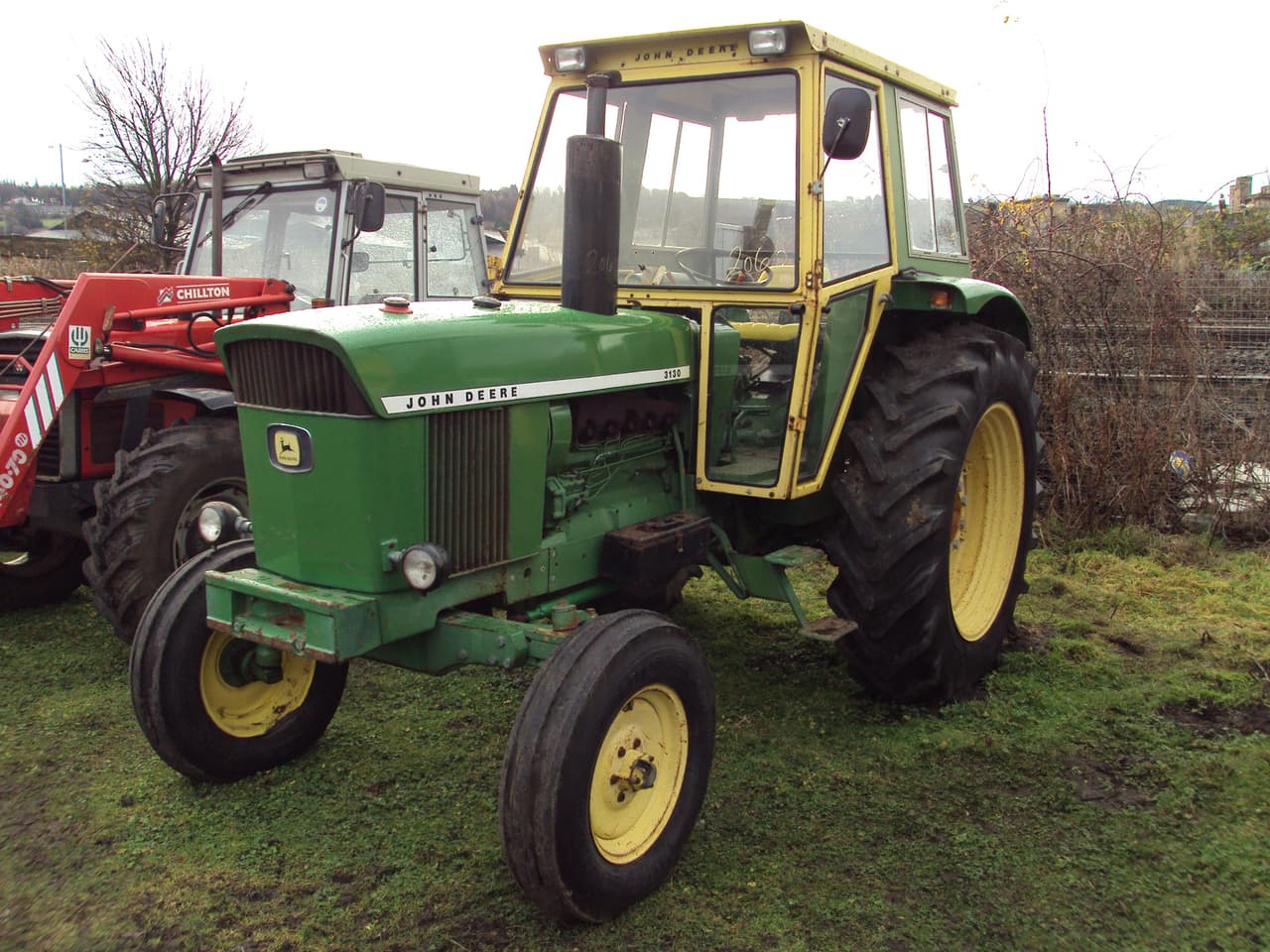

John Deere 3130 Tractor

John Deere 3130 vs. Similar Tractors

Power Output

Above Average

Greater than 80% of similar tractors.

Hitch Capacity

Below Average

Greater than 12% of similar tractors.

Operating Weight

Average

Greater than 57% of similar tractors.

Technical Specifications

Engine

Manufacturer: John Deere
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally aspirated or optional turbocharged
Cylinders: 6
Displacement (ci): 329
Bore (in): 4.02
Stroke (in): 4.33
Rated RPM: 2500
Power Output (hp): 96.6

Transmission

Type: Hi-Lo / Sliding gear
Forward Gears: 12 (Hi-Lo), 6 (Sliding gear)
Reverse Gears: 6 (Hi-Lo), 3 (Sliding gear)
Total Gears: -

Dimensions

Length (in): 157.5
Width (in): 81.8
Height (in): 103.5
Operating Weight (lb): 8200

Power Take-Off (PTO)

PTO Type: Independent
PTO Speed 1 (rpm): 540/1000
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD or optional MFWD 4WD
Steering Type: Power
Coolant Capacity (qts): 20
Front Tire Diameter (in): Unknown (but available sizes: 18, 20 inch for 2WD and 24 inch for 4WD)
Front Tire Width (in): Unknown (based on available front tire: 7.50)
Rear Tire Diameter (in): Unknown (but available sizes: 34, 38 inch for 2WD and 38 inch for 4WD)
Rear Tire Width (in): Unknown (based on available rear tire: 18.4)
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: 1979
Hitch Type: Three-Point Hitch
Hitch Category: II
Hitch Position: Rear
Hitch Capacity (lb): 7,450 lbs
Operator Station Type: Open operator station or Cab (optional)
Starter Type: Electric
Brake Type: Wet disc
Hydraulic System Type: Closed center
