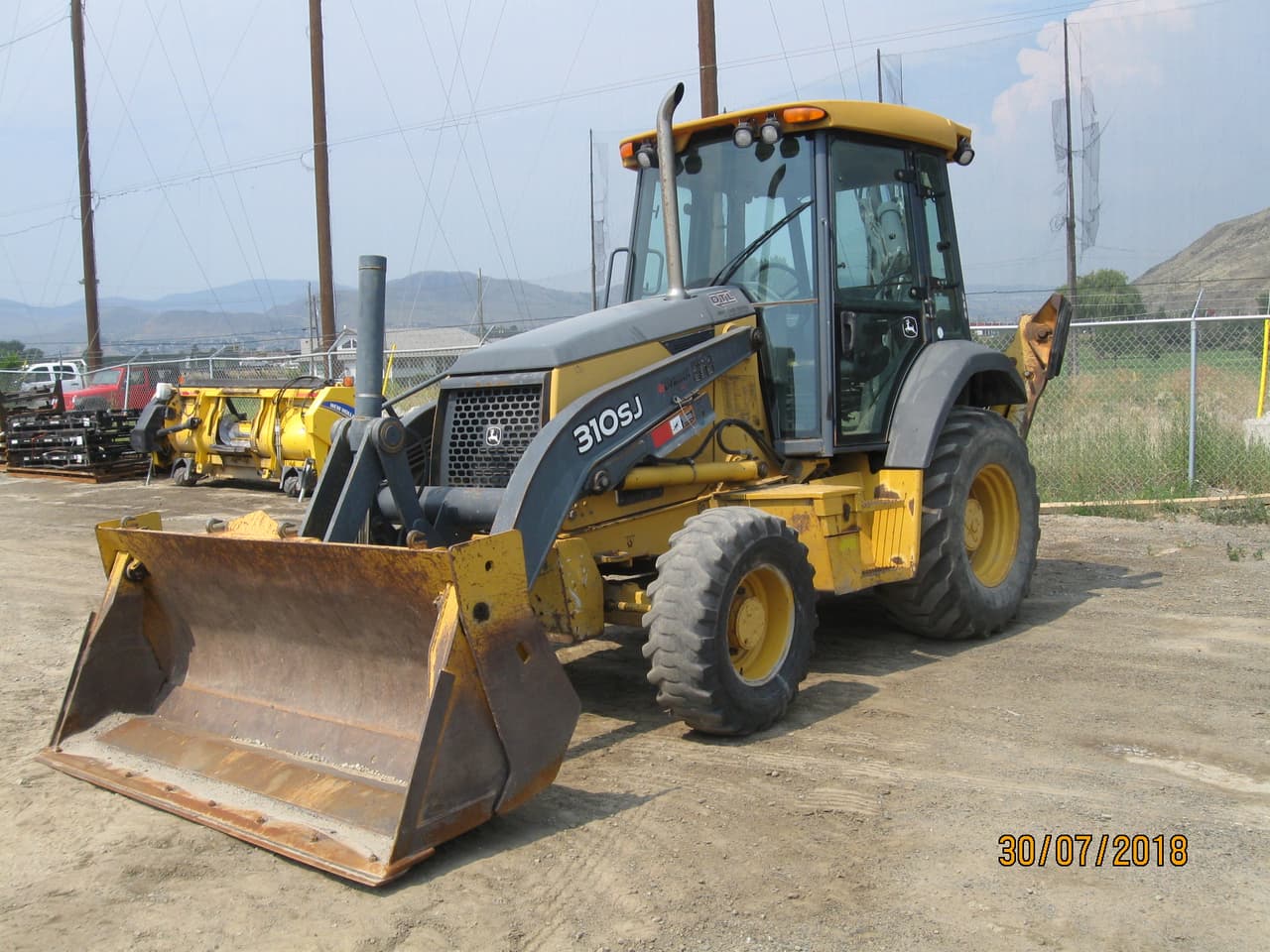

John Deere 310SJ

Last Updated: June 2024

Overview

The John Deere 310SJ is a backhoe loader tractor that can operate in either 2WD or 4WD mode. This versatility, combined with a robust 93 HP John Deere 4045T four-cylinder turbocharged diesel engine, makes the 310SJ a capable machine for a variety of tasks. The liquid-cooled engine's displacement is 276.0 cubic inches, and it operates at a rated 2000 RPM. It features a full powershift transmission with 4 forward gears and 3 reverse gears, hydrostatic power steering, and hydraulic wet disc brakes, enhancing the tractor's functionality. The presence of hydrostatic power steering facilitates easier handling and maneuvering. The tractor's considerable fuel tank capacity of 41 US gallons or 34.1 Imperial gallons ensures long operating hours without frequent refueling. Depending on the configuration, the operating weight varies between 14,505 lbs and 17,040 lbs, which suggests a sturdy and stable tractor, suited for heavy-duty operations. The John Deere 310SJ was manufactured from 2007 to 2017 and comes equipped with either a four-post ROPS/FOPS or a full cab, ensuring operator safety and comfort.
Show more...

Key Specifications

Category: Specialized, Backhoe Loader

Power Output: 93

Transmission: Full powershift

Drive Type: 2WD/4WD

Operating Weight: 14,505 (2WD with ROPS) / 17,040 (4WD with Cab)

Fuel Type: Diesel

John Deere 310SJ vs. Similar Tractors

Power Output
Excellent
Greater than 94% of similar tractors.

Technical Specifications

Engine

Manufacturer
John Deere
Model
4045T
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
276
Bore (in)
4.17
Stroke (in)
5
Rated RPM
2000
Power Output (hp)
93

Transmission

Type
Full powershift
Forward Gears
4
Reverse Gears
3
Total Gears
-

Dimensions

Length (in)
281.9
Width (in)
85.8
Height (in)
109.8
Operating Weight (lb)
14,505 (2WD with ROPS) / 17,040 (4WD with Cab)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD or 4x4 MFWD 4WD
Drive Type
2WD/4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
26
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Industrial
Manufacture - End Year
2017
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
ROPS or Cab
Starter Type
Electric
Brake Type
Hydraulic wet disc
Hydraulic System Type
Open center
