John Deere 310E

Last Updated: June 2024

Overview

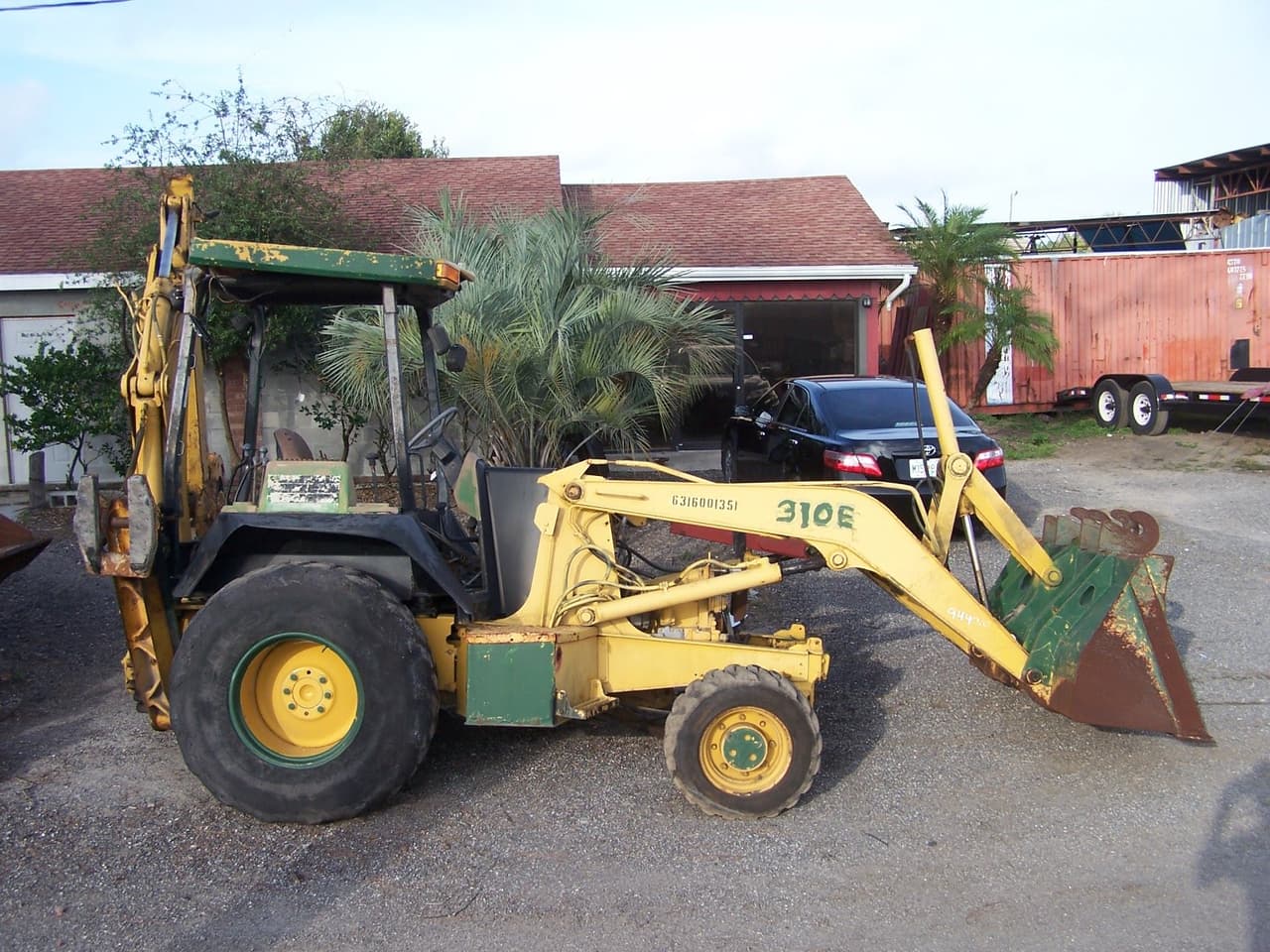

The John Deere 310E is a versatile backhoe loader tractor that was manufactured by John Deere from 1997 to 2001. Designed to meet a variety of tasks, the 310E is available in both 2WD (4x2) and 4WD (MFWD 4x4) configurations. The tractor is equipped with a choice of two 4.5 L (276.0 cu·in) diesel engines, either a naturally aspirated Deere 4045D or a turbocharged Deere 4045T, both having four cylinders and delivering 76 horsepower at 2,200 rpm. Its robust hydraulic system, hydrostatic power steering, and hydraulic wet disc brakes ensure that it handles tasks efficiently. Amenities such as optional cabin with heat and A/C provide additional comfort for the operator. Whether used for construction, farming, or other tasks, the durability and reliability of the 310E have stood the test of time.
Show more...

Key Specifications

Category: Specialized, Backhoe Loader

Power Output: 76

Drive Type: 2WD or 4WD

Operating Weight: 12,800

Fuel Type: Diesel

John Deere 310E vs. Similar Tractors

Power Output
Average
Greater than 68% of similar tractors.
Operating Weight
Below Average
Greater than 12% of similar tractors.

Technical Specifications

Engine

Manufacturer
John Deere
Model
4045D or 4045T
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated or Turbocharged
Cylinders
4
Displacement (ci)
276
Bore (in)
4.17
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
76

Transmission

Type
-
Forward Gears
4
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
278.7
Width (in)
85.8
Height (in)
-
Operating Weight (lb)
12,800

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD or 4x4 MFWD 4WD
Drive Type
2WD or 4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
17
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Industrial
Manufacture - End Year
2001
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
ROPS or Cab
Starter Type
Electric
Brake Type
Hydraulic wet disc
Hydraulic System Type
Open center
