John Deere 3100

Last Updated: June 2024

Overview

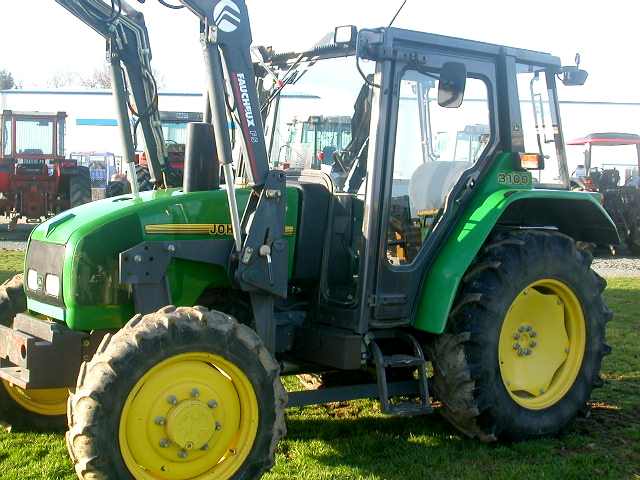

The John Deere 3100 is a 4x2 2WD utility tractor known for its durability and reliability. It harnesses a 179 ci, liquid-cooled, 3-cylinder, 55 hp John Deere 3029D diesel engine which operates at a rated RPM of 2280. The powertrain is equipped with a synchronized, two-speed power shift transmission providing 20 forward and reverse gears, facilitating versatile operations across a variety of tasks. Its power steering and open center hydraulic system ensure smooth operation while the tractor's chassis and cab's dimensions underline its utility-based design intent. The "Twinshift" transmission indicates a dual gear range functionality allowing for easier transition between tasks requiring different speeds. With a shipping and operational weight of 6548 lbs and a height of 95.4 inches with the cab, the 3100 is built to offer the substantial presence required for rigorous farm activities. However, additional details such as PTO type and speeds, tire sizes, lengths, and additional features remain unspecified.
Show more...

Key Specifications

Category: Utility

Power Output: 55 (ECE R24)

Transmission: Synchronized, Two-Speed Power Shift

Drive Type: 2WD

Operating Weight: 6548 (shipping weight)

Fuel Type: Diesel

John Deere 3100 vs. Similar Tractors

Power Output
Excellent
Greater than 98% of similar tractors.
Operating Weight
Average
Greater than 50% of similar tractors.

Technical Specifications

Engine

Manufacturer
John Deere
Model
3029D
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
3
Displacement (ci)
179
Bore (in)
4.19
Stroke (in)
4.33
Rated RPM
2280
Power Output (hp)
55 (ECE R24)

Transmission

Type
Synchronized, Two-Speed Power Shift
Forward Gears
20
Reverse Gears
20
Total Gears
-

Dimensions

Length (in)
-
Width (in)
73.2
Height (in)
95.4 (cab)
Operating Weight (lb)
6548 (shipping weight)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Category II
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Cab (implied due to height spec)
Starter Type
Electric (12 volts)
Brake Type
-
Hydraulic System Type
Open center
