John Deere 3050

Last Updated: June 2024

Overview

The John Deere 3050 utility tractor was introduced as a part of the 3050 series and was manufactured in Mannheim, Baden-Württemberg, Germany from 1986 until an unknown end year. This model came with either a 2WD or a 4WD (MFWD) chassis, featured a powerful 90.7 hp diesel engine, and offered a 16-speed two-speed power shift transmission. The 3050 was equipped with a spacious and comfortable SG2 cab, optional air-conditioning, power steering, and hydraulic wet disc brakes, enhancing the tractor's operational efficiency and safety. It had competitive hitch lift capacities, handling 8900 lbs for the 2WD version and 10800 lbs for the 4WD version. With a closed-center constant pressure hydraulic system and hydraulic wet disc PTO clutch, this tractor remained a reliable asset for field and utility work.

Key Specifications

Category: Utility

Power Output: 90.7

Transmission: Two-speed power shift

Drive Type: 4WD or 2WD

Operating Weight: 9149 (2WD) or 10714 (4WD)

Fuel Type: Diesel

Image Gallery

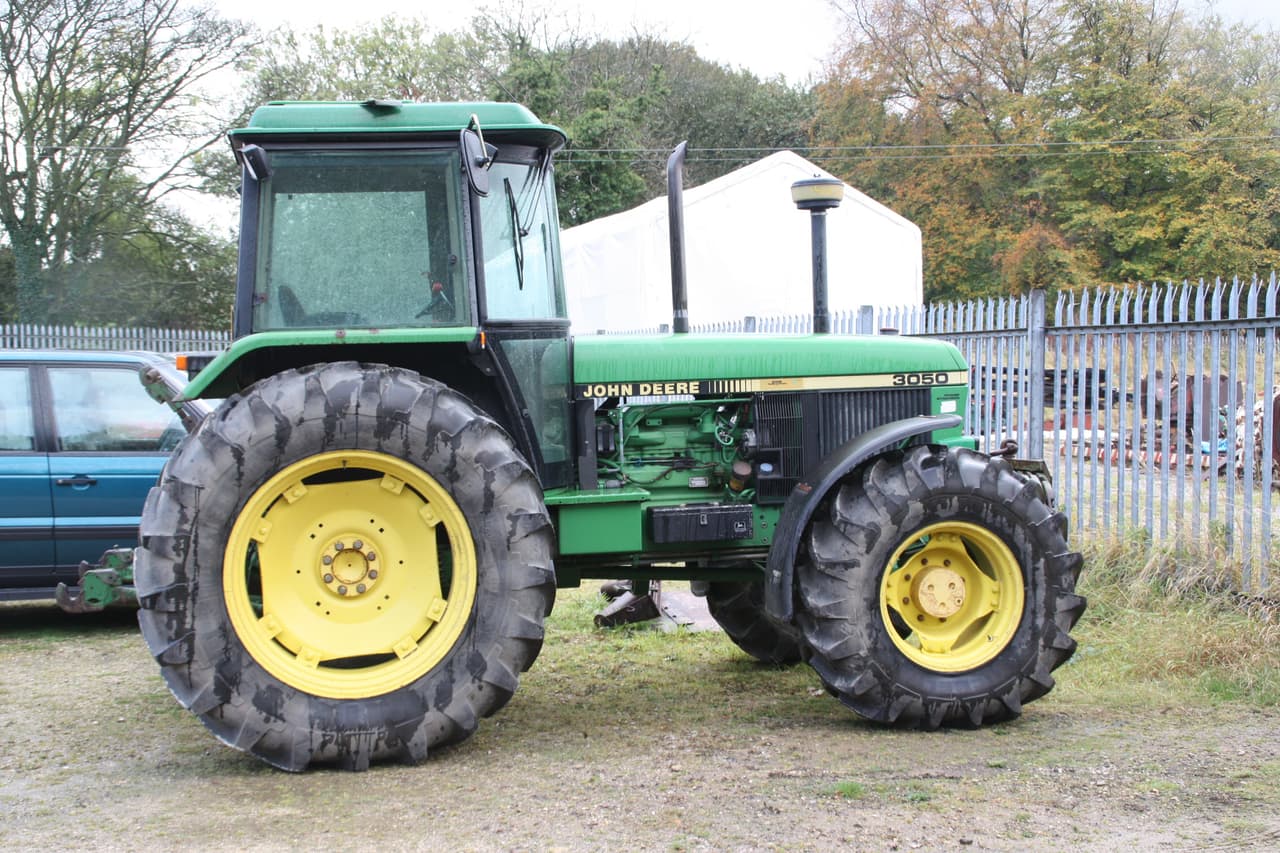

John Deere 3050 Tractor

John Deere 3050 vs. Similar Tractors

Power Output

Above Average

Greater than 77% of similar tractors.

Hitch Capacity

Excellent

Greater than 100% of similar tractors.

Operating Weight

Excellent

Greater than 99% of similar tractors.

Technical Specifications

Engine

Manufacturer: John Deere
Model: 6359 DL008
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Natural aspirated
Cylinders: 6
Displacement (ci): 359 ci
Bore (in): 4.21
Stroke (in): 4.33
Rated RPM: 2300
Power Output (hp): 90.7

Transmission

Type: Two-speed power shift
Forward Gears: 16
Reverse Gears: 8
Total Gears: -

Dimensions

Length (in): 184.1
Width (in): 85.4
Height (in): 113.4
Operating Weight (lb): 9149 (2WD) or 10714 (4WD)

Power Take-Off (PTO)

PTO Type: Independent with hydraulic wet disc clutch
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): 1000
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD or 4x2 2WD
Drive Type: 4WD or 2WD
Steering Type: Power
Coolant Capacity (qts): 20.08
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: Three-Point Hitch
Hitch Category: II/IIIN
Hitch Position: Rear
Hitch Capacity (lb): 8900 (2WD) or 10800 (4WD)
Operator Station Type: SG2 Cab (standard with optional air-conditioning)
Starter Type: Electric
Brake Type: Hydraulic wet disc
Hydraulic System Type: Closed-center constant pressure
