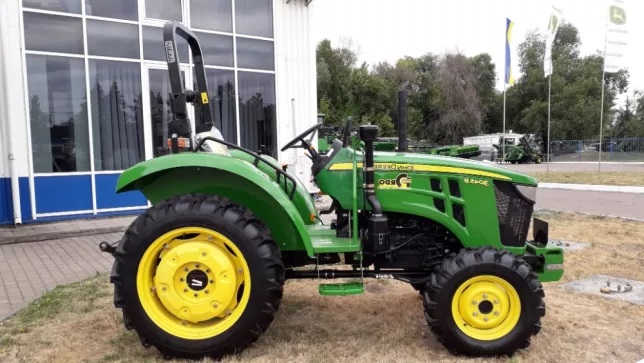

John Deere 3045B

Last Updated: June 2024

Overview

The John Deere 3045B is a 4-wheel drive compact utility tractor that packs a punch with a 45 hp (33.6 kW) power output. It achieves this performance with a 4-cylinder Xinchai A495BT-5 diesel engine, which boasts an impressive 181.7 cubic inches displacement and operates at a peak of 2300 rpm rated speed. The tractor is equipped with a 12-speed mechanical shuttle transmission, providing ample range for various tasks. Its 4x4 MFWD 4WD chassis is designed to handle rugged terrain with ease, while power steering aids manageability and control. With a substantial operating weight of 4409 pounds and equipped to accommodate various tire options, this tractor maintains a robust ground presence and stability. Its open center hydraulic system ensures efficient flow and power for attachments and implements. This model meets Tier II emissions standards, reflecting John Deere's commitment to environmental responsibility without compromising on machine capability.
Show more...

Key Specifications

Category: Utility

Power Output: 45

Transmission: Mechanical shuttle

Drive Type: 4WD

Operating Weight: 4409

Fuel Type: Diesel

John Deere 3045B vs. Similar Tractors

Power Output
Average
Greater than 43% of similar tractors.
Operating Weight
Average
Greater than 40% of similar tractors.

Technical Specifications

Engine

Manufacturer
XinChai
Model
A495BT-5
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
8-valve
Fuel Type
Diesel
Induction Type
Direct injection
Cylinders
4
Displacement (ci)
181.7
Bore (in)
3.74
Stroke (in)
4.13
Rated RPM
2300
Power Output (hp)
45

Transmission

Type
Mechanical shuttle
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
140.6
Width (in)
69.7
Height (in)
95.3 (ROPS) / 82.7 (exhaust)
Operating Weight (lb)
4409

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
9.8
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
Category I
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
