John Deere 3038R

Last Updated: June 2024

Overview

The John Deere 3038R is a 4WD compact utility tractor from the 3R series, manufactured by John Deere. Powered by a 1.5 L Yanmar 3TNV84T turbocharged three-cylinder diesel engine, it delivers a power output of 37.1 HP. For transmission, it offers a choice between a hydrostatic transmission and a power shuttle transmission, with the former providing infinite (3-range) forward and reverse gears and the latter delivering 12 forward and 12 reverse gears. The 3038R features a hydrostatic power steering system, wet disc brakes for reliable stopping power, and the option for ROPS or a cab operator station. The three-point hitch system allows for a range of attachments, with a lift capacity of up to 2540 lbs. Additional details include a maximum total flow of 13.9 gallons per minute for the hydraulics, and the tractor can be fitted with various types of tires including agricultural, lawn/turf, and industrial.

Key Specifications

Category: Utility

Power Output: 37.1 HP

Transmission: Hydrostatic / Power shuttle

Drive Type: MFWD

Operating Weight: 3086 (ROPS) / 3748 (Cab)

Fuel Type: Diesel

Image Gallery

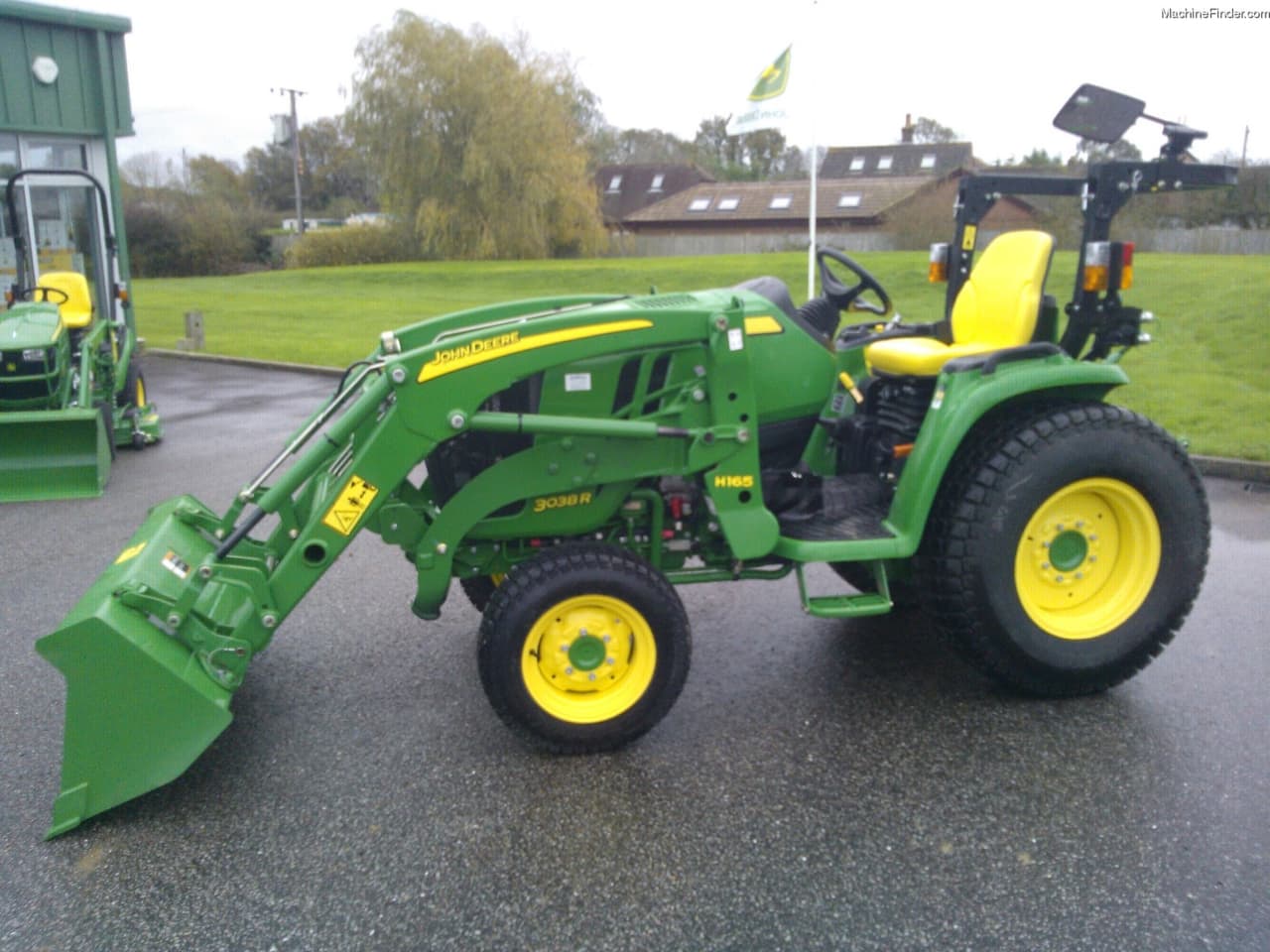

John Deere 3038R Tractor

John Deere 3038R vs. Similar Tractors

Power Output

Average

Greater than 33% of similar tractors.

Hitch Capacity

Average

Greater than 43% of similar tractors.

Operating Weight

Above Average

Greater than 84% of similar tractors.

Technical Specifications

Engine

Manufacturer: Yanmar
Model: 3TNV84T
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 3
Displacement (ci): 91.5 ci
Bore (in): 3.31 in
Stroke (in): 3.54 in
Rated RPM: 2600
Power Output (hp): 37.1 HP

Transmission

Type: Hydrostatic / Power shuttle
Forward Gears: Infinite (3-range) / 12
Reverse Gears: Infinite (3-range) / 12
Total Gears: -

Dimensions

Length (in): 127.2
Width (in): 52.1
Height (in): 92.9 (ROPS) / 89.7 (Cab)
Operating Weight (lb): 3086 (ROPS) / 3748 (Cab)

Power Take-Off (PTO)

PTO Type: Independent
PTO Speed 1 (rpm): 2100 (Front and Middle PTO)
PTO Speed 2 (rpm): 540 (Rear PTO)
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: MFWD
Steering Type: Power
Coolant Capacity (qts): 5.6 US qt (ROPS) / 7.4 US qt (Cab)
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag / Lawn/turf / Industrial
Manufacture - End Year: -
Hitch Type: Three-Point Hitch
Hitch Category: Category I and 0/I (for different lift capacity)
Hitch Position: -
Hitch Capacity (lb): 2540 lbs
Operator Station Type: Two-post folding ROPS / Cab (optional)
Starter Type: Electric
Brake Type: Wet disc
Hydraulic System Type: Open center
