John Deere 3030

Last Updated: June 2024

Overview

The John Deere 3030 is a row-crop tractor that was part of John Deere's '30 series. It features a 4x2 2WD chassis and is powered by a liquid-cooled, diesel-fueled engine with a displacement of 329 cubic inches, capable of delivering 93.8 horsepower. A distinctive aspect of the 3030 is its Hi-Lo transmission, offering 12 forward and 6 reverse gears, and the power steering system that enhances maneuverability. This model has a dry disc clutch and a closed center hydraulic system. The tractor was designed with both a ROPS and cab height configurations and has the flexibility to accommodate either setup. Engine efficiency is complemented by direct injection and an air cleaner system with dry elements. The 3030, known for its robust build and power, was designed to meet the varied demands of the field and farmyard tasks.

Key Specifications

Category: Row Crop

Power Output: 93.8

Transmission: Hi-Lo

Drive Type: 2WD

Operating Weight: Range from 7297 to 8069

Fuel Type: Diesel

Image Gallery

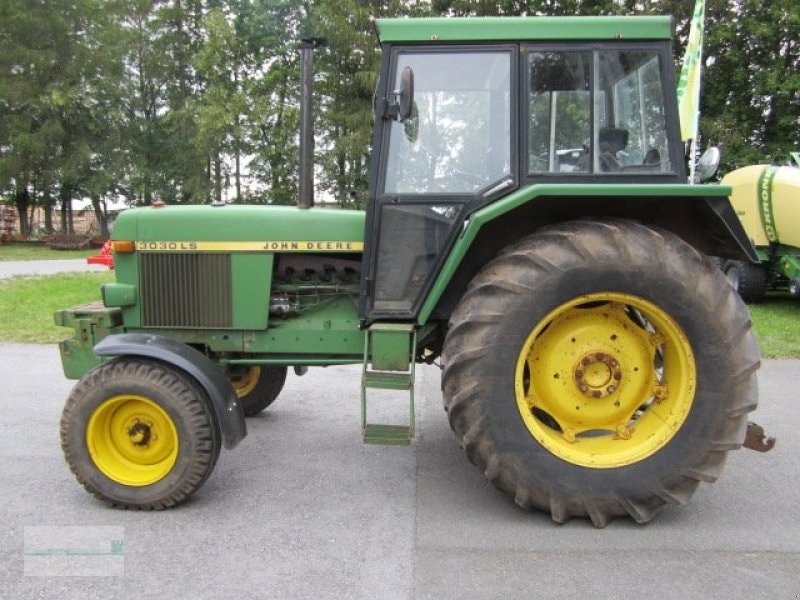

John Deere 3030 Tractor

John Deere 3030 vs. Similar Tractors

Power Output

Below Average

Greater than 17% of similar tractors.

Operating Weight

Above Average

Greater than 89% of similar tractors.

Technical Specifications

Engine

Manufacturer: John Deere
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: -
Cylinders: 6
Displacement (ci): 329
Bore (in): 4.02
Stroke (in): 4.33
Rated RPM: 2500
Power Output (hp): 93.8

Transmission

Type: Hi-Lo
Forward Gears: 12
Reverse Gears: 6
Total Gears: -

Dimensions

Length (in): 157.5
Width (in): 80.3
Height (in): Available in two values: 105.7 (ROPS) and 107.5 (cab)
Operating Weight (lb): Range from 7297 to 8069

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Power
Coolant Capacity (qts): 20.1
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Standard tires (ag)
Manufacture - End Year: -
Hitch Type: Category II
Hitch Category: -
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: Available in two configurations: ROPS or Cab
Starter Type: 12 volts
Brake Type: -
Hydraulic System Type: Closed center
