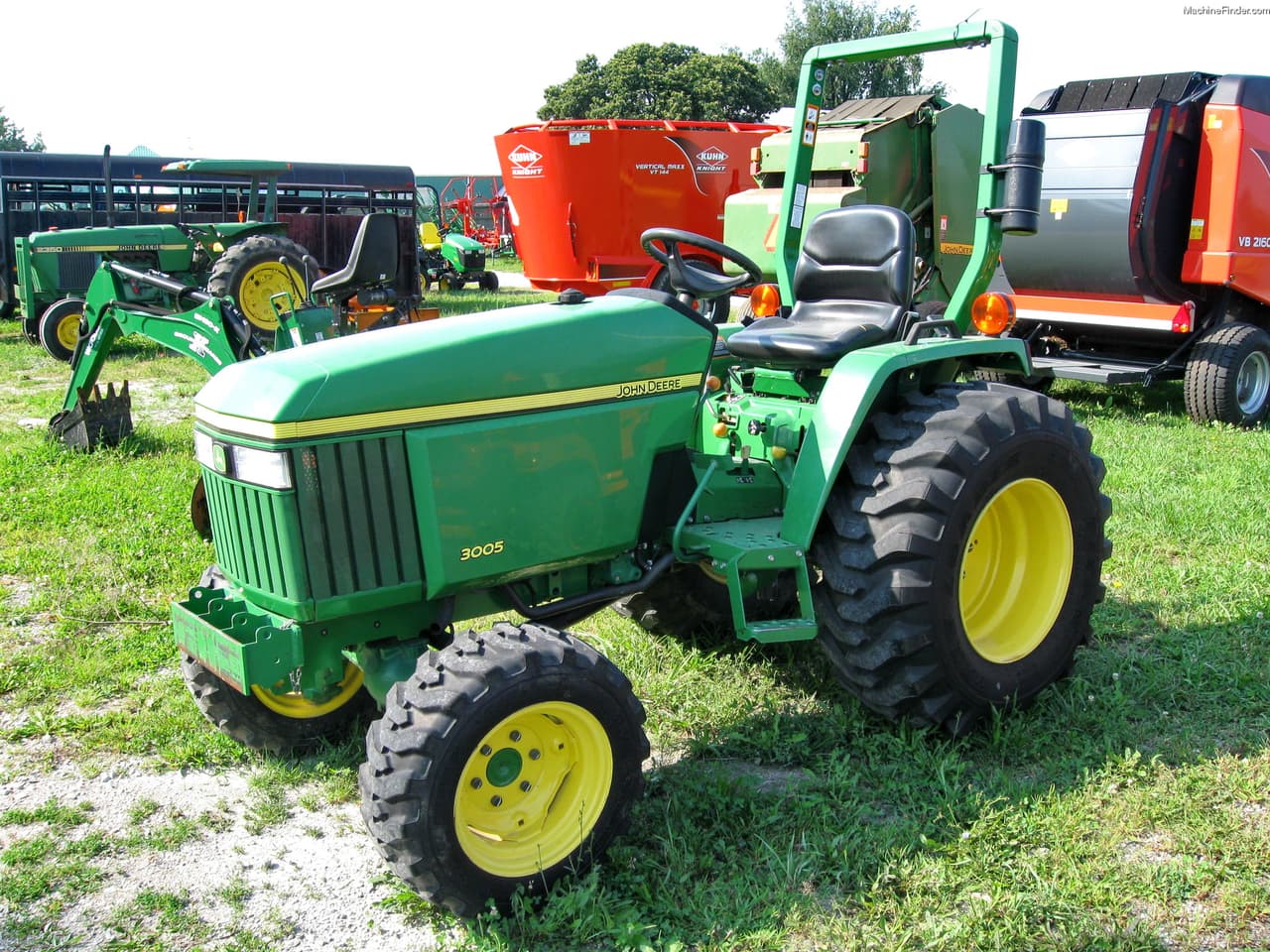

John Deere 3005

Last Updated: June 2024

Overview

The John Deere 3005 is a versatile compact utility tractor that was produced in Augusta, Georgia, by John Deere from 2008 to 2018. Powered by a reliable Yanmar 3TNV82A diesel engine with three cylinders and liquid-cooling. It's designed to perform a variety of tasks with ease, suitable for small-scale farming, landscaping, and utility work. This tractor features a sliding gear transmission with eight forward and two reverse gears, enabling a wide range of speeds for different operations. Its operating weight is 3,262 lbs, and it comes equipped with manually operated (with optional power) steering for ease of control. The open operator station with two-post ROPS provides the necessary safety for the operator, while still offering comfort and accessibility to the tractor's controls. With a fuel-efficient engine rated at 27 hp and a high-performance hydraulics system, the John Deere 3005 stands as a solid choice for those seeking a dependable compact tractor.
Show more...

Key Specifications

Category: Utility

Power Output: 27

Transmission: Sliding gear

Operating Weight: 3262

Fuel Type: Diesel

Lift Capacity: 816

John Deere 3005 vs. Similar Tractors

Power Output
Below Average
Greater than 21% of similar tractors.
Hitch Capacity
Below Average
Greater than 17% of similar tractors.
Operating Weight
Below Average
Greater than 28% of similar tractors.

Technical Specifications

Engine

Manufacturer
Yanmar
Model
3TNV82A
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural aspiration
Cylinders
3
Displacement (ci)
81.2
Bore (in)
3.23
Stroke (in)
3.31
Rated RPM
2700
Power Output (hp)
27

Transmission

Type
Sliding gear
Forward Gears
8
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
87.8
Width (in)
53.9
Height (in)
81.9
Operating Weight (lb)
3262

Power Take-Off (PTO)

PTO Type
Live with two stage clutch
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
2000 (optional)
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
Manual
Coolant Capacity (qts)
5
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
2018
Hitch Type
Category I
Hitch Category
Category 1
Hitch Position
Rear
Hitch Capacity (lb)
816
Operator Station Type
Open with two-post ROPS
Starter Type
Electric
Brake Type
Dry shoe
Hydraulic System Type
Open center
