John Deere 2850

Last Updated: June 2024

Overview

The John Deere 2850 is a utility tractor that was designed with a versatility suitable for a variety of tasks around the farm. Equipped with either a 4x2 2WD or a 4x4 4WD chassis, it can handle different terrain conditions with ease. The tractor is powered by a 239 cubic inch, turbocharged diesel engine rated at 86 horsepower and has a liquid cooling system to maintain engine efficiency. The transmission system offers 16 forward and 8 reverse gears, operated by a two-speed power shift mechanism, allowing for a range of speeds and a hydraulic cerametallic disc clutch for smooth transitions. The power steering provides easy maneuverability. With a weight range of 7694 to 8653 pounds and dimensions measuring 167.1 inches in length, 81.4 inches in width, and 100.3 inches in height, this tractor is solid and durable. It uses category II hitch type and features a closed-center constant pressure hydraulic system, indicating it is capable of supporting a variety of attachments and implements for diverse farming needs.

Key Specifications

Category: Utility

Power Output: 86

Transmission: Two-speed power shift

Drive Type: 2WD or 4WD (assumed from wheelbase and tire info)

Operating Weight: 7694 for 2WD, 8653 for 4WD

Fuel Type: Diesel

Image Gallery

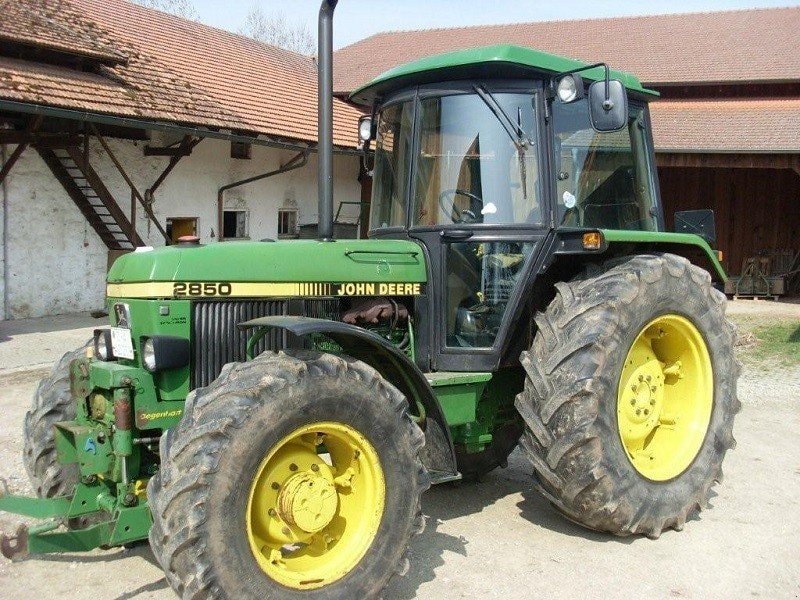

John Deere 2850 Tractor

John Deere 2850 vs. Similar Tractors

Power Output

Above Average

Greater than 74% of similar tractors.

Operating Weight

Above Average

Greater than 79% of similar tractors.

Technical Specifications

Engine

Manufacturer: John Deere
Model: 4239TL
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 4
Displacement (ci): 239
Bore (in): 4.19
Stroke (in): 4.33
Rated RPM: 2300
Power Output (hp): 86

Transmission

Type: Two-speed power shift
Forward Gears: 16
Reverse Gears: 8
Total Gears: Unknown (Total not explicitly stated, but usually it's simply the sum of forward and reverse gears if not otherwise specified)

Dimensions

Length (in): 167.1
Width (in): 81.4
Height (in): 100.3
Operating Weight (lb): 7694 for 2WD, 8653 for 4WD

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD or 4x4 4WD
Drive Type: 2WD or 4WD (assumed from wheelbase and tire info)
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): Unknown (Not enough data to assume diameter from size)
Front Tire Width (in): Unknown (Size 10.00-16 doesn't specify width)
Rear Tire Diameter (in): Unknown (Not enough data to assume diameter from size)
Rear Tire Width (in): Unknown (Size 14.9R38 doesn't specify width)
Front/Rear Rim Diameter (in): Unknown (cannot assume rim diameter from tire size)
Tire Type: Standard tires (ag)
Manufacture - End Year: -
Hitch Type: II
Hitch Category: Category 3
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: Cab (assumed from 'Height (cab)')
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Closed center constant pressure
