John Deere 2651

Last Updated: June 2024

Overview

The John Deere 2651 utility tractor is a robust, practical machine designed for a variety of tasks around the farm. Sporting a 4x2 2WD chassis, it makes use of hydrostatic power steering for ease of maneuverability. At the heart of this tractor lies a diesel-powered, 4-cylinder, liquid-cooled engine with a displacement of 235.6 cubic inches, capable of delivering 80.5 horsepower and operating at a rated RPM of 2300. Paired with a 16-speed forward and 8-speed reverse top-shaft synchronized transmission, it provides versatility in various working conditions. While specific dimensions and tire sizes are unknown, the tractor's operating weight is specified at 7,700 pounds, underscoring its substantial build and capability for heavy-duty operations.

Key Specifications

Category: Utility

Power Output: 80.5

Transmission: Top-Shaft Synchronized

Drive Type: 2WD

Operating Weight: 7,700

Fuel Type: Diesel

Image Gallery

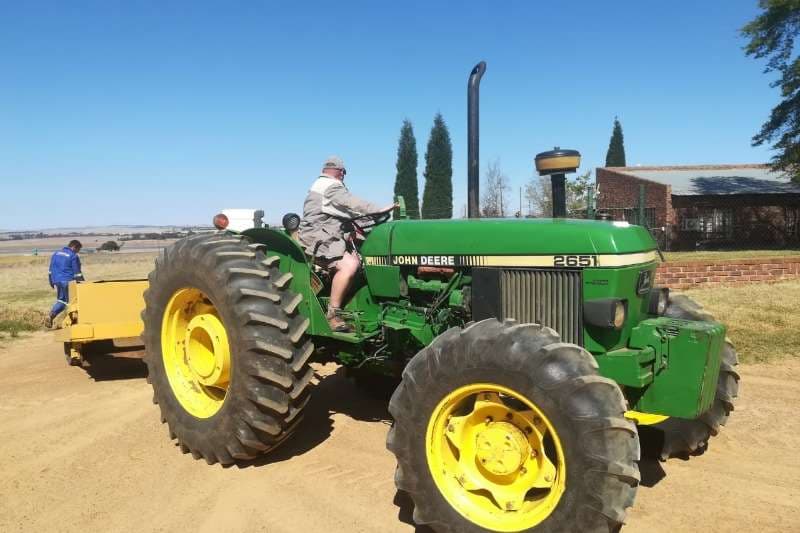

John Deere 2651 Tractor

John Deere 2651 vs. Similar Tractors

Power Output

Above Average

Greater than 71% of similar tractors.

Operating Weight

Poor

Greater than 4% of similar tractors.

Technical Specifications

Engine

Manufacturer: -
Model: ADE
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally Aspirated (assumed from lack of detail)
Cylinders: 4
Displacement (ci): 235.6
Bore (in): 3.875
Stroke (in): 5
Rated RPM: 2300
Power Output (hp): 80.5

Transmission

Type: Top-Shaft Synchronized
Forward Gears: 16
Reverse Gears: 8
Total Gears: 24

Dimensions

Length (in): -
Width (in): -
Height (in): -
Operating Weight (lb): 7,700

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Hydrostatic power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: -
Brake Type: -
Hydraulic System Type: -
