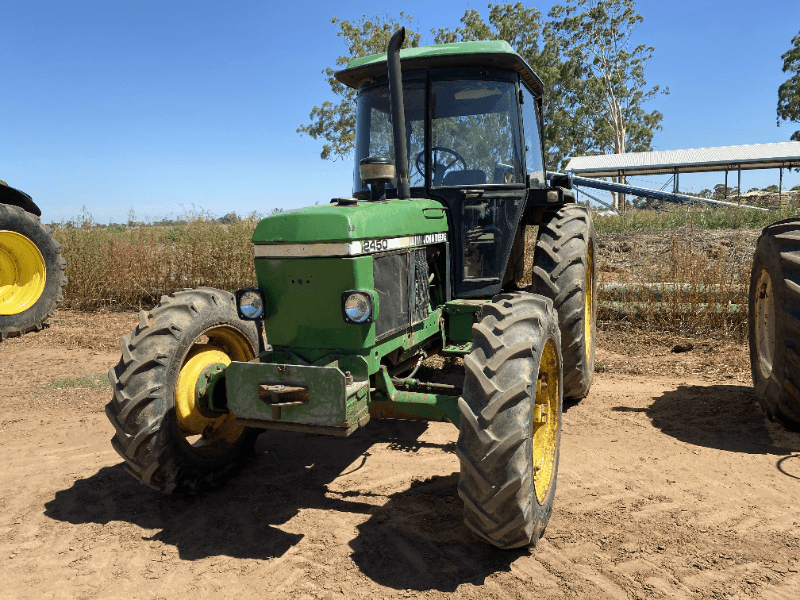

John Deere 2450

Last Updated: June 2024

Overview

The John Deere 2450 is a versatile utility tractor that can be configured with either two-wheel drive (2WD) or four-wheel drive (4WD). Equipped with a power-assisted steering system for easy maneuverability, the tractor operates with a liquid-cooled, four-cylinder John Deere diesel engine that delivers 70 horsepower with a displacement of 239.2 cubic inches. The engine is rated for a maximum of 2300 RPM. For transmission, the 2450 features a partially synchronized gearbox with a two-speed power shift option, providing 16 forward and 8 reverse gears. It comes with a closed-center constant pressure hydraulic system. The available standard ag tires support various chassis configurations—2WD and 4WD—each with distinct wheelbases; 89.2 inches for 2WD and 90 inches for 4WD. The wheelbase combined with the tractor's length of 165.1 inches and a width of 73.3 inches offer stability during operation. The operating weight ranges from 7077 to 8157 pounds, depending on the model and configuration.
Show more...

Key Specifications

Power Output: 70

Transmission: Partially synchronized, Two-speed power shift

Drive Type: 4WD, 2WD

Operating Weight: 7077 to 8157

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
John Deere
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
4
Displacement (ci)
239.2
Bore (in)
4.19
Stroke (in)
4.33
Rated RPM
2300
Power Output (hp)
70

Transmission

Type
Partially synchronized, Two-speed power shift
Forward Gears
16
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
165.1
Width (in)
73.3
Height (in)
-
Operating Weight (lb)
7077 to 8157

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
2WD/4WD
Drive Type
4WD, 2WD
Steering Type
Power assist
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
II
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric Starter
Brake Type
-
Hydraulic System Type
Closed-center constant pressure
