John Deere 2440

Last Updated: June 2024

Overview

The John Deere 2440 is a 2WD utility tractor from the 2040 series, manufactured by John Deere in Dubuque, Iowa, USA and Mannheim, Baden-Württemberg, Germany from 1976 to 1979. It features a John Deere 3.6 L four-cylinder diesel engine and a choice of three different transmission systems, including a collar shift, a two-speed power shift, and a power shuttle, providing a variety of forward and reverse gears. The tractor is designed with power steering, hydraulic wet disc brakes, and a 73.8-liter fuel tank. The John Deere 2440 provides durability and performance suited for utility tasks on the farm.

Key Specifications

Category: Utility

Power Output: 60.6

Transmission: Unknown - Multiple transmission types listed

Drive Type: 2WD

Operating Weight: 4,751

Fuel Type: Diesel

Image Gallery

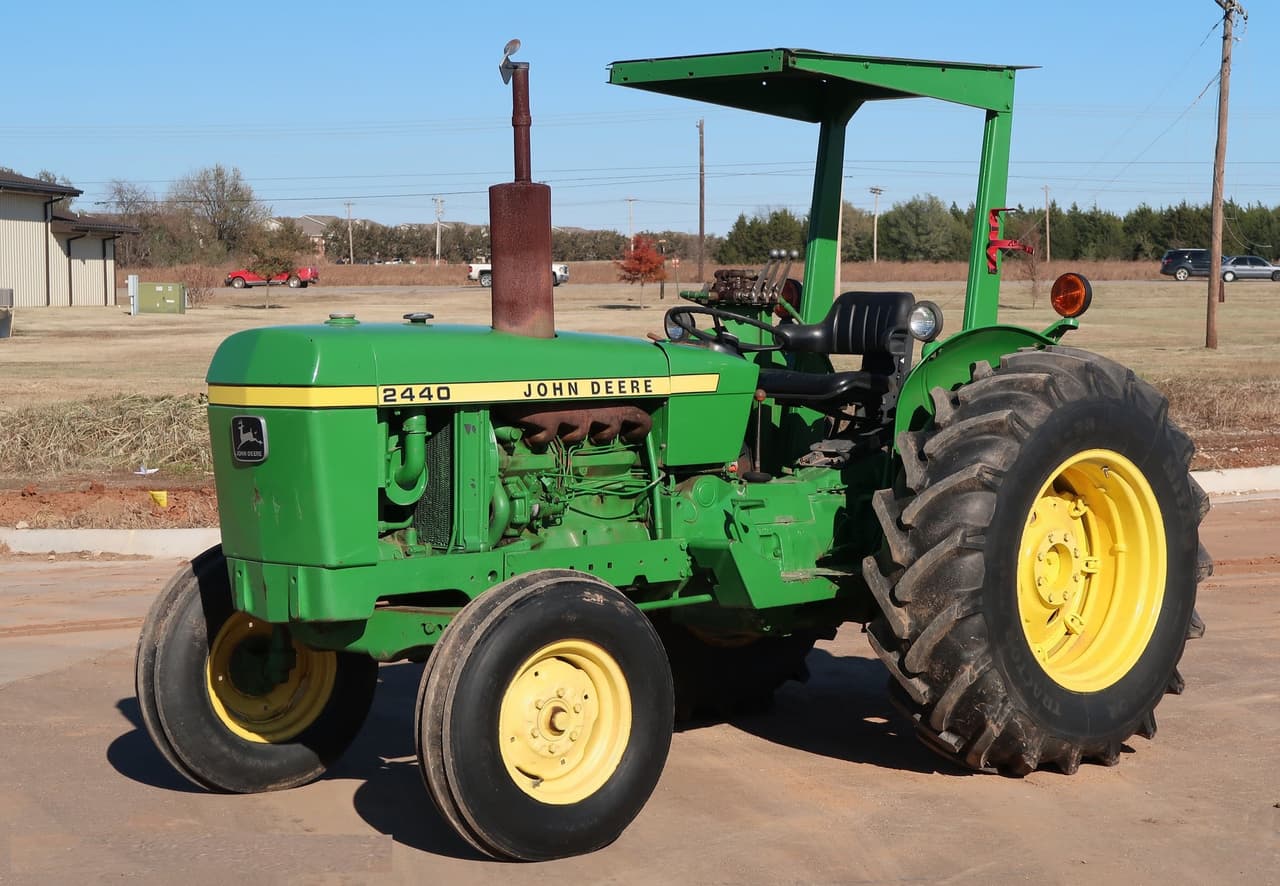

John Deere 2440 Tractor

John Deere 2440 vs. Similar Tractors

Power Output

Average

Greater than 62% of similar tractors.

Operating Weight

Average

Greater than 42% of similar tractors.

Technical Specifications

Engine

Manufacturer: John Deere
Model: John Deere
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally aspirated
Cylinders: 4
Displacement (ci): 219
Bore (in): 4.02
Stroke (in): 4.33
Rated RPM: 2,500
Power Output (hp): 60.6

Transmission

Type: Unknown - Multiple transmission types listed
Forward Gears: 16
Reverse Gears: 8
Total Gears: -

Dimensions

Length (in): 139.4
Width (in): 69.3
Height (in): 61
Operating Weight (lb): 4,751

Power Take-Off (PTO)

PTO Type: Independent
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): 1000
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Power
Coolant Capacity (qts): 12
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: 1979
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Two-post ROPS
Starter Type: Electric
Brake Type: Hydraulic wet disc
Hydraulic System Type: Closed center
