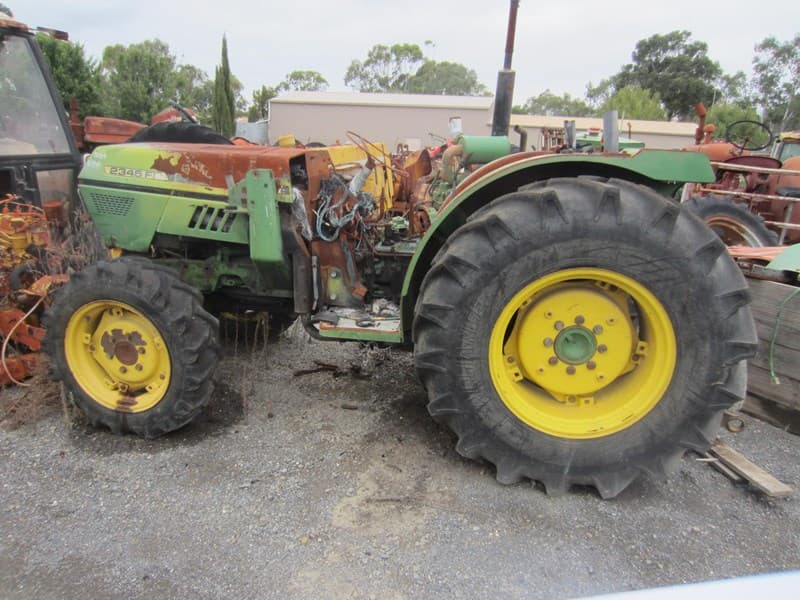

John Deere 2345F

Last Updated: June 2024

Overview

The John Deere 2345F is an Orchard/Vineyard tractor designed for specialized agricultural tasks. It features a 2WD chassis configuration and is equipped with power steering for ease of maneuverability. The 4x2 wheel drive system along with a wide range of tire options allows for optimization based on various profiles and farming requirements. A turbocharged three-cylinder diesel engine by John Deere powers the tractor, offering 66.1 horsepower and a displacement of 179.4 cubic inches. With a synchronized transmission featuring 8 forward and 4 reverse gears, as well as an additional creeper gear set providing 16 forward and 8 reverse gears, this tractor caters to a variety of speeds and operational needs. It has 2300 rated RPMs and a torque rating of 180.7 lb-ft at 1500 RPM, making it robust for various farming tasks. The tractor's operating weight ranges from 4057 to 4641 pounds depending on the configuration, with notable variations in steering wheel and ROPS heights based on profiling and cab options. This tractor model would be a dependable choice for those in the Orchard/Vineyard sectors, capable of performing efficiently with a range of ground clearances tailored to the requirements of low-profile or high-profile farming operations.
Show more...

Key Specifications

Category: Agricultural, Orchard/Vineyard

Power Output: 66.1

Transmission: Synchronized

Drive Type: 2WD

Operating Weight: 4057 to 4641

Fuel Type: Diesel

John Deere 2345F vs. Similar Tractors

Power Output
Average
Greater than 39% of similar tractors.
Operating Weight
Above Average
Greater than 76% of similar tractors.

Technical Specifications

Engine

Manufacturer
John Deere
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
3
Displacement (ci)
179.4
Bore (in)
4.19
Stroke (in)
4.33
Rated RPM
2300
Power Output (hp)
66.1

Transmission

Type
Synchronized
Forward Gears
16
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
122.1
Width (in)
51.7
Height (in)
81.7 (assuming high-profile CAB)
Operating Weight (lb)
4057 to 4641

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
16 (for 6.50-16 tire)
Front Tire Width (in)
6.5
Rear Tire Diameter (in)
24 (for 380/70R24 tire)
Rear Tire Width (in)
380/70
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
