John Deere 2210

Last Updated: June 2024

Overview

The John Deere 2210 is a versatile 4WD sub-compact utility tractor that was produced from 2003 to 2006. It offers a powerful Yanmar 3TNE74 diesel engine with a displacement of 61.4 cubic inches and a power output of 23 horsepower at 3000 RPM. This tractor supports multiple tire configurations to suit different types of work including agricultural, lawn/turf, and industrial applications. With a hydrostatic transmission that provides infinite gear ranges for forward and reverse movement, the 2210 allows for efficient operation in various tasks. It comes equipped with power steering and wet disc brakes for enhanced control, as well as an open operator station featuring a two-post ROPS for safety. The accessorized with a three-point hitch and independent PTO speeds, the 2210 can handle a variety of attachments suitable for a wide range of jobs.

Key Specifications

Category: Utility, Sub-Compact

Power Output: 23

Transmission: Hydrostatic

Drive Type: 4WD

Operating Weight: 1400

Fuel Type: Diesel

Image Gallery

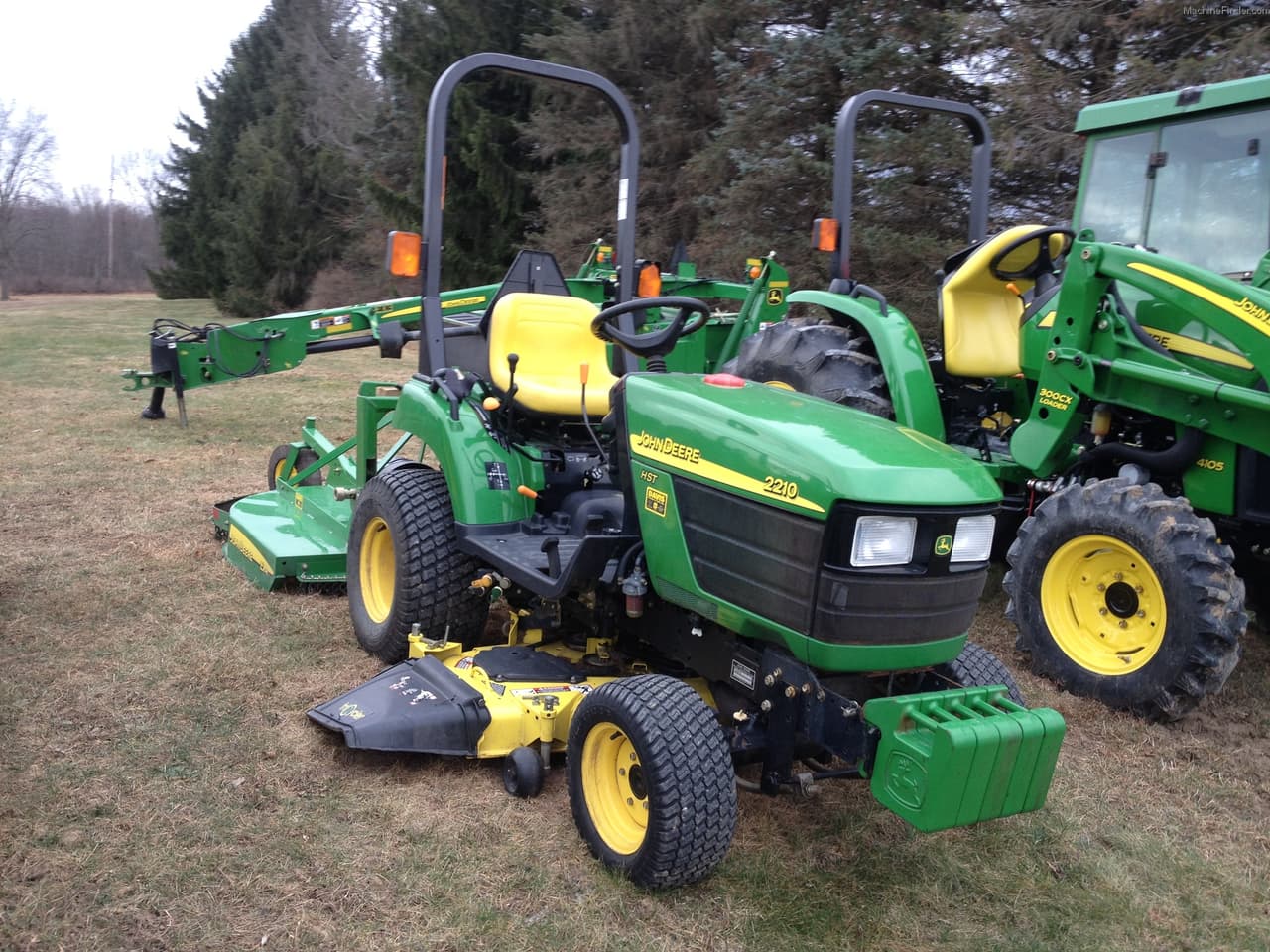

John Deere 2210 Tractor

John Deere 2210 vs. Similar Tractors

Power Output

Below Average

Greater than 14% of similar tractors.

Operating Weight

Below Average

Greater than 10% of similar tractors.

Technical Specifications

Engine

Manufacturer: Yanmar
Model: 3TNE74
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Natural aspiration
Cylinders: 3
Displacement (ci): 61.4
Bore (in): 2.91
Stroke (in): 3.07
Rated RPM: 3000
Power Output (hp): 23

Transmission

Type: Hydrostatic
Forward Gears: Infinite (2-range)
Reverse Gears: Infinite (2-range)
Total Gears: -

Dimensions

Length (in): 104
Width (in): 47.9
Height (in): 78.6
Operating Weight (lb): 1400

Power Take-Off (PTO)

PTO Type: Independent
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): 2100
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Power
Coolant Capacity (qts): 3.1
Front Tire Diameter (in): 18
Front Tire Width (in): 8.5
Rear Tire Diameter (in): 26
Rear Tire Width (in): 12
Front/Rear Rim Diameter (in): -
Tire Type: Ag, Lawn/turf, Industrial
Manufacture - End Year: 2006
Hitch Type: Three-Point Hitch
Hitch Category: Category 1
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: Open operator station with two-post ROPS
Starter Type: Electric
Brake Type: Wet disc
Hydraulic System Type: Open center
