John Deere 2120

Last Updated: June 2024

Overview

The John Deere 2120 is a versatile and reliable row-crop tractor that was manufactured in Mannheim, Baden-Württemberg, Germany and Mexico between 1969 and 1972. It is powered by a John Deere 4-cylinder liquid-cooled diesel engine with a displacement of 219 cubic inches, capable of producing 68 horsepower at 2500 RPM and 51.3 foot-pounds of torque at 1500 RPM. This tractor is equipped with a power steering system, an optional cab, and a fuel tank with a capacity of 19.5 US gallons. Its chassis is 4x2 2WD, and it comes with two transmission options: an 8-speed gear type or a 16-speed two-speed power shift transmission, allowing for a robust and adaptable operation in different farming conditions. The John Deere 2120 also boasts a three-point hitch with a lift capacity of 4498 pounds and a closed-center hydraulic system.

Key Specifications

Category: Row Crop

Power Output: 68

Transmission: Gear type / Two-speed power shift

Drive Type: 2WD

Operating Weight: 6615

Fuel Type: Diesel

Image Gallery

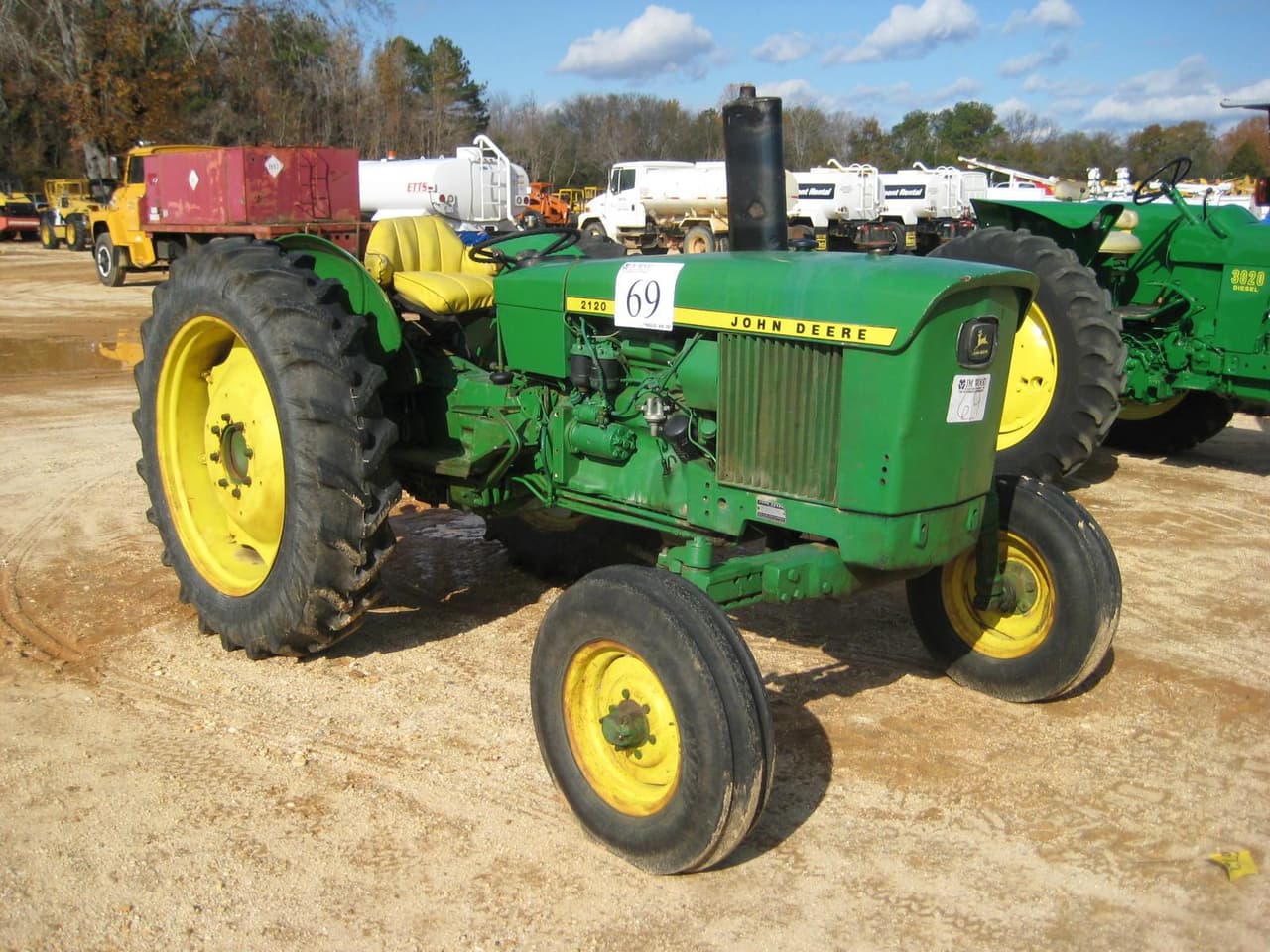

John Deere 2120 Tractor

John Deere 2120 vs. Similar Tractors

Power Output

Poor

Greater than 8% of similar tractors.

Hitch Capacity

Average

Greater than 36% of similar tractors.

Operating Weight

Below Average

Greater than 24% of similar tractors.

Technical Specifications

Engine

Manufacturer: John Deere
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally Aspirated
Cylinders: 4
Displacement (ci): 219
Bore (in): 4.02
Stroke (in): 4.33
Rated RPM: 2500
Power Output (hp): 68

Transmission

Type: Gear type / Two-speed power shift
Forward Gears: 16 (Assumed from the highest number of forward gears provided in two transmissions)
Reverse Gears: 8 (Assumed from the highest number of reverse gears provided in two transmissions)
Total Gears: -

Dimensions

Length (in): 141.7 (Converted from mm)
Width (in): -
Height (in): 96.5 (Converted from mm)
Operating Weight (lb): 6615

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: 1972
Hitch Type: Three-Point Hitch
Hitch Category: Category II
Hitch Position: Rear
Hitch Capacity (lb): 4498 (Converted from kg)
Operator Station Type: Open / Cab (Optional)
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Closed Center
