John Deere 210LE

Last Updated: June 2024

Overview

The John Deere 210LE is a 4WD industrial tractor that was manufactured by John Deere between 1997 and 2007. It features a 276.0 cubic inch four-cylinder turbocharged diesel engine with a power output of 78 hp at 2,200 rpm. Available with either a power shuttle transmission offering four forward and four reverse gears or a full power shift transmission with four forward and three reverse gears, the tractor is capable of reaching speeds up to 20.5 mph forward and reverse. Designed to cater to a variety of industrial tasks, the 210LE is fitted with an independent PTO rated at 540 rpm, an open center hydraulic system, and a two-post ROPS/FOPS or optional cab for operator safety and comfort. Its robust 4WD chassis allows for efficient operation in diverse environments, and the tractor's power steering and hydraulic wet disc brakes ensure responsive handling and control.

Key Specifications

Category: Industrial

Power Output: 78

Transmission: Power shuttle, Full power shift

Drive Type: MFWD

Operating Weight: 9127

Fuel Type: Diesel

Image Gallery

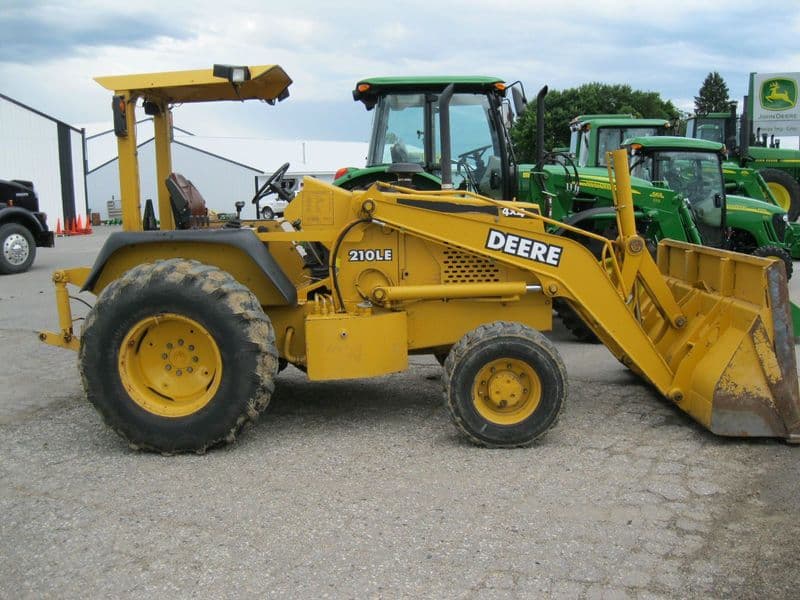

John Deere 210LE Tractor

John Deere 210LE vs. Similar Tractors

Power Output

Above Average

Greater than 72% of similar tractors.

Hitch Capacity

Excellent

Greater than 100% of similar tractors.

Operating Weight

Above Average

Greater than 74% of similar tractors.

Technical Specifications

Engine

Manufacturer: John Deere
Model: 4045D
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 4
Displacement (ci): 276
Bore (in): 4.17
Stroke (in): 5
Rated RPM: 2200
Power Output (hp): 78

Transmission

Type: Power shuttle, Full power shift
Forward Gears: 4
Reverse Gears: 4, 3
Total Gears: -

Dimensions

Length (in): 205.9
Width (in): 83.9
Height (in): 97.2
Operating Weight (lb): 9127

Power Take-Off (PTO)

PTO Type: Independent
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: MFWD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Industrial
Manufacture - End Year: 2007
Hitch Type: Three-Point Hitch
Hitch Category: II
Hitch Position: Rear
Hitch Capacity (lb): 6870
Operator Station Type: Two-post ROPS/FOPS or Cab (optional)
Starter Type: Electric
Brake Type: Hydraulic wet disc
Hydraulic System Type: Open center
