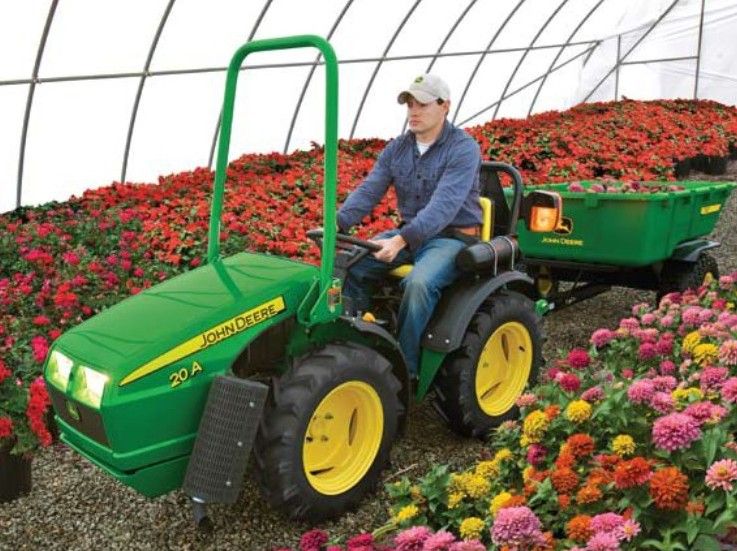

John Deere 20A Open Station

Last Updated: June 2024

Overview

The John Deere 20A Open Station is a machine designed with utility in mind, notable for its accessibility and maneuverability. Equipped with a naturally aspirated 2-cylinder engine displacing 58.3 cubic inches, it yields an output of 21 horsepower at 3000 RPM and transfers power through a gear-driven transmission with 6 forward and 3 reverse gears. This model features an open operator station, acknowledging a preference for a straightforward and unencumbered user experience. The tractor's performance is further supported by a pump flow capacity of 5.1 gallons per minute and a relief valve setting of 1814 psi, giving it respectable capabilities for a variety of implements. Additionally, the tractor is known for a tight turning radius of 4 feet, facilitated by a wheelbase of 3.3 feet, which enhances its agility in confined spaces. The tractor maintains a consistent presence in tasks where a 3 point hitch lift capacity of 1102.4 pounds at 24 inches is advantageous.
Show more...

Key Specifications

Power Output: 21

Transmission: Gear

Technical Specifications

Engine

Manufacturer
-
Model
-
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
-
Induction Type
Natural
Cylinders
2
Displacement (ci)
58.3
Bore (in)
-
Stroke (in)
-
Rated RPM
3000
Power Output (hp)
21

Transmission

Type
Gear
Forward Gears
6
Reverse Gears
3
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
-

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Open Station
Starter Type
-
Brake Type
-
Hydraulic System Type
-
