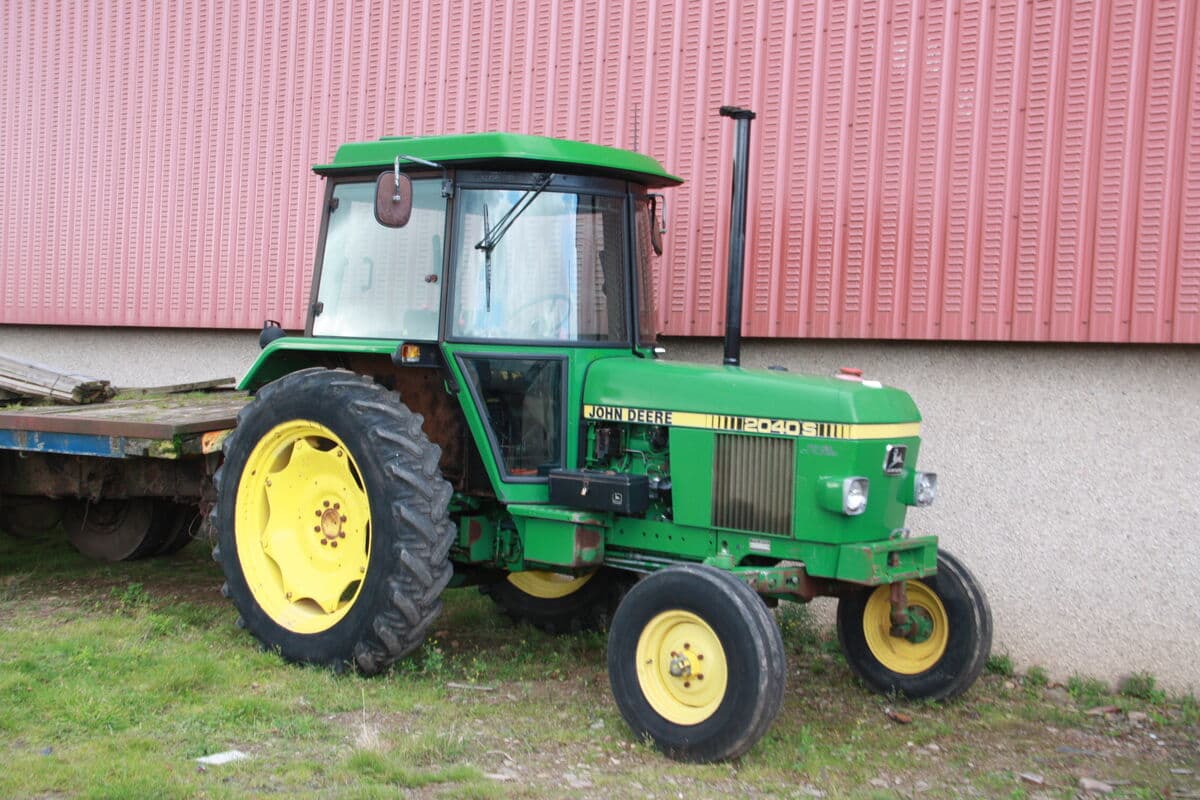

John Deere 2040S

Last Updated: June 2024

Overview

The John Deere 2040S is a utility tractor that was built for various agricultural tasks. It provides a robust and reliable performance with its diesel-powered, liquid-cooled, four-cylinder engine boasting a displacement of 239.2 cubic inches and a rated RPM of 2500. The tractor comes with two transmission options: an 8-speed partially synchronized transmission and a 16-speed two-speed power shift transmission, which includes 16 forward and 8 reverse gears, allowing for a versatile range of speed options during operation. The tractor's power steering facilitates easier maneuverability, and the closed-center hydraulic system enhances efficiency. With an operating weight range of 7365 to 7995 pounds and a capacity to work with heavy implements, the 2040S is suited for a range of tasks, from plowing to planting. Tire options cater to different field conditions, maintaining robust traction with either 2WD or 4WD configurations.
Show more...

Key Specifications

Category: Utility

Transmission: Partially Synchronized / Two-speed power shift

Drive Type: 2WD

Operating Weight: 7365 (2WD) / 7995 (4WD)

Fuel Type: Diesel

John Deere 2040S vs. Similar Tractors

Operating Weight
Excellent
Greater than 98% of similar tractors.

Technical Specifications

Engine

Manufacturer
John Deere
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Direct Injection
Cylinders
4
Displacement (ci)
239.2
Bore (in)
4.19
Stroke (in)
4.33
Rated RPM
2500
Power Output (hp)
-

Transmission

Type
Partially Synchronized / Two-speed power shift
Forward Gears
16
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
147 (2WD) / 152 (4WD)
Width (in)
81
Height (in)
104 (Cab) / 110 (exhaust)
Operating Weight (lb)
7365 (2WD) / 7995 (4WD)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
199
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
II/I
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
-
Brake Type
-
Hydraulic System Type
Closed center
