John Deere 2036R

Last Updated: June 2024

Overview

The John Deere 2036R is a turbocharged compact utility tractor equipped with a Yanmar 3TNV84T diesel engine, delivering up to 36.6 horsepower. It features a chassis built for four-wheel drive (4x4 MFWD 4WD) and power steering to facilitate maneuverability and handling. Its hydrostatic transmission with infinite (2-range) forward and reverse gears allows for seamless gear shifting, thus providing ease of use for a variety of tasks. Suitable for different ground surface demands, it offers multiple tire setups, including agricultural, turf, and industrial options. The tractor's overall design is intended to offer both functionality and comfort while being capable of handling substantial loads, with a hitch lift capacity of up to 3291 pounds.

Key Specifications

Category: Utility

Power Output: 36.6

Transmission: Hydrostatic

Drive Type: 4WD

Operating Weight: 2425 to 2921

Fuel Type: Diesel

Image Gallery

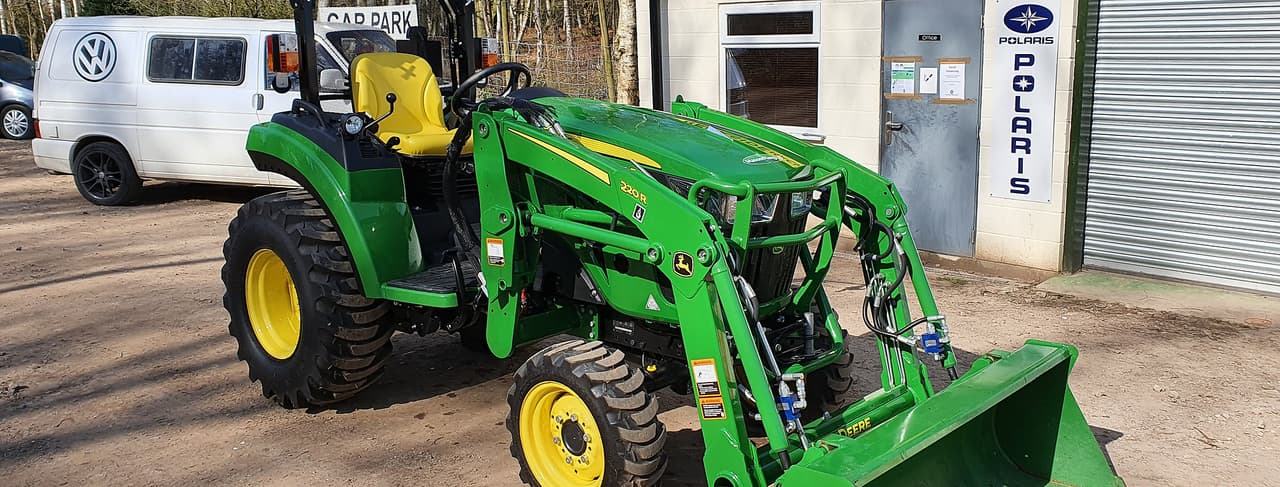

John Deere 2036R Tractor

John Deere 2036R vs. Similar Tractors

Power Output

Average

Greater than 33% of similar tractors.

Hitch Capacity

Average

Greater than 58% of similar tractors.

Operating Weight

Above Average

Greater than 83% of similar tractors.

Technical Specifications

Engine

Manufacturer: Yanmar
Model: 3TNV84T
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 3
Displacement (ci): 91.5
Bore (in): 3.31
Stroke (in): 3.54
Rated RPM: 2500
Power Output (hp): 36.6

Transmission

Type: Hydrostatic
Forward Gears: Infinite (2-range)
Reverse Gears: Infinite (2-range)
Total Gears: -

Dimensions

Length (in): 113.2
Width (in): 50.4
Height (in): Unknown (Varies with ROPS or Cab)
Operating Weight (lb): 2425 to 2921

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Power
Coolant Capacity (qts): Unknown (Varies with ROPS or Cab)
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag: Front 7.00-12, Rear 12.4-16 | Turf: Front 23x8.5-14 or 200/60R15, Rear 14-17.5 or 300/70R20 | Industrial: Front 23x8.5-14, Rear 14-17.5
Manufacture - End Year: -
Hitch Type: -
Hitch Category: Category 3
Hitch Position: Rear
Hitch Capacity (lb): 3291 lbs
Operator Station Type: Unknown (Varies with ROPS or Cab)
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Open Center
