John Deere 1950

Last Updated: June 2024

Overview

The John Deere 1950 is a versatile utility tractor developed for a variety of tasks on the farm. With options for either 2WD or 4WD, these tractors are equipped to handle different terrains and conditions. The manual steering, or optional power steering, along with hydraulic wet disc brakes, allows for easier control and operation. The range of transmissions, including synchromesh, two-speed power shift, and creeper, provides multiple gear options for different fieldwork needs. The tractor operates with a turbocharged diesel engine, which delivers substantial power for agricultural duties. The range in operating weights reflects the different configurations possible with ROPS or cabs. Produced between 1988 and 1994, the John Deere 1950 has proven to be a reliable piece of machinery for various farm applications.

Key Specifications

Category: Utility

Power Output: 61.7

Transmission: Synchromesh / Two-speed power shift / Creeper

Drive Type: 4x4 MFWD 4WD / 4x2 2WD

Operating Weight: 5798 to 6845

Fuel Type: Diesel

Image Gallery

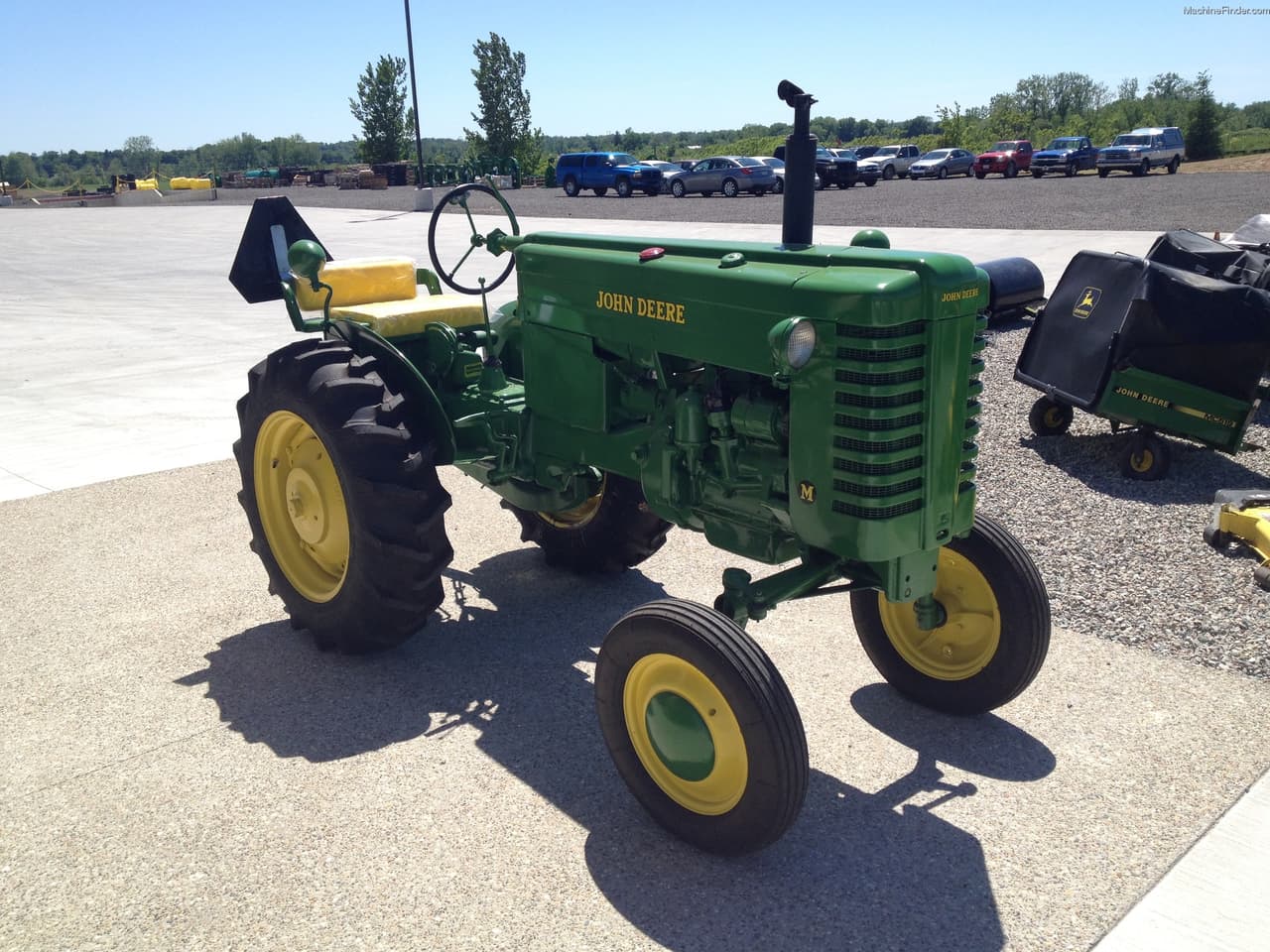

John Deere 1950 Tractor

John Deere 1950 vs. Similar Tractors

Power Output

Average

Greater than 58% of similar tractors.

Operating Weight

Above Average

Greater than 89% of similar tractors.

Technical Specifications

Engine

Manufacturer: John Deere
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 3
Displacement (ci): 179.4
Bore (in): 4.17
Stroke (in): 4.33
Rated RPM: 2300
Power Output (hp): 61.7

Transmission

Type: Synchromesh / Two-speed power shift / Creeper
Forward Gears: 8/16/2012
Reverse Gears: 4/8/2008
Total Gears: -

Dimensions

Length (in): 148
Width (in): 72.8
Height (in): 95.8 (with cab)
Operating Weight (lb): 5798 to 6845

Power Take-Off (PTO)

PTO Type: Independent with hydraulic wet disc clutch
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): 1000
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: 4x4 MFWD 4WD / 4x2 2WD
Steering Type: Manual or power (optional)
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag (Agricultural)
Manufacture - End Year: 1994
Hitch Type: Three-Point Hitch
Hitch Category: II/I
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: ROPS or MC1 cab (optional), CC2 cab (after 1990)
Starter Type: Electric
Brake Type: Hydraulic wet disc
Hydraulic System Type: Closed center
