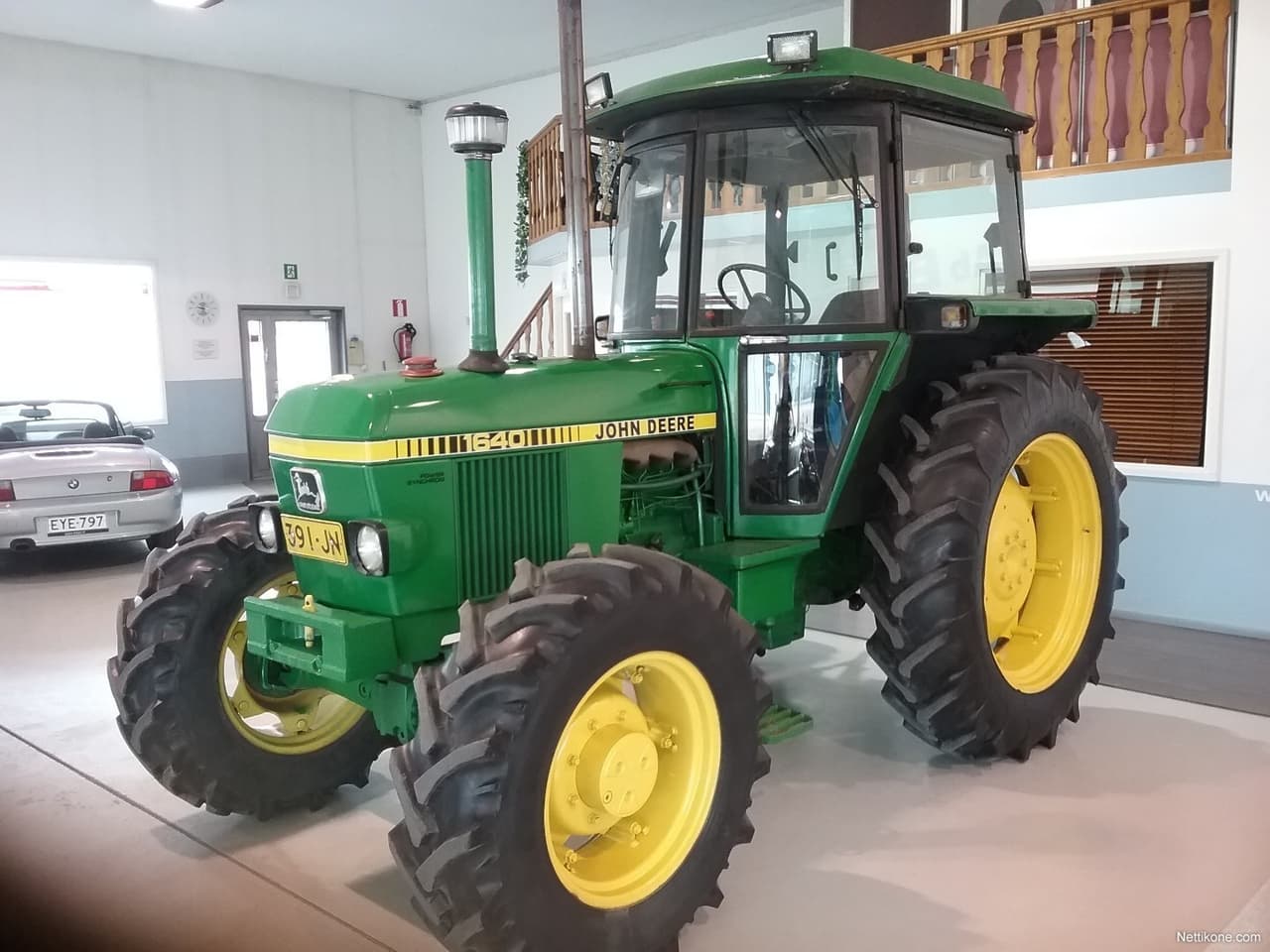

John Deere 1640

Last Updated: June 2024

Overview

The John Deere 1640 is a utility tractor known for its robust design and capable performance. Equipped with a John Deere diesel engine, it offers a displacement of 239.2 ci and a power output of 62 hp. The engine, rated at 2500 RPM, also features a high torque rate of 151.2 lb-ft at 1200 RPM. The tractor's chassis is 4x2 2WD, offering maneuverability and power steering for ease of operation. It provides a closed center constant pressure hydraulic system contributing to its effective functionality on various tasks from plowing to towing. With 16 forward and 8 reverse gears, the 1640 allows for a variety of speeds accommodating different job requirements. It maintains an operating weight between 7409 to 8004 pounds depending on configuration, and presents a substantial wheelbase offering stability in its operations.
Show more...

Key Specifications

Category: Utility

Power Output: 62

Drive Type: 2WD

Operating Weight: 2WD: 7409, 4WD: 8004

Fuel Type: Diesel

John Deere 1640 vs. Similar Tractors

Power Output
Average
Greater than 59% of similar tractors.
Operating Weight
Above Average
Greater than 72% of similar tractors.

Technical Specifications

Engine

Manufacturer
John Deere
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
4
Displacement (ci)
239.2
Bore (in)
4.19
Stroke (in)
4.33
Rated RPM
2500
Power Output (hp)
62

Transmission

Type
-
Forward Gears
16
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
2WD: 147, 4WD: 154.5
Width (in)
81.5
Height (in)
Unknown - varies by exhaust or cab type
Operating Weight (lb)
2WD: 7409, 4WD: 8004

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
19
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
Closed center constant pressure
