John Deere 1130

Last Updated: June 2024

Overview

The John Deere 1130 is a utility tractor that was designed with a balance of power and versatility to handle a variety of tasks on the farm or land. It features a two-wheel drive (2WD) chassis with power steering and a two-speed power shift transmission, offering 16 forward and 8 reverse gears to adapt to various operations. The liquid-cooled, three-cylinder diesel engine with direct injection provides a gross horsepower of 53.6 and operates efficiently with a rated RPM of 2500. The 1130 model's structure includes standard agricultural tires, with the shipping weight standing at 4,780 pounds. This tractor may be a suitable choice for those looking for a capable machine with simple mechanics and a substantial power output, suitable for medium-duty agricultural tasks.

Key Specifications

Category: Utility

Power Output: 53.6

Transmission: Two-speed power shift

Drive Type: 2WD

Operating Weight: 4780

Fuel Type: Diesel

Image Gallery

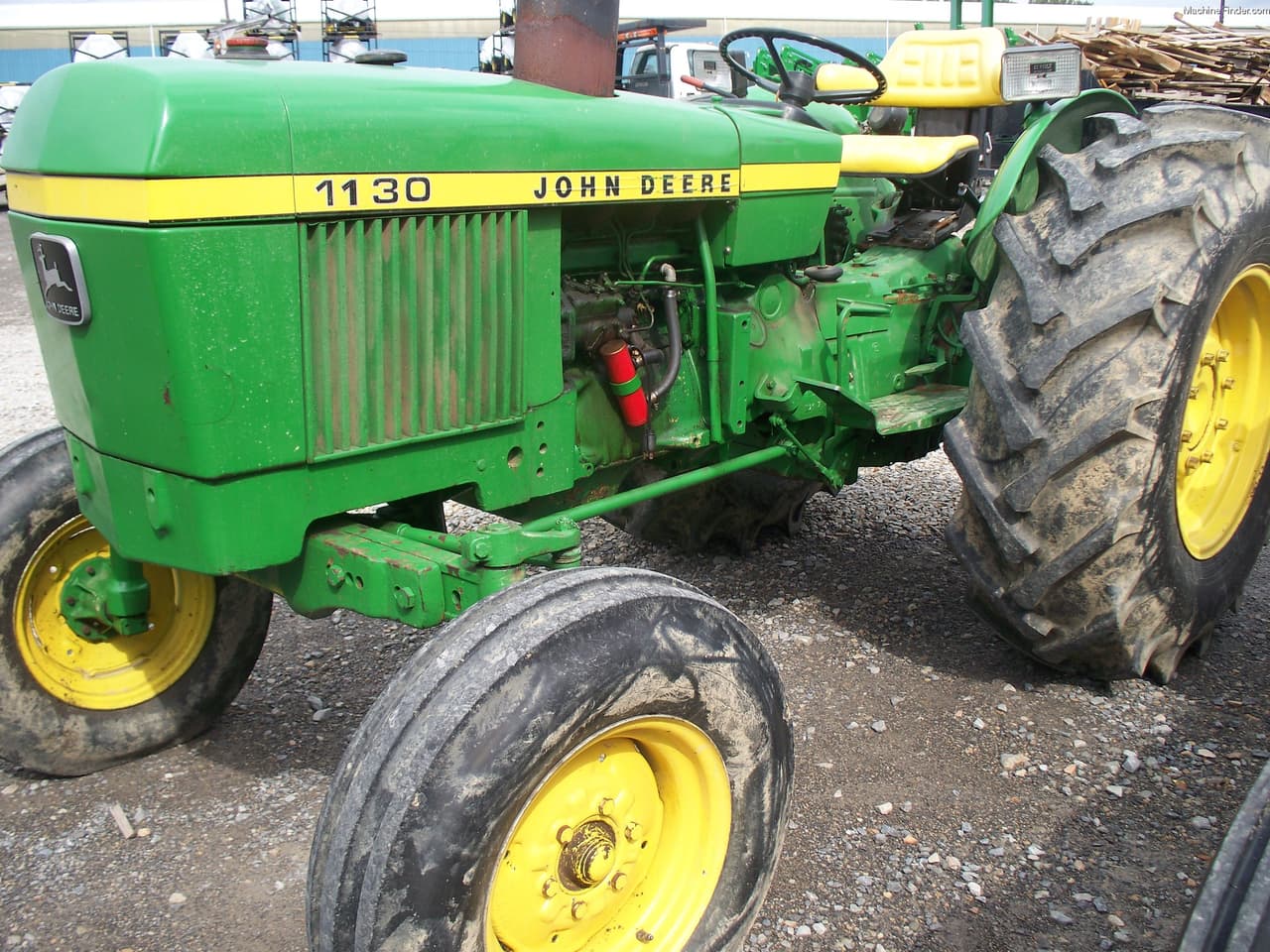

John Deere 1130 Tractor

John Deere 1130 vs. Similar Tractors

Power Output

Average

Greater than 51% of similar tractors.

Operating Weight

Average

Greater than 42% of similar tractors.

Technical Specifications

Engine

Manufacturer: John Deere
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Direct injection
Cylinders: 3
Displacement (ci): 164
Bore (in): 4.02
Stroke (in): 4.33
Rated RPM: 2500
Power Output (hp): 53.6

Transmission

Type: Two-speed power shift
Forward Gears: 16
Reverse Gears: 8
Total Gears: -

Dimensions

Length (in): 133
Width (in): 73.4
Height (in): 96.1 (Height with ROPS)
Operating Weight (lb): 4780

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Power
Coolant Capacity (qts): 11
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Standard tires (ag)
Manufacture - End Year: -
Hitch Type: II/I
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Closed center
