Jinma JM-220

Last Updated: September 2024

Overview

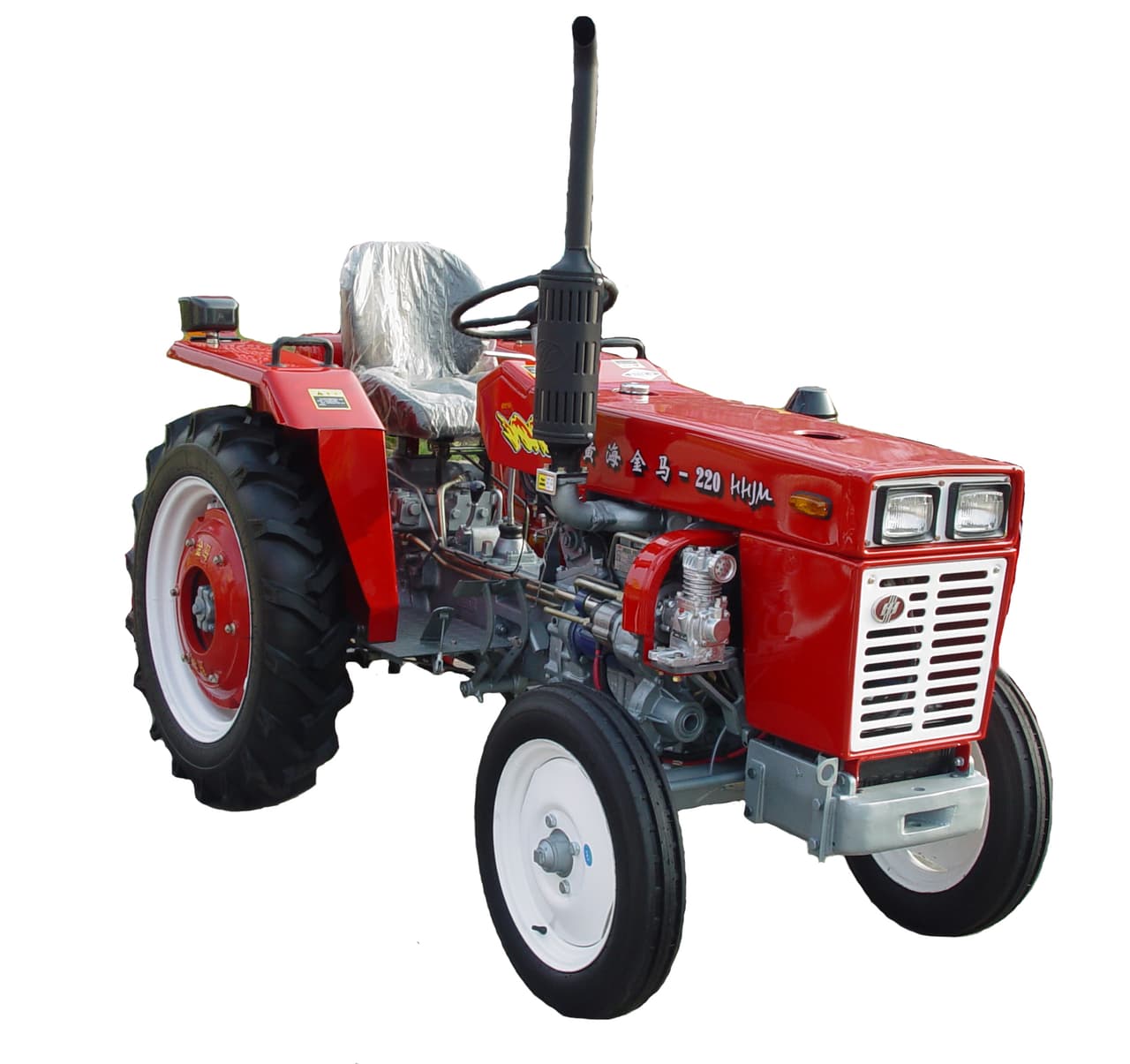

The Jinma JM-220 is a compact 2WD tractor designed for small-scale farming and light agricultural work. It features a 4x2 chassis and a manual transmission with 6 forward gears and 2 reverse gears, giving operators good control over their speed and power.

Under the hood, the JM-220 has a Jinma-made diesel engine with 3 cylinders. This liquid-cooled engine has a displacement of 82.8 cubic inches and produces 22 horsepower at 2300 RPM. The tractor's cooling system holds 10.56 quarts of coolant. With agricultural tires on both front and rear, this tractor is ready for field work. It measures 106.1 inches long, 48.6 inches wide, and 84.7 inches tall, making it easy to maneuver in tight spaces. The JM-220 weighs 2479 pounds and comes equipped with a Category I rear hitch for attaching various implements.

Key Specifications

Power Output: 22 hp (16.4 kW)

Transmission: Manual

Drive Type: 2WD

Operating Weight: 2479 lb (1124 kg)

Fuel Type: Diesel

Image Gallery

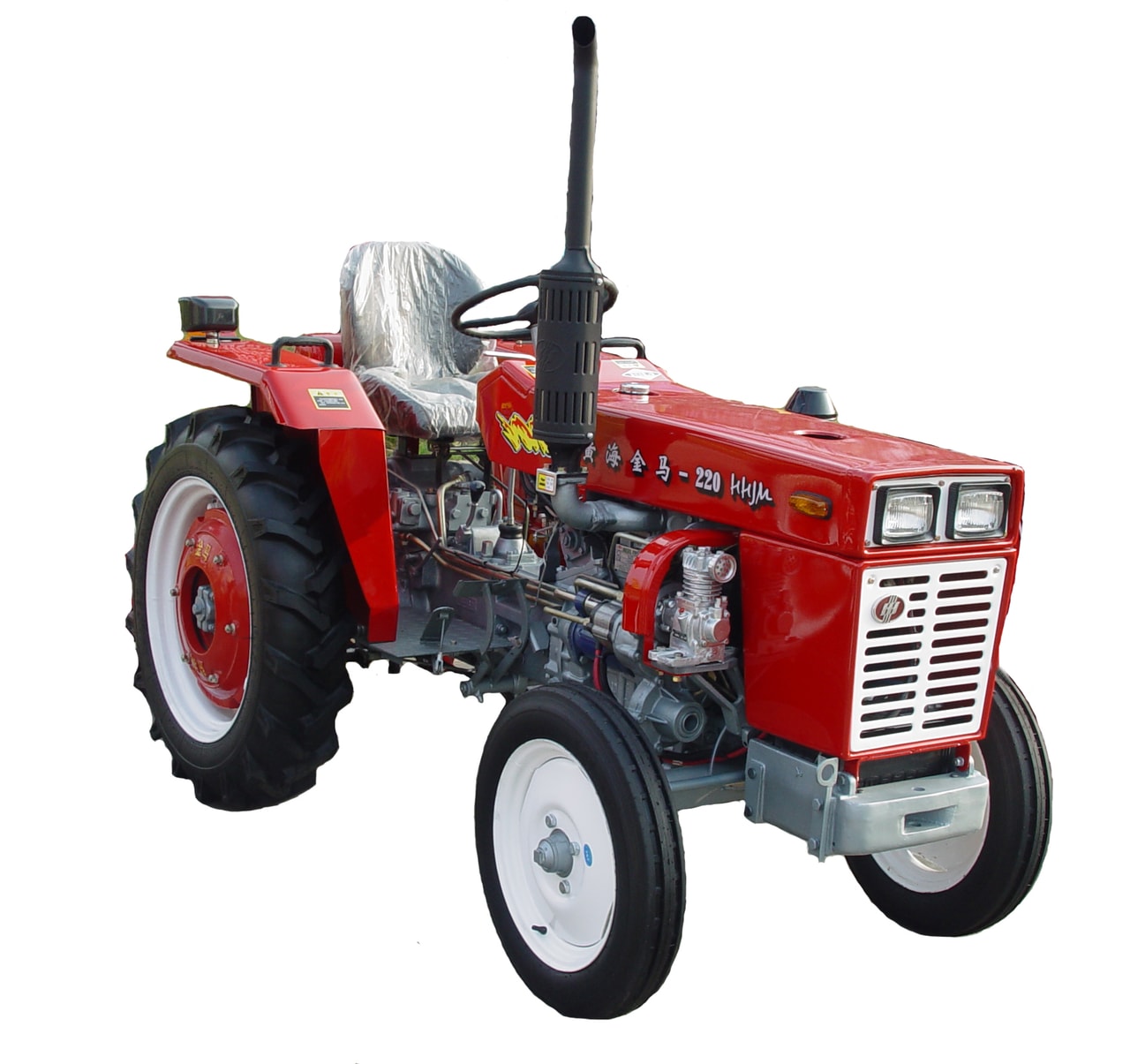

Jinma JM-220 Tractor

Jinma JM-220 vs. Similar Tractors

Power Output

The Power Output for the Jinma JM-220 is Below Average. It is greater than 12% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 6.6K+ tractors in our database)

Operating Weight

The Operating Weight for the Jinma JM-220 is Below Average. It is greater than 17% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 6.4K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Jinma JM-220 is Below Average. It is greater than 15% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Jinma JM-220 is Average. It is greater than 51% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors
