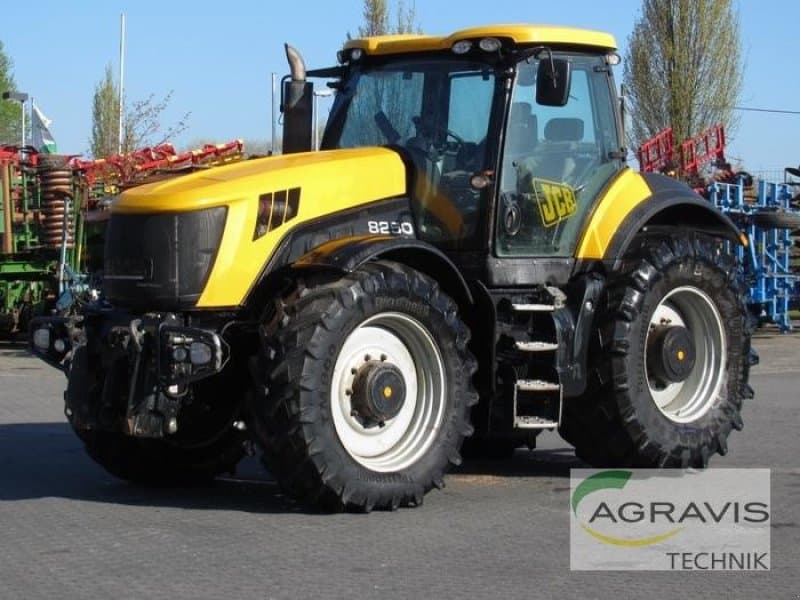

JCB Fastrac 8250

Last Updated: June 2024

Overview

The JCB Fastrac 8250 is a high-performance, four-wheel drive tractor that boasts a powerful Cummins QSC 6-cylinder, liquid-cooled, intercooled turbocharged diesel engine. This hefty engine delivers 260 horsepower and a torque of 869.6 lb-ft at a rated RPM of 2200, making the Fastrac 8250 suitable for a variety of heavy-duty tasks. The continuously variable transmission is convenient, offering infinite forward and reverse gears within a 2-range setup, which allows for seamless speed adjustments on the go. A distinguishing feature of the tractor is its large tire setup, with the flexibility of different tire configurations such as 540/65R34 or 540/65R38 for the front, and 710/70R38 for the rear, providing ample traction and stability. With a substantial operating weight of 23,460 lbs, the tractor remains maneuverable and balanced thanks to its wheelbase of 122.8 inches. The Fastrac 8250 is designed with practicality in mind, evidenced by its ground clearance of 18.5 inches that facilitates operation over uneven terrain. Overall, the JCB Fastrac 8250 is recognized for its robust construction, advanced engine technology, and versatility in various agricultural tasks.
Show more...

Key Specifications

Category: Utility, Four-Wheel Drive

Power Output: 260

Transmission: Continuously variable

Drive Type: 4WD

Operating Weight: 23,460

Fuel Type: Turbocharged diesel

JCB Fastrac 8250 vs. Similar Tractors

Power Output
Excellent
Greater than 93% of similar tractors.
Operating Weight
Poor
Greater than 6% of similar tractors.

Technical Specifications

Engine

Manufacturer
Cummins
Model
QSC
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Turbocharged diesel
Induction Type
Intercooled turbocharged
Cylinders
6
Displacement (ci)
504.5
Bore (in)
4.488
Stroke (in)
5.315
Rated RPM
2200
Power Output (hp)
260

Transmission

Type
Continuously variable
Forward Gears
Infinite (2-range)
Reverse Gears
Infinite (2-range)
Total Gears
-

Dimensions

Length (in)
222.4
Width (in)
100.4
Height (in)
133.5
Operating Weight (lb)
23,460

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 (4WD)
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
III
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
