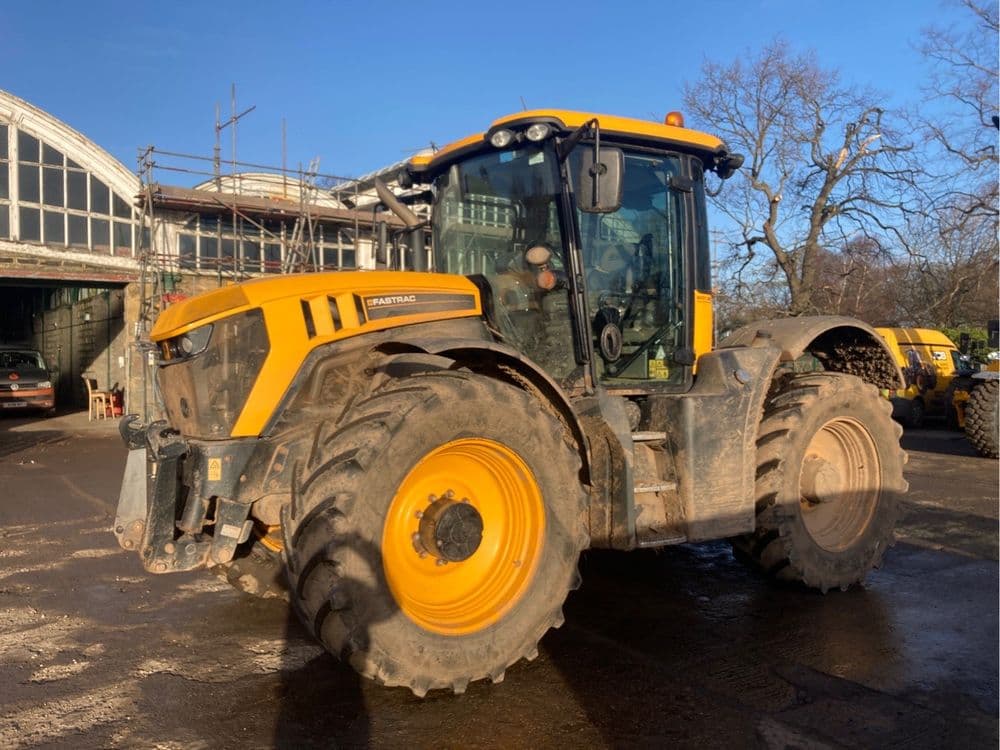

JCB Fastrac 4190

Last Updated: June 2024

Overview

The JCB Fastrac 4190 is a 4WD utility tractor that marks a significant presence in the agriculture industry with its advanced features. The 4190 is powered by an AGCO Power 66AWF turbocharged intercooled diesel engine, providing 189 horsepower with a rated power and a maximum power of 208 horsepower. This model demonstrates JCB’s commitment to performance with a continuously variable transmission (CVT) that offers infinite gearing in two ranges for both forward and reverse directions, catering to various working conditions. The tractor's distinguishing chassis characteristic is 4x4 4WD, which enhances traction and weight distribution for a variety of applications. Measuring 212.6 inches in length, 100.4 inches in width, and a height of 118.1 inches at the cab (or 65.8 inches at the hood), and with an operating weight of 16,700 lbs, the Fastrac 4190 is built to balance power with agility. This model, like many in JCB's lineup, is designed with a focus on versatility and operator comfort, although the specifics about the operator station and other interior features are not specified within the provided data.
Show more...

Key Specifications

Category: Utility

Power Output: 189 (Rated Power EC 97/98) | 208 (Maximum Power EC 97/68)

Transmission: Continuously Variable Transmission (CVT)

Drive Type: 4WD

Operating Weight: 16700

Fuel Type: Diesel

JCB Fastrac 4190 vs. Similar Tractors

Power Output
Excellent
Greater than 100% of similar tractors.
Operating Weight
Average
Greater than 68% of similar tractors.

Technical Specifications

Engine

Manufacturer
AGCO Power
Model
66AWF
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged intercooled
Cylinders
6
Displacement (ci)
402.8
Bore (in)
4.25
Stroke (in)
4.72
Rated RPM
-
Power Output (hp)
189 (Rated Power EC 97/98) | 208 (Maximum Power EC 97/68)

Transmission

Type
Continuously Variable Transmission (CVT)
Forward Gears
Infinite (2-range)
Reverse Gears
Infinite (2-range)
Total Gears
-

Dimensions

Length (in)
212.6
Width (in)
100.4
Height (in)
118.1 (cab) | 65.8 (hood)
Operating Weight (lb)
16700

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Category III
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
