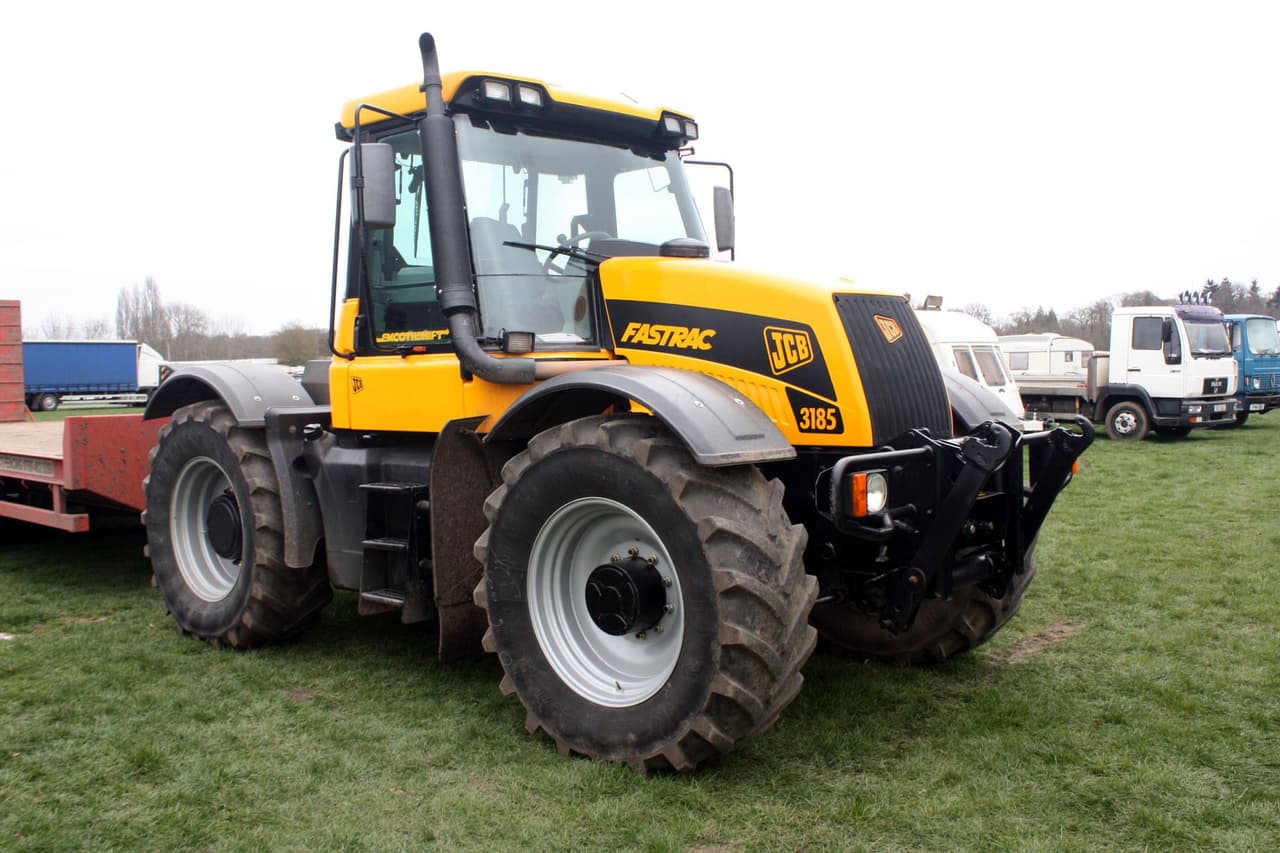

JCB Fastrac 3185

Last Updated: June 2024

Overview

The JCB Fastrac 3185 is a robust and versatile four-wheel drive tractor designed to meet the demands of modern farming practices. With its 188 horsepower Cummins 6 BTA engine, it is well-suited for a variety of heavy-duty tasks. The engine displacement stands at 359 cubic inches, and it operates at a rated RPM of 2400, employing a turbocharged and intercooled diesel system for efficient power delivery. Equipped with a unique 36-speed transmission that includes 36 forward and 12 reverse gears, the tractor is capable of navigating diverse terrain and undertaking multiple operations with ease. The 4x4 4WD chassis, coupled with power-assisted steering, enhances maneuverability across different agricultural settings. The liquid-cooled engine ensures sustained performance under strenuous conditions, and at a weight of 14,916 pounds, the Fastrac 3185 boasts a sturdy and substantial build conducive to stability and durability. The physical dimensions indicate a considerably large profile, measuring 202.8 inches in length and 124.0 inches in height, which may require adequate space for operation and storage.
Show more...

Key Specifications

Category: Utility, Four-Wheel Drive

Power Output: 188

Drive Type: 4WD

Operating Weight: 14916

Fuel Type: Diesel

JCB Fastrac 3185 vs. Similar Tractors

Power Output
Excellent
Greater than 92% of similar tractors.
Operating Weight
Average
Greater than 68% of similar tractors.

Technical Specifications

Engine

Manufacturer
Cummins
Model
6 BTA
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged, intercooled
Cylinders
6
Displacement (ci)
359
Bore (in)
4.016
Stroke (in)
4.724
Rated RPM
2400
Power Output (hp)
188

Transmission

Type
-
Forward Gears
36
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
202.8
Width (in)
-
Height (in)
124
Operating Weight (lb)
14916

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 4WD
Drive Type
4WD
Steering Type
Power Assist
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
