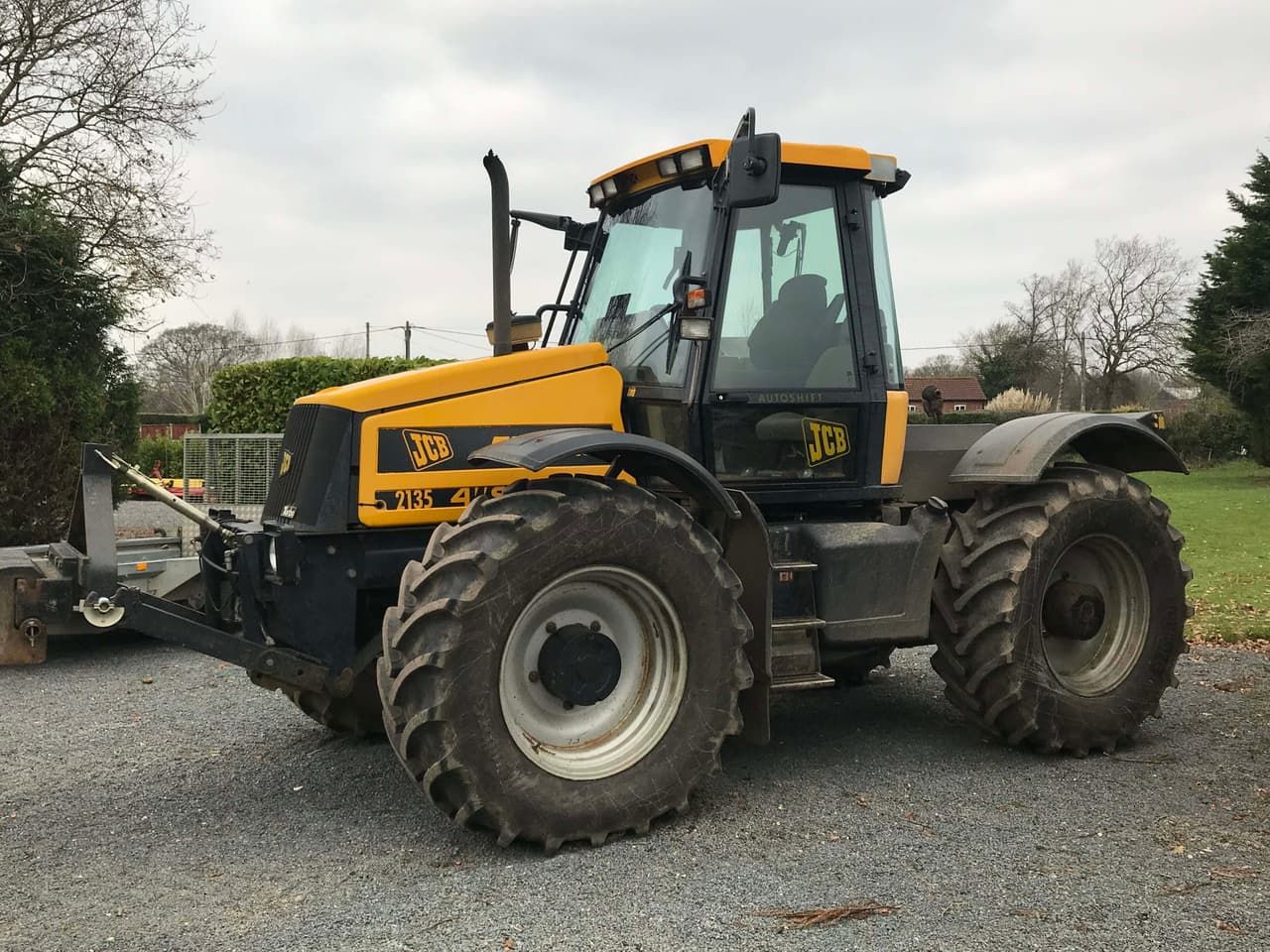

JCB Fastrac 2135

Last Updated: June 2024

Overview

The JCB Fastrac 2135 is a robust and versatile four-wheel-drive tractor renowned for its balance of performance and strength. Its engine, a liquid-cooled turbocharged diesel, is made by Perkins and has a displacement of 365.2 ci producing 148 hp at a rated RPM of 2300. The tractor boasts a 4x4 wheel configuration and operates with a hydrostatic power steering system that ensures smooth maneuverability. Designed with heavy-duty tasks in mind, the Fastrac 2135 features a large wheelbase measuring 109.4 inches, contributing to its stability. The tractor's weight stands at 13,075 lbs, and it rides on radial 480/70R30 tires both at the front and the rear. The machine's transmission system with 54 forward and 18 reverse gears caters to various agricultural operations, contributing to its adaptability in different farming conditions. At an overall length of 200 inches and a height of 113.4 inches, the Fastrac 2135 is designed to handle substantial agricultural tasks while maintaining a relatively compact footprint for its class.
Show more...

Key Specifications

Category: Utility, Four-Wheel Drive

Power Output: 148

Drive Type: 4WD

Operating Weight: 13,075

Fuel Type: Diesel

JCB Fastrac 2135 vs. Similar Tractors

Power Output
Excellent
Greater than 91% of similar tractors.
Operating Weight
Poor
Greater than 5% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
1000-6TW HR5
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
365.2
Bore (in)
3.937
Stroke (in)
5
Rated RPM
2300
Power Output (hp)
148

Transmission

Type
-
Forward Gears
54
Reverse Gears
18
Total Gears
-

Dimensions

Length (in)
200
Width (in)
-
Height (in)
113.4
Operating Weight (lb)
13,075

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Radial
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
