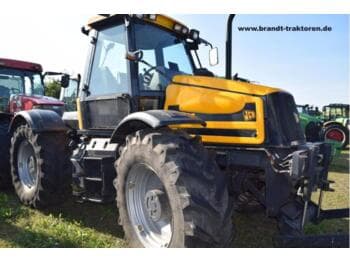

JCB Fastrac 2125

Last Updated: June 2024

Overview

The JCB Fastrac 2125 is a robust four-wheel drive tractor known for its versatility and power. Equipped with a Perkins 1000-6T HR2 turbocharged diesel engine, the tractor offers a substantial 138 horsepower and operates at a rated RPM of 2300. It has a substantial torque of 433.7 lb-ft at 1400 RPM, contributing to its resilient performance under various conditions. The 2125 model also features a unique 4x4 4WD chassis with hydrostatic power steering, enhancing maneuverability and control. The transmission system includes a notable 54 forward and 18 reverse gears, allowing for a wide range of speeds suitable for different farming applications. The tractor's wheelbase is 109.4 inches, supporting its stability, and it has a sizable operating weight of 13,075 lbs, indicating its capability for heavier tasks. Notably, both the front and rear tires are sized at 480/70R30, contributing to even weight distribution and balance. It measures 200.0 inches in length and 113.4 inches in height, making it a prominent presence on any field.
Show more...

Key Specifications

Category: Utility, Four-Wheel Drive

Power Output: 138

Drive Type: 4WD

Operating Weight: 13,075

Fuel Type: Diesel

JCB Fastrac 2125 vs. Similar Tractors

Power Output
Above Average
Greater than 90% of similar tractors.
Operating Weight
Poor
Greater than 5% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
1000-6T HR2
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
365.2
Bore (in)
3.937
Stroke (in)
5
Rated RPM
2300
Power Output (hp)
138

Transmission

Type
-
Forward Gears
54
Reverse Gears
18
Total Gears
-

Dimensions

Length (in)
200
Width (in)
-
Height (in)
113.4
Operating Weight (lb)
13,075

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
