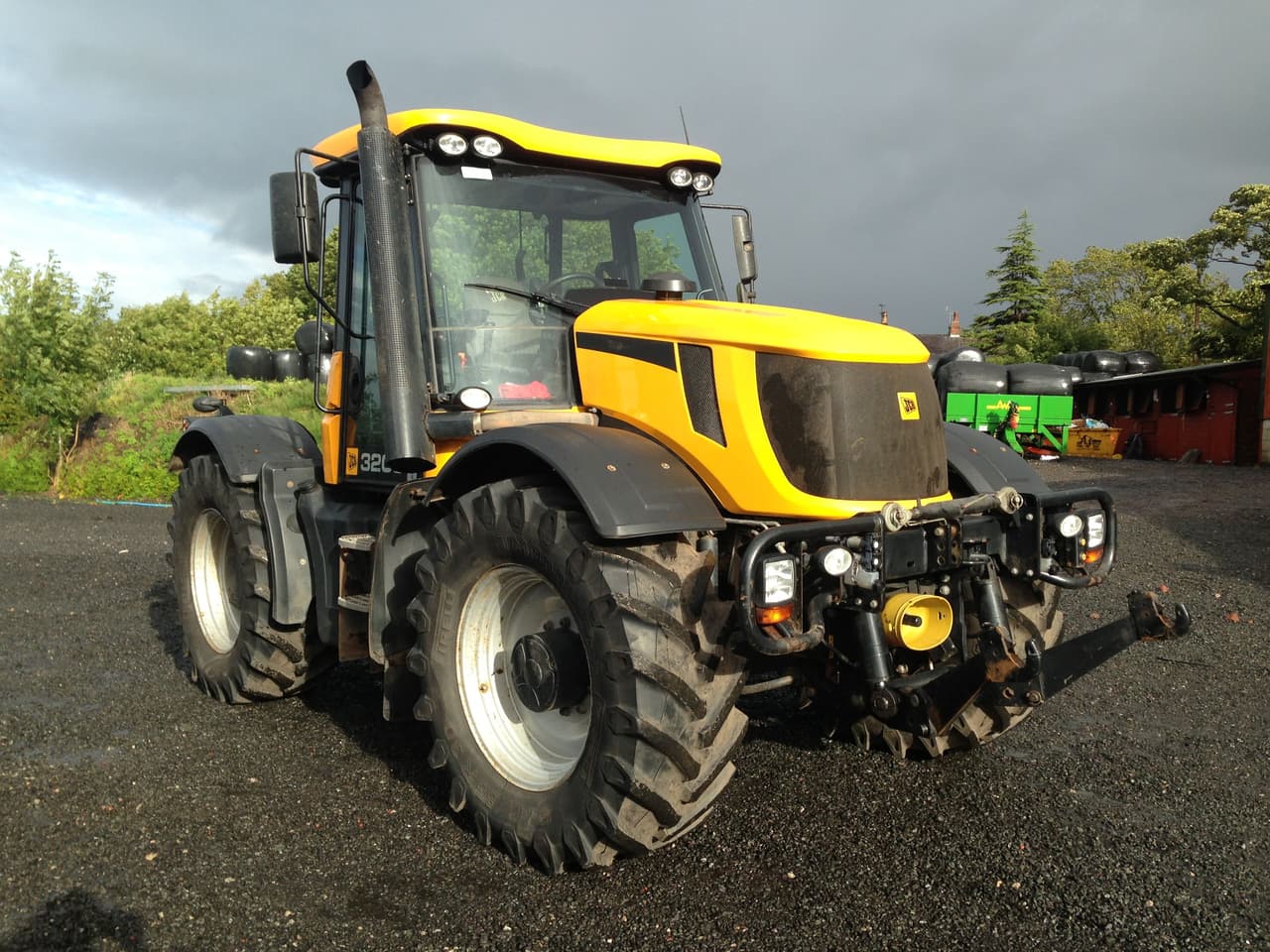

JCB 125-65

Last Updated: June 2024

Key Specifications

Power Output: 121

Transmission: Synchromesh

Operating Weight: 13885

Fuel Type: Diesel

Image Gallery

JCB 125-65 Tractor JCB 125-65 Tractor JCB 125-65 Tractor JCB 125-65 Tractor JCB 125-65 Tractor JCB 125-65 Tractor JCB 125-65 Tractor JCB 125-65 Tractor JCB 125-65 Tractor JCB 125-65 Tractor

Technical Specifications

Engine

Manufacturer
Perkins
Model
1000-6
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Direct injection
Cylinders
6
Displacement (ci)
365.2
Bore (in)
3.94
Stroke (in)
5
Rated RPM
2600
Power Output (hp)
121

Transmission

Type
Synchromesh
Forward Gears
18
Reverse Gears
6
Total Gears
-

Dimensions

Length (in)
227
Width (in)
98
Height (in)
Height (cab): 114 | Height (exhaust): 110
Operating Weight (lb)
13885

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
26.4
Front Tire Diameter (in)
24
Front Tire Width (in)
445/70
Rear Tire Diameter (in)
24
Rear Tire Width (in)
445/70
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
III/IIIN
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Cab (Assumed due to presence of cab height)
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
