Jacobsen G20D

Last Updated: September 2024

Overview

The Jacobsen G20D is a compact tractor built for light to medium-duty work. It has a 2-wheel drive (2WD) system and a gear transmission with 6 forward gears and 2 reverse gears. This setup gives the tractor good control for various tasks around the farm or garden.

Under the hood, the G20D is powered by a Perkins AD3.152 engine. This diesel engine has 3 cylinders and is liquid-cooled, which helps it run smoothly. It has a displacement of 152.7 cubic inches and can produce 45 horsepower. The engine has a bore of 3.6 inches and a stroke of 5 inches. To get the tractor started, it uses an electric starter, making it easy to begin work on cold mornings.

Key Specifications

Power Output: 45 hp (33.6 kW)

Transmission: Gear

Drive Type: 2WD

Fuel Type: Diesel

Image Gallery

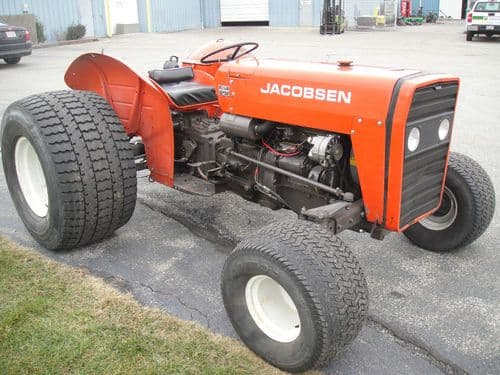

Jacobsen G20D Tractor

Jacobsen G20D vs. Similar Tractors

Power Output

The Power Output for the Jacobsen G20D is Average. It is greater than 37% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 6.6K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Jacobsen G20D is Average. It is greater than 36% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer: Perkins
Model: AD3.152
Cooling Type: Liquid-cooled
Fuel Type: Diesel
Cylinders: 3
Displacement: 153 ci (2.5 L)
Bore: 3.60 in (91.4 mm)
Stroke: 5.00 in (127.0 mm)
Power Output: 45 hp (33.6 kW)
