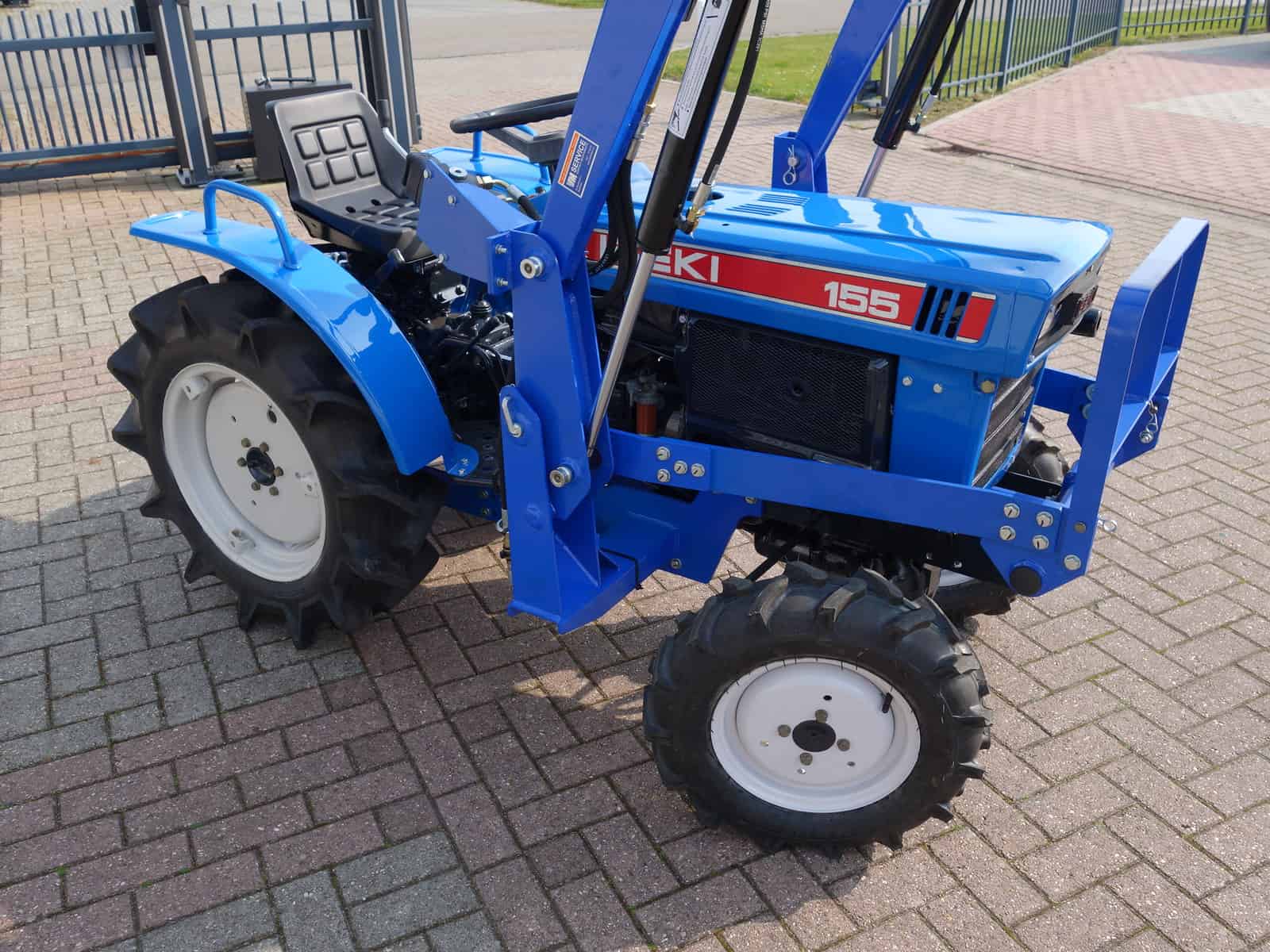

Iseki TX155

Last Updated: June 2024

Overview

The Iseki TX155 is a sub-compact utility tractor that is equipped with a Mitsubishi K3B diesel engine. This engine is liquid-cooled and has 3 cylinders, offering a displacement of 51.8 cubic inches and producing 14.6 horsepower with a rated rpm of 2600. The chassis features a 4x4 MFWD 4WD configuration, and the tractor benefits from a gear-type transmission with 6 forward and 2 reverse gears. With an operating weight of 1157 pounds and dimensions of 78.7 inches in length, 45.3 inches in width, and 48 inches in height, this tractor is designed for varied utility tasks in a sub-compact form factor. It rides atop Ag-type tires, though the exact dimensions of the tires are unknown. This model also offers an electric starter and a rear hitch of Category I, while the specifics of its PTO and hydraulic system are not specified. The Iseki TX155 can thus handle a range of duties with sufficient ground clearance of 9.8 inches for maneuvering over uneven terrain.
Show more...

Key Specifications

Category: Utility, Sub-Compact

Power Output: 14.6

Transmission: Gear

Drive Type: MFWD 4WD

Operating Weight: 1157

Fuel Type: Diesel

Iseki TX155 vs. Similar Tractors

Power Output
Poor
Greater than 2% of similar tractors.
Operating Weight
Poor
Greater than 8% of similar tractors.

Technical Specifications

Engine

Manufacturer
Mitsubishi
Model
K3B
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
3
Displacement (ci)
51.8
Bore (in)
2.677
Stroke (in)
3.071
Rated RPM
2600
Power Output (hp)
14.6

Transmission

Type
Gear
Forward Gears
6
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
78.7
Width (in)
45.3
Height (in)
48
Operating Weight (lb)
1157

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
MFWD 4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
Category I
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
