Iseki TU2100

Last Updated: June 2024

Overview

The Iseki TU2100 is a compact utility tractor that comes equipped with a powerful Isuzu 3AF1 diesel engine, which provides 20.7 horsepower and a torque of 53.2 lb-ft at 1400 RPM. The tractor features a 4x2 2WD chassis and a 12-speed gear transmission, granting it a good level of control for various tasks. The engine possesses a displacement of 71.4 cubic inches and operates at a rated RPM of 2300. Cooling is managed by a liquid-cooled system, ensuring the engine maintains an optimal temperature during operation. The TU2100's operating weight is 1565 pounds for the 2WD version and it has a wheelbase of 53 inches, contributing to its stability. Overall, the tractor's dimensions and engine specifications make it a suitable option for a variety of agricultural tasks in a compact package.

Key Specifications

Category: Utility

Power Output: 20.7

Transmission: Gear

Drive Type: 2WD

Operating Weight: 1565 (2WD)

Fuel Type: Diesel

Image Gallery

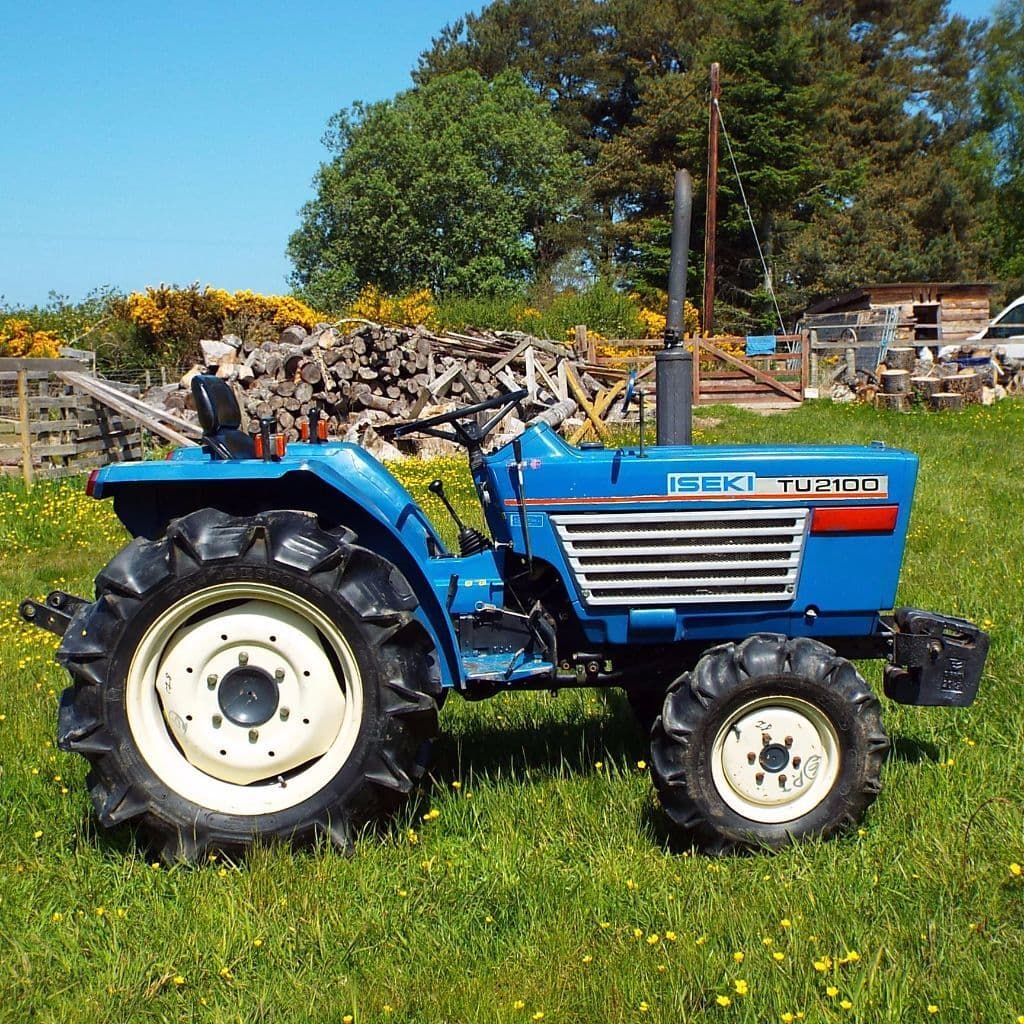

Iseki TU2100 Tractor

Iseki TU2100 vs. Similar Tractors

Power Output

Below Average

Greater than 10% of similar tractors.

Operating Weight

Average

Greater than 68% of similar tractors.

Technical Specifications

Engine

Manufacturer: Isuzu
Model: 3AF1
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: -
Cylinders: 3
Displacement (ci): 71.4
Bore (in): 2.992
Stroke (in): 3.386
Rated RPM: 2300
Power Output (hp): 20.7

Transmission

Type: Gear
Forward Gears: 12
Reverse Gears: 4
Total Gears: -

Dimensions

Length (in): 102.8
Width (in): 45.3 (2WD)
Height (in): Unknown (Height given is "Height (exhaust)")
Operating Weight (lb): 1565 (2WD)

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: -
Coolant Capacity (qts): 7.4
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural
Manufacture - End Year: -
Hitch Type: Unknown (Rear Type indicated is "JIS0" but no specific hitch type provided)
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
