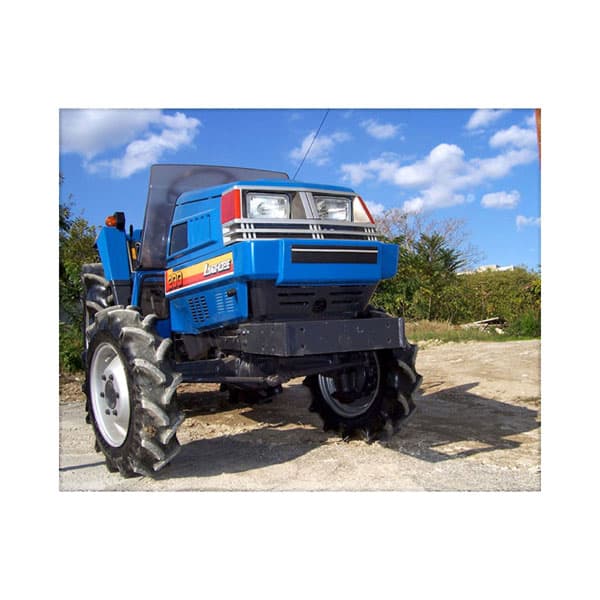

Iseki TU200

Last Updated: June 2024

Overview

The Iseki TU200 is a compact utility tractor that is well-suited for a variety of tasks on small farms or estates. It features a 4x2 2WD chassis, and is powered by an Iseki 3-cylinder liquid-cooled diesel engine, model E3AF1, with 71.4 cubic inches of displacement. With a power output of 19.7 horsepower at 2500 RPM, it provides adequate performance for its size and type. It is equipped with a manual transmission, offering 12 forward and 4 reverse gears, allowing for flexibility in speed and tasks. The tractor operates at an operating weight of approximately 1918 to 2116 pounds and has dimensions of 121.1 inches in length, 47.6 inches in width, and a height of 74 to 74.2 inches. While specific information like the hydraulic system type, PTO speed, and tire size remains unknown, its general specifications suggest it is a reliable and compact machine designed for a variety of utility applications.
Show more...

Key Specifications

Category: Utility

Power Output: 19.7

Transmission: Manual

Drive Type: 2WD

Operating Weight: 1918 (2WD) / 2116 (4WD)

Fuel Type: diesel

Iseki TU200 vs. Similar Tractors

Power Output
Poor
Greater than 9% of similar tractors.
Operating Weight
Excellent
Greater than 94% of similar tractors.

Technical Specifications

Engine

Manufacturer
Iseki
Model
E3AF1
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
diesel
Induction Type
-
Cylinders
3
Displacement (ci)
71.4
Bore (in)
2.992
Stroke (in)
3.386
Rated RPM
2500
Power Output (hp)
19.7

Transmission

Type
Manual
Forward Gears
12
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
121.1
Width (in)
47.6
Height (in)
74 (2WD) / 74.2 (4WD)
Operating Weight (lb)
1918 (2WD) / 2116 (4WD)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard tires (ag)
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric Starter
Brake Type
-
Hydraulic System Type
-
