Iseki TU197

Last Updated: June 2024

Overview

The Iseki TU197 is a versatile tractor, well-suited for a range of agricultural duties. Available in both two-wheel and four-wheel drive configurations, it is powered by an Isuzu E3AE1 diesel engine with three cylinders and a liquid-cooled design, perfect for long work periods while preventing overheating. With a robust 18.7 horsepower at a rated 2500 RPM, it offers sufficient power for various farm tasks. This tractor’s durable build is evident with a weight ranging from 1841 pounds in the 2WD model to 2061 pounds in the 4WD version. The TU197 facilitates ample work with its 12 forward gears and 4 reverse gears but does require manual adjustments due to the unknown type of transmission system. The tractor’s dimensions and ground clearance indicate good maneuverability and capability in diverse terrains.

Key Specifications

Power Output: 18.7

Drive Type: 2WD / 4WD (Assuming both versions exist due to data on standard tires)

Operating Weight: 1841 (2WD) / 2061 (4WD)

Fuel Type: Diesel

Image Gallery

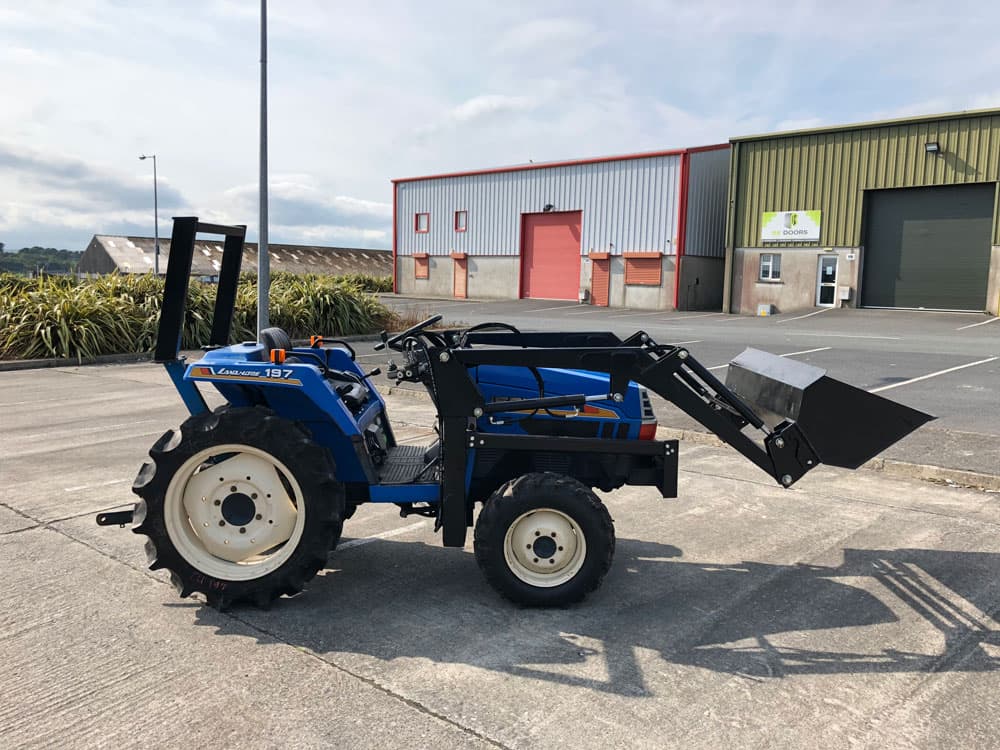

Iseki TU197 Tractor

Technical Specifications

Engine

Manufacturer: Isuzu
Model: E3AE1
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally Aspirated (Assuming due to lack of details on forced induction)
Cylinders: 3
Displacement (ci): 79.1
Bore (in): 3.15
Stroke (in): 3.386
Rated RPM: 2500
Power Output (hp): 18.7

Transmission

Type: -
Forward Gears: 12
Reverse Gears: 4
Total Gears: -

Dimensions

Length (in): 115.6
Width (in): 46.5
Height (in): 54.3
Operating Weight (lb): 1841 (2WD) / 2061 (4WD)

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: 2WD / 4WD (Assuming both versions exist due to data on standard tires)
Steering Type: -
Coolant Capacity (qts): 7.4
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag (Agricultural)
Manufacture - End Year: -
Hitch Type: -
Hitch Category: JIS0 (Assuming this is the standard category)
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
