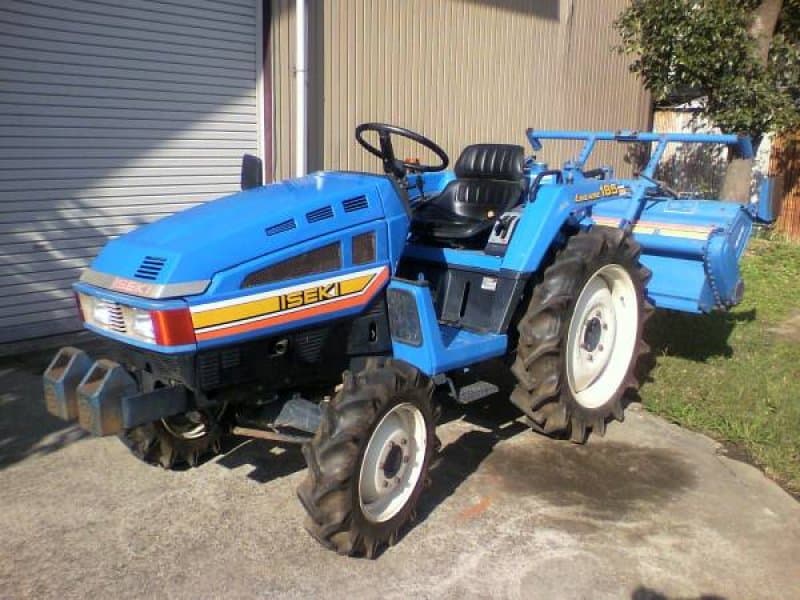

Iseki TU1901

Last Updated: June 2024

Overview

The Iseki TU1901 is a compact utility tractor suitable for a variety of tasks in a small farm, garden, or estate environment. Powered by an Isuzu 3AF1 diesel engine, this tractor has a liquid-cooled 3-cylinder engine with a displacement of 71.4 cubic inches, offering 18.7 horsepower at a rated RPM of 2300. The tractor's chassis is configured at 4x2 2WD, and it has a manual transmission with 12 forward gears and 4 reverse gears, totaling 16 selectable speeds. The Iseki TU1901 maintains an operating weight of 1576 pounds for the 2WD configuration, with standard agriculture tires for the front and rear. Its dimensions are 103 inches in length, 53.2 inches in width, and a height of 76 inches to the top of the exhaust. The 2WD version offers a ground clearance of 13.8 inches. This model provides a straightforward operator experience with a focus on durability and reliability, making it a practical choice for users looking for a no-nonsense working tractor.
Show more...

Key Specifications

Category: Utility

Power Output: 18.7

Transmission: Manual

Drive Type: 2WD

Operating Weight: 1576 (2WD)

Fuel Type: Diesel

Iseki TU1901 vs. Similar Tractors

Power Output
Poor
Greater than 7% of similar tractors.
Operating Weight
Average
Greater than 68% of similar tractors.

Technical Specifications

Engine

Manufacturer
Isuzu
Model
3AF1
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
3
Displacement (ci)
71.4
Bore (in)
2.992
Stroke (in)
3.386
Rated RPM
2300
Power Output (hp)
18.7

Transmission

Type
Manual
Forward Gears
12
Reverse Gears
4
Total Gears
16

Dimensions

Length (in)
103
Width (in)
53.2
Height (in)
76 (Height to exhaust)
Operating Weight (lb)
1576 (2WD)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
-
Coolant Capacity (qts)
23.3
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag)
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
