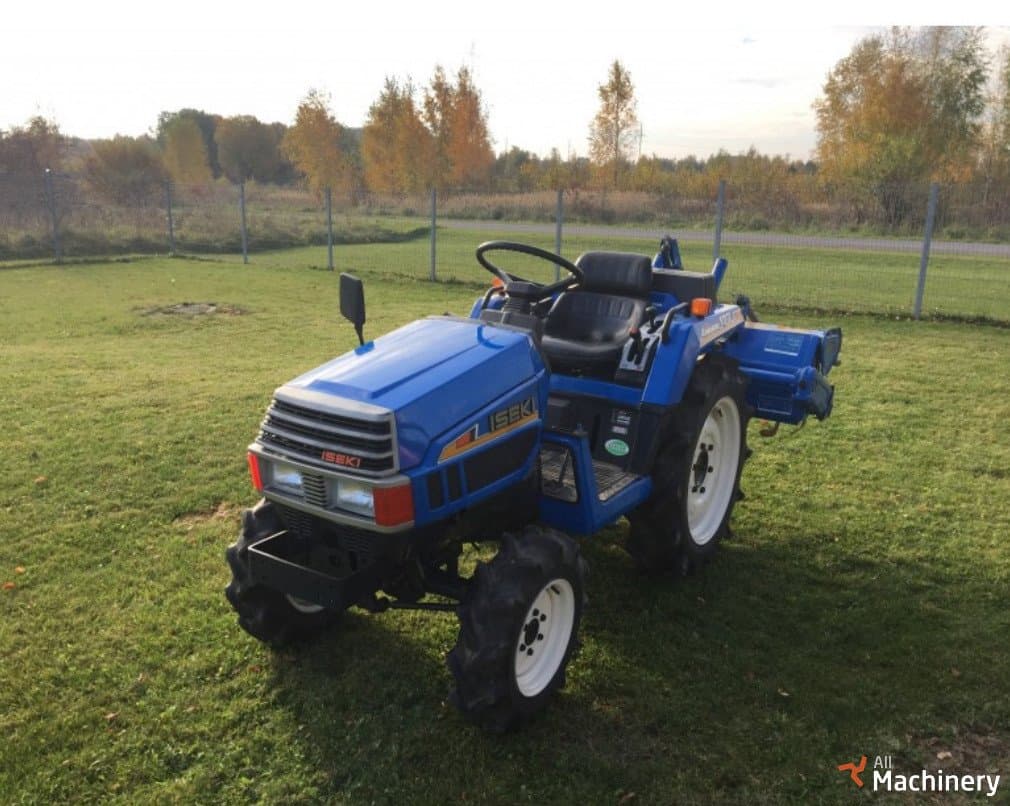

Iseki TU177

Last Updated: June 2024

Overview

The Iseki TU177 is equipped with a Mitsubishi K3D engine that delivers 17.3 horsepower with a displacement of 59.7 cubic inches. The engine is liquid-cooled and operates at a rated RPM of 2500. It starts electrically with a 12-volt system. With a width of 42.9 inches and a height of 53.5 inches, the TU177 tractor has a wheelbase of 53.2 inches (135 cm) and varies in weight, with 1466 pounds for the 2WD variant and 1554 pounds for the 4WD variant. The tractor is designed with a gear transmission, featuring 6 forward and 2 reverse gears. The 2WD and 4WD models offer different tire sizes and ground clearances, indicating versatility for various terrains. The dimensions and the basic engine and transmission details suggest that the TU177 can serve well in a variety of utility roles on a farm or property, given its specifications consist of robust and simple mechanical components.
Show more...

Key Specifications

Power Output: 17.3

Transmission: Gear

Operating Weight: 1466 (2WD), 1554 (4WD)

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Mitsubishi
Model
K3D
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
3
Displacement (ci)
59.7
Bore (in)
2.875
Stroke (in)
3.071
Rated RPM
2500
Power Output (hp)
17.3

Transmission

Type
Gear
Forward Gears
6
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
90.6
Width (in)
42.9
Height (in)
53.5
Operating Weight (lb)
1466 (2WD), 1554 (4WD)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
5.8
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
