Iseki TU1601

Last Updated: June 2024

Overview

The Iseki TU1601 is a compact utility tractor perfect for various tasks in small farming operations or large gardens. It features a 16.3 horsepower Mitsubishi K3C diesel engine that provides adequate power for its size. With a 2WD chassis and a standard 6-speed gear transmission, it caters to a range of activities, offering both ease of use and versatility. Its liquid cooling system ensures the tractor operates efficiently, while the electric starter optimizes convenience during ignition. At a length of 83.9 inches, width of 50.4 inches, and height of 66.9 inches, the TU1601 maintains a compact size. The operating weight of 1168 pounds makes it relatively lightweight and manoeuvrable in various conditions. The agricultural tires complement its capability, especially in soft soil conditions.

Key Specifications

Category: Utility

Power Output: 16.3

Transmission: Gear

Drive Type: 2WD

Operating Weight: 1168 (2WD)

Fuel Type: Diesel

Image Gallery

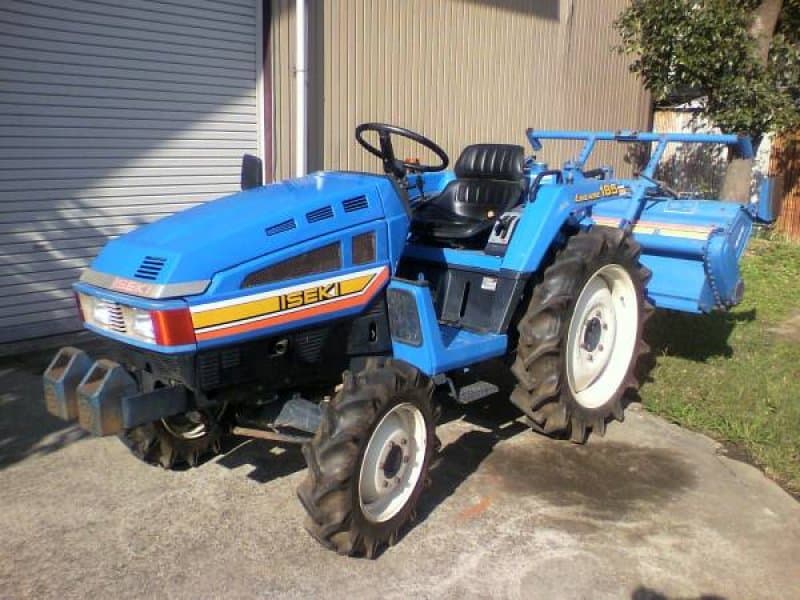

Iseki TU1601 Tractor

Iseki TU1601 vs. Similar Tractors

Power Output

Poor

Greater than 4% of similar tractors.

Operating Weight

Average

Greater than 65% of similar tractors.

Technical Specifications

Engine

Manufacturer: Mitsubishi
Model: K3C
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally aspirated
Cylinders: 3
Displacement (ci): 54.9
Bore (in): 2.756
Stroke (in): 3.071
Rated RPM: 2600
Power Output (hp): 16.3

Transmission

Type: Gear
Forward Gears: 6
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): 83.9
Width (in): 50.4
Height (in): 66.9
Operating Weight (lb): 1168 (2WD)

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: -
Coolant Capacity (qts): 17.4
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural
Manufacture - End Year: -
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric Starter
Brake Type: -
Hydraulic System Type: -
