Iseki TU160

Last Updated: June 2024

Overview

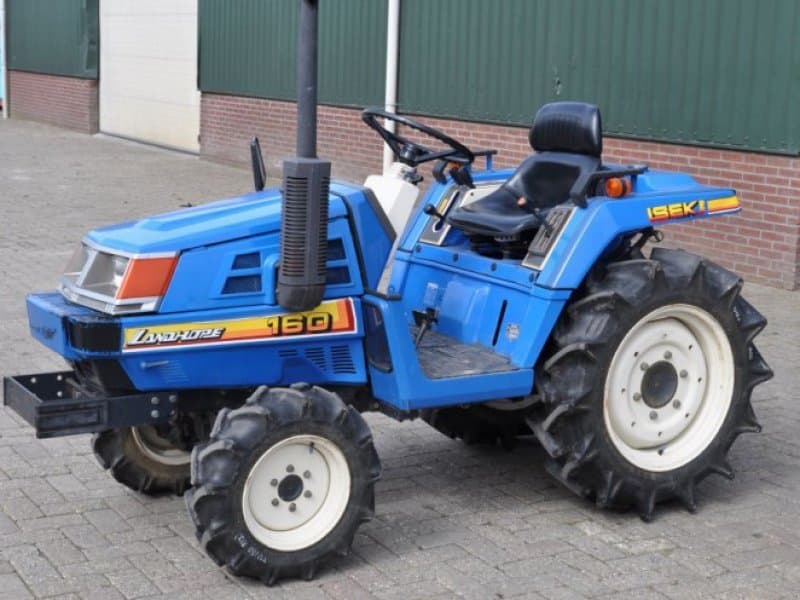

The Iseki TU160 is a compact utility tractor, renowned for its durability and versatile applications. It comes with a robust Mitsubishi K3D diesel engine featuring 3 cylinders and produces about 15.8 horsepower at a rated RPM of 2500. With its 6 forward and 2 reverse gear transmission, it provides ample power and control for various tasks. The tractor is configured with a 2WD chassis, suitable for a range of farming duties, and it is efficient in handling specialized tasks due to its compact design. The engine's cooling efficiency is ensured through a liquid-cooled system, and it has an oil capacity of 2.9 quarts and a coolant capacity of 5.8 quarts. With a wheelbase of 53.2 inches and operating weight of 1510 pounds, the TU160 balances maneuverability and stability effectively. Measuring 96.1 inches in length, 42.9 inches in width, and with a height of 67.3 inches, operators can expect ease of use and good visibility.
Show more...

Key Specifications

Category: Utility

Power Output: 15.8

Transmission: Gear

Drive Type: 2WD

Operating Weight: 1510

Fuel Type: Diesel

Iseki TU160 vs. Similar Tractors

Power Output
Poor
Greater than 4% of similar tractors.
Operating Weight
Below Average
Greater than 11% of similar tractors.

Technical Specifications

Engine

Manufacturer
Mitsubishi
Model
K3D
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
3
Displacement (ci)
59.7
Bore (in)
2.875
Stroke (in)
3.071
Rated RPM
2500
Power Output (hp)
15.8

Transmission

Type
Gear
Forward Gears
6
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
96.1
Width (in)
42.9
Height (in)
67.3
Operating Weight (lb)
1510

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
-
Coolant Capacity (qts)
5.8
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag)
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
